DATASHEET
Single-Stage Filters FN 2010
General Purpose AC/DC EMI Filter
2020
05 Nov 2019
EMC/EMI Products
FN 2010: General Purpose AC/DC EMI Filter
  • Rated currents from 1 to 60 A
  • General purpose filtering performance
  • Optional medical versions (B type)
  • Optional safety versions (A type)
  • Optional enhanced performance versions
  • Optional DC optimized versions

Performance indicators

Technical specifications

Rated voltage*

250 VAC, 50/60 Hz; 250 VDC

Operating frequency

DC to 400 Hz

Rated currents

1 to 60 A @ 40°C max.

High potential test voltage

P –> PE 2000 VAC for 2 sec (equiv. cap <88 nF)
P –> PE 2550 VDC for 2 sec (equiv. cap >88 nF)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1100 VDC for 2 sec

Temperature range (operation and storage)

-25 °C to +100 °C (25/100/21)**

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

Flammability corresponding to

UL 94 V-2 or better

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Altitude

2000m (above derating applies)**

MTBF @ 40°C/230 V (Mil-HB-217F)

1,250,000 hours
3,200,000 hours (B types)

Approvals

Features and benefits

  • FN 2010 filters are designed for easy and fast chassis mounting
  • FN 2010 filters are available as B versions without Y-capacitors for medical applications as well as A version with low capacitance for safety critical applications with necessity for low leakage currents
  • FN 2010 filters are also available as enhanced performance and DC optimized versions. With higher attenuation in very compact housing (M, N1,N types)
  • All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
  • FN 2010 filters can be used to cover a broad range of usage and they offer a good size/amperage ratio
  • Various terminal options allow you to select the desired connection style

Typical applications

  • Electrical and electronic equipment
  • Consumer goods
  • Household equipment
  • Medical equipment
  • Office automation equipment
  • Datacom equipment

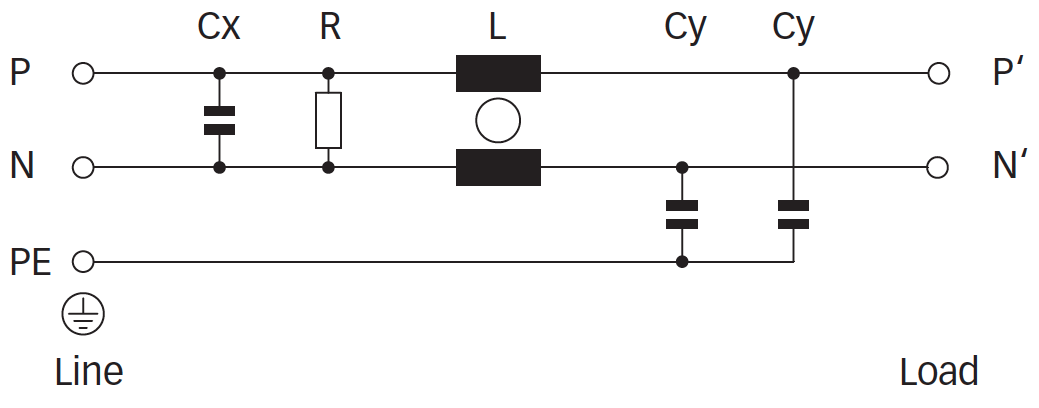

Typical electrical schematic

Filter selection table

Filter*Rated current
Leakage current**Inductance***Capacitance***Resistance***Input/OutputWeight
@ 40°C (25°C)@ 250 VAC/50 HzLCxCyRconnections
(@ 120 VAC/60 Hz)
[A][mA][mH][μF][nF][kΩ][g]
FN 2010-1-..1 (1.15)0.66 (0.38)120.14.71000-06-0765
FN 2010-3-..3 (3.45)0.66 (0.38)2.50.14.71000-06-0765
FN 2010-6-..6 (6.9)0.66 (0.38)10.14.71000-06-0765
FN 2010-10-..10 (11.5)0.66 (0.38)0.80.14.71000-06-0785
FN 2010-12-..12 (13.8)0.66 (0.38)0.70.14.71000-06-0785
FN 2010-16-..16 (18.4)0.66 (0.38)0.70.14.71000-06-07-08140
FN 2010-20-..20 (23)0.66 (0.38)0.60.14.71000-06-07-08210
FN 2010-30-0830 (34.5)0.79 (0.46)0.70.47101000-08470
FN 2010-60-2460 (69)0.79 (0.46)11.510330-241100
FN 2010 A-1-..1 (1.15)0.07 (0.04)120.10.471000-06-0765
FN 2010 A-3-..3 (3.45)0.07 (0.04)2.50.10.471000-06-0765
FN 2010 A-6-..6 (6.9)0.07 (0.04)10.10.471000-06-0765
FN 2010 A-10-..10 (11.5)0.07 (0.04)0.80.10.471000-06-0785
FN 2010 A-12-..12 (13.8)0.07 (0.04)0.70.10.471000-06-0785
FN 2010 A-16-..16 (18.4)0.07 (0.04)0.70.10.471000-06-07-08140
FN 2010 A-20-..20 (23)0.07 (0.04)0.60.10.471000-06-07-08210
FN 2010 A-30-0830 (34.5)0.07 (0.04)0.70.470.471000-08470
FN 2010 A-60-2460 (69)0.07 (0.04)11.50.47330-241100
FN 2010 B-1-..1 (1.15)0.00120.11000-06-0765
FN 2010 B-3-..3 (3.45)0.002.50.11000-06-0765
FN 2010 B-6-..6 (6.9)0.0010.11000-06-0765
FN 2010 B-10-..10 (11.5)0.000.80.11000-06-0785
FN 2010 B-12-..12 (13.8)0.000.70.11000-06-0785
FN 2010 B-16-..16 (18.4)0.000.70.11000-06-07-08140
FN 2010 B-20-..20 (23)0.000.60.11000-06-07-08210
FN 2010 B-30-0830 (34.5)0.000.70.471000-08470
FN 2010 B-60-2460 (69)0.0011.5330-241100
Enhanced performance
FN 2010 N1-1-061 (1.15)5.34 (3.08)120.1681000-0670
FN 2010 N1-3-063 (3.45)5.34 (3.08)2.50.1681000-0670
FN 2010 N1-6-066 (6.9)5.34 (3.08)10.1681000-0670
FN 2010 N1-10-0610 (11.5)5.34 (3.08)0.80.1681000-0685
FN 2010 N1-12-0612 (13.8)3.69 (2.13)0.70.1471000-0685
FN 2010 M-16-0616 (18.4)3.69 (2.13)0.70.1471000-06-08140
FN 2010 M-20-..20 (23)3.69 (2.13)0.60.1471000-06-08220
FN 2010 N-30-0830 (34.5)7.85 (4.52)0.70.471001000-08400
FN 2010 N-60-2460 (69)7.85 (4.52)11.5100330-241120

*** To compile a complete part number, please replace the -.. with the required I/O connection style (e.g. FN 2010-30-08, FN 2010B-10-06). The different letters code the used Cy values in the filter type (A = 0.47nF; M = 47nF; N1 = 47nF; N = 100nF)
*** Maximum leakage under usual AC operating conditions (acc. IEC 60939-3). Note: if the neutral line is interrupted, worst case leakage could reach twice this level.
*** Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

Typical filter attenuation

Per CISPR 17; A=50 Ω/50 Ω sym; B=50 Ω/50 Ω asym

1 A: Standard type

A type

B type

Enhanced performance

3 A: Standard type

A type

B type

Enhanced performance

6 A: Standard type

A type

B type

Enhanced performance

10 A: Standard type

A type

B type

Enhanced performance

12 A: Standard type

A type

B type

Enhanced performance

16 A: Standard type

A type

B type

Enhanced performance

20 A: Standard type

A type

B type

Enhanced performance

30 A: Standard type

A type

B type

Enhanced performance

60 A: Standard type

A type

B type

Enhanced performance

Product Selector

Mechanical data

Connection style -06, 1 to 12 A types

Connection style -06, 16 and 20 A types

Connection style -07, 1 to 12 A types (same dimensions as style -06)

Connection style -07, 16 and 20 A types (same dimensions as style -06)

Connection style -08, 16 and 20 A types

Connection style -08, 30 A types

Connection style -24

Dimensions

1 A3 A6 A10 A12 A16 A20 A30 A60 ATolerances
A64646464647185113.5 ±1105 ±1±0.5
B353535353546.65457.5 ±1145.9 ±1±0.5
C24.324.324.329.329.329.330.345.4 ±157.6 ±1±0.5
D43.543.543.543.543.550.564.894 ±184.5 ±1±0.5
E32.532.532.532.532.544.549.85699.5±0.5
F5454545454617510395±0.3
G212121212121272540±0.2
H9.39.39.39.39.310.812.312.419.6±0.5
I15.315.315.315.315.319.320.832.410.1±0.5
J21.821.821.821.821.820.119.915.542.25±0.5
K5.35.35.35.35.35.35.34.44.4
L6.36.36.36.36.36.36.366
M0.70.70.70.70.70.70.711.2 ±0.3
Connection style -06
N6.3 x 0.86.3 x 0.86.3 x 0.86.3 x 0.86.3 x 0.86.3 x 0.86.3 x 0.8
Connection style -07
O8.38.38.38.38.38.38.3±0.5
P21.821.821.821.821.81414.9±0.5
AWG type wireAWG 20AWG 20AWG 18AWG 18AWG 16AWG 16AWG 14
Wire length140140140140140140140+5
Connection style -08
NM4M4M4
Recommended torque (Nm) 1.2 - 1.31.2 - 1.31.2 - 1.3
Earth terminal1.5 - 1.71.5 - 1.71.5 - 1.7
Connection style -24
NM6
Q51±0.2
Recommended torque (Nm)3.5 - 4
Earth Terminal3.5 - 4

Please visit www.schaffner.com to find more details on filter connections.
