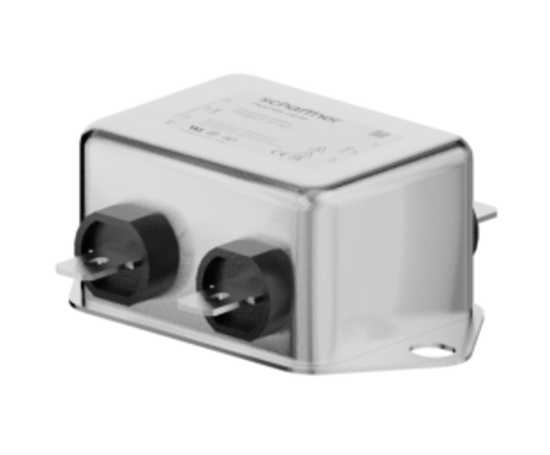

FN2010B-1-06

1 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2010B-1-06

SAP Number

801007

Product Family

FN2010

Description

1 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 1
Ambient temperature () 40
Electric
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Resistance () 1000
Attenuation
Inductance L1 () 12
Capacitance Cx1 () 0.1
CM attenuation @ 150kHz () 21
DM attenuation @ 150kHz () 22
Mechanic
Length () 43.5
Width () 32.5
Height () 24.3
Volume () 34
Weight () 65

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 64
B (mm) 35
C (mm) 24.3
D (mm) 43.5
E (mm) 32.5
F (mm) 54
G (mm) 21
H (mm) 9.3
I (mm) 15.3
J (mm) 21.8
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 21.8
