| General | |
|---|---|
| Voltage AC (V) | 250 |
| Nominal Frequency (Hz) | 60 |
| Rated Current @ambient (A) | 16 |
| Ambient temperature (°C) | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2010M-16-06
SAP Number
817044
Product Family
FN2010
Description

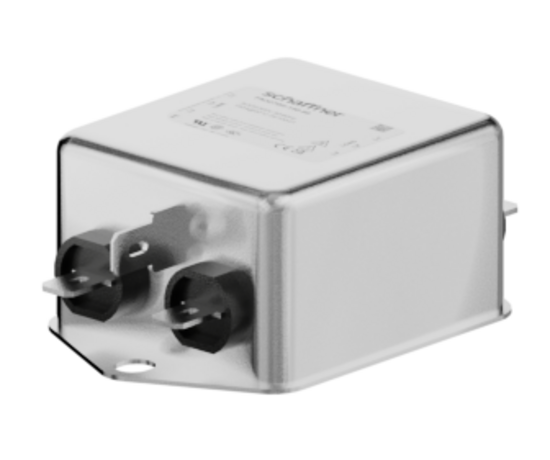

16 A EMC filter with fast-ons
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 (A) | 3.4 |
| Input terminal | 06 - faston 6.3x0.8/sold lug |
| Output terminal | 06 - faston 6.3x0.8/sold lug |
| Resistance (kΩ) | 1000 |
| Attenuation | |
|---|---|
| Inductance L1 (mH) | 0.7 |
| Capacitance Cx1 (µF) | 0.1 |
| Capacitance Cy1 (nF) | 47 |
| CM attenuation @ 150kHz (dBel) | 36 |
| Mechanic | |
|---|---|
| Length (mm) | 50.5 |
| Width (mm) | 44.5 |
| Height (mm) | 29.3 |
| Volume (cm3) | 66 |
| Weight (g) | 140 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) (nF) | 71 |
| B (mm) | 46.6 |
| C (mm) | 29.3 |
| D (mm) | 50.5 |
| E (mm) | 44.5 |
| F (mm) | 61 |
| G (mm) | 21 |
| H (mm) | 10.8 |
| I (mm) | 19.3 |
| J (mm) | 20.1 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | 6.3 x 0.8 |
| O (mm) | 8.3 |
| P (mm) | 14 |
