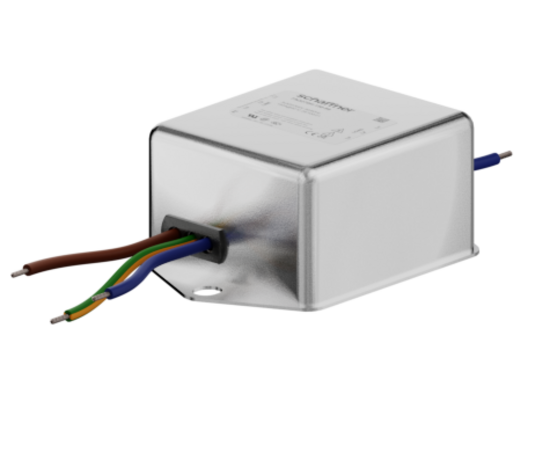

FN2010-20-07

20 A EMC filter with wire leads

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2010-20-07

SAP Number

801261

Product Family

FN2010

Description

20 A EMC filter with wire leads

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 20
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.66
Input terminal 07 - wire
Output terminal 07 - wire
Resistance () 1000
Attenuation
Inductance L1 () 0.6
Capacitance Cx1 () 0.1
Capacitance Cy1 () 4.7
CM attenuation @ 150kHz () 15
Mechanic
Length () 64.8
Width () 49.8
Height () 30.3
Volume () 98
Weight () 240

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 85
B (mm) 54
C (mm) 30.3
D (mm) 64.8
E (mm) 49.8
F (mm) 75
G (mm) 27
H (mm) 12.3
I (mm) 20.8
J (mm) 19.9
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 14.9
