FN2010A-12-06

12 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2010A-12-06

SAP Number

804812

Product Family

FN2010

Description

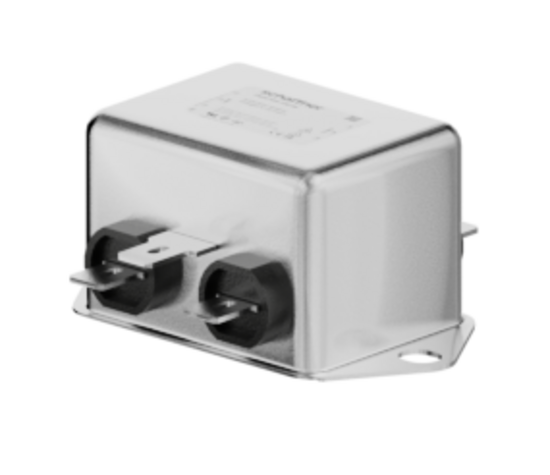

12 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 12
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.07
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Resistance () 1000
Attenuation
Inductance L1 () 0.7
Capacitance Cx1 () 0.1
Capacitance Cy1 () 0.47
Mechanic
Length () 43.5
Width () 32.5
Height () 29.3
Volume () 41
Weight () 105

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 64
B (mm) 35
C (mm) 24.3
D (mm) 43.5
E (mm) 32.5
F (mm) 54
G (mm) 21
H (mm) 9.3
I (mm) 15.3
J (mm) 21.8
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 21.8
