General | |
---|---|
Voltage AC () | 250 |
Nominal Frequency () | 50 |
Rated Current @ambient () | 3 |
Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2010B-3-06
SAP Number
800799
Product Family
FN2010
Description

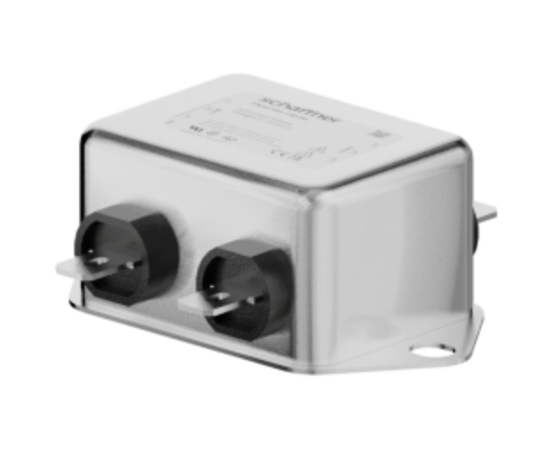

3 A EMC filter with fast-ons
Type
Chassis mount
Application
General
Phases
1 Phase
Electric | |
---|---|
Resistance () | 1000 |
Attenuation | |
---|---|
Inductance L1 () | 2.5 |
Capacitance Cx1 () | 0.1 |
CM attenuation @ 150kHz () | 7 |
DM attenuation @ 150kHz () | 8 |
Mechanic | |
---|---|
Length () | 43.5 |
Width () | 32.5 |
Height () | 24.3 |
Volume () | 34 |
Weight () | 60 |
Schaffner schemes
Mechanical Data Image
Dimensions | |
---|---|
A (mm) () | 64 |
B (mm) | 35 |
C (mm) | 24.3 |
D (mm) | 43.5 |
E (mm) | 32.5 |
F (mm) | 54 |
G (mm) | 21 |
H (mm) | 9.3 |
I (mm) | 15.3 |
J (mm) | 21.8 |
K (mm) | 5.3 |
L (mm) | 6.3 |
M (mm) | 0.7 |
M (mm) | 6.3 x 0.8 |
O (mm) | 8.3 |
P (mm) | 21.8 |
