FN2010-16-07

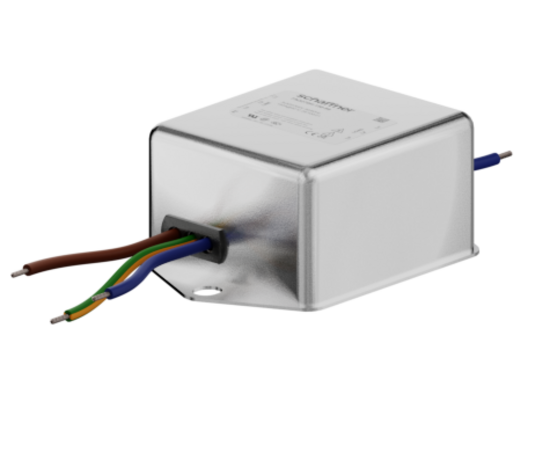

16 A EMC filter with wire leads

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2010-16-07

SAP Number

800009

Product Family

FN2010

Description

16 A EMC filter with wire leads

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 16
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.66
Input terminal 07 - wire
Output terminal 07 - wire
Resistance () 1000
Attenuation
Inductance L1 () 0.7
Capacitance Cx1 () 0.1
Capacitance Cy1 () 4.7
CM attenuation @ 150kHz () 16
Mechanic
Length () 50.5
Width () 44.5
Height () 29.3
Volume () 66
Weight () 140

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 71
B (mm) 46.6
C (mm) 29.3
D (mm) 50.5
E (mm) 44.5
F (mm) 61
G (mm) 21
H (mm) 10.8
I (mm) 19.3
J (mm) 20.1
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 14
