FN2090FN2090

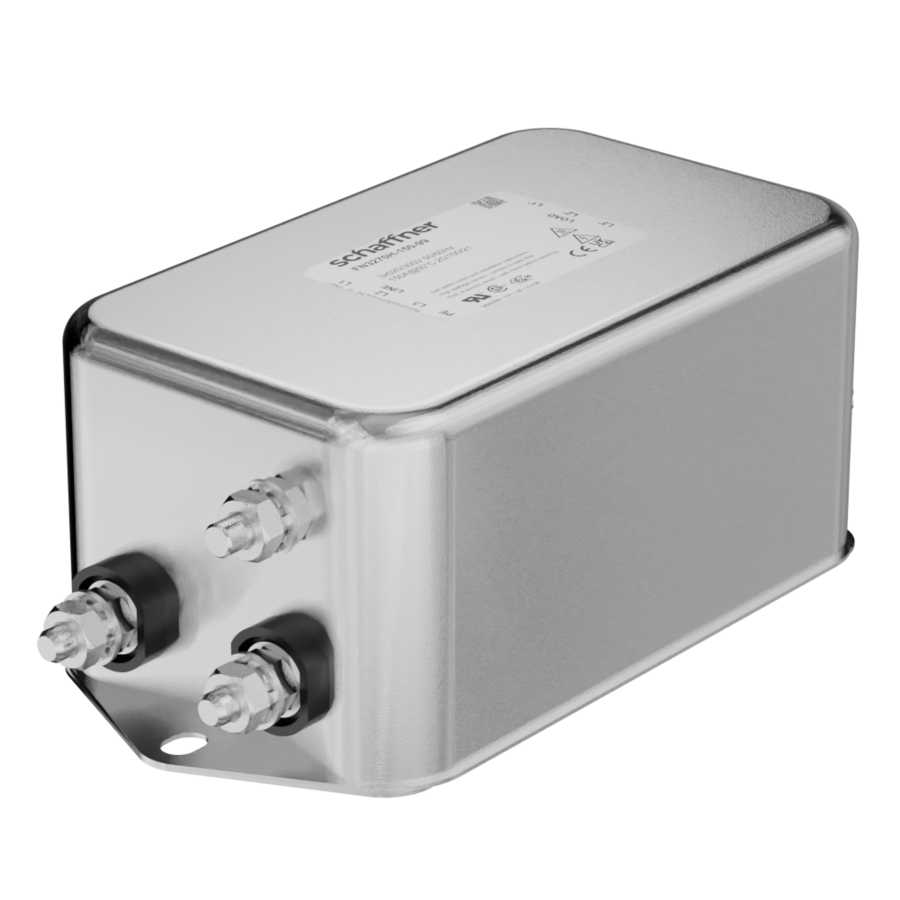

Very High Performance Single-Phase Filters FN2090

Multi-stage AC/DC EMI Filter with Excellent Attenuation Performance

Product Overview

Downloads

Technical Data Sheet
EPLAN
CAD & CAE
CAD-Files
Declaration of Conformity -40°C FN20XX / FN24XX / FN3XX
RoHS
CE FN20XX / FN3XX
SCCR Chassis-Mount-Filters
Safety and Installation Guidelines
REACH
RoHS-China
Contact Us
FN2090

Multi-stage AC/DC EMI Filter with Excellent Attenuation Performance

  • Rated currents from 1 to 30 A
  • Two-stage filter
  • Very high differential and common-mode attenuation
  • Optional medical versions (B type)
  • Optional safety versions (A type)
  • Optional enhanced performance versions
  • Optional overvoltage protection (Z type)

Articles

Article Rated Current @ambient Leakage current IEC60939 Power Loss Inductance Capacitance Resistance Input/Output connections (Nm) Distribution stock Compare Read More
L1 Cx1 (µF) Cy1 (nF) Cy2 (nF) Input terminal Output terminal
FN2090-1-06 FN2090-1-06 10.451.8200.222.2168006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-1-07 FN2090-1-07 10.451.8200.222.2168007 - wire07 - wire
FN2090-3-06 FN2090-3-06 30.453.7140.332.2147006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-4-06 FN2090-4-06 40.456.4140.332.2147006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-4-07 FN2090-4-07 40.456.4140.332.2147007 - wire07 - wire
FN2090-6-06 FN2090-6-06 60.617.180.473.3133006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-6-07 FN2090-6-07 60.617.180.473.3133007 - wire07 - wire
FN2090-6-08 FN2090-6-08 60.617.180.473.3133008 - M4 screw terminal08 - M4 screw terminal
FN2090-8-06 FN2090-8-06 80.617.780.470.470.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-10-06 FN2090-10-06 100.618.480.473.3133006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-10-07 FN2090-10-07 100.618.480.473.3133007 - wire07 - wire
FN2090-10-08 FN2090-10-08 100.618.480.473.3133008 - M4 screw terminal08 - M4 screw terminal
FN2090-12-06 FN2090-12-06 120.9312.14110122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-12-08 FN2090-12-08 120.9312.14110122008 - M4 screw terminal08 - M4 screw terminal
FN2090-16-06 FN2090-16-06 160.9310.74110122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-16-07 FN2090-16-07 160.9310.74110122007 - wire07 - wire
FN2090-20-06 FN2090-20-06 200.938.22.7110122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090-20-08 FN2090-20-08 200.938.22.7110122008 - M4 screw terminal08 - M4 screw terminal
FN2090-30-08 FN2090-30-08 300.9310.11.5110122008 - M4 screw terminal08 - M4 screw terminal
FN2090A-1-06 FN2090A-1-06 10.141.8200.220.470.4768006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-3-06 FN2090A-3-06 30.143.7140.330.470.4747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-4-06 FN2090A-4-06 40.146.4140.330.470.4747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-6-06 FN2090A-6-06 60.147.180.470.470.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-8-06 FN2090A-8-06 80.147.780.470.470.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-8-07 FN2090A-8-07 88.280.470.470.4733007 - wire07 - wire
FN2090A-10-06 FN2090A-10-06 100.148.480.470.470.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-12-06 FN2090A-12-06 120.1412.1410.470.4722006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-16-06 FN2090A-16-06 160.1410.7410.470.4722006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-20-06 FN2090A-20-06 200.148.22.710.470.4722006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090A-20-08 FN2090A-20-08 200.148.22.710.470.4722008 - M4 screw terminal08 - M4 screw terminal
FN2090AZ-20-06 FN2090AZ-20-06 200.142.710.470.4722006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-1-06 FN2090B-1-06 101.8200.2268006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090BZ-1-06 FN2090BZ-1-06 101.8200.2268006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-3-06 FN2090B-3-06 303.7140.3347006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090BZ-3-06 FN2090BZ-3-06 303.7140.3347006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-4-06 FN2090B-4-06 406.4140.3347006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-4-07 FN2090B-4-07 406.4140.3347007 - wire07 - wire
FN2090BZ-4-06 FN2090BZ-4-06 406.4140.3347006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-6-06 FN2090B-6-06 607.180.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090BZ-6-06 FN2090BZ-6-06 607.180.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-8-06 FN2090B-8-06 807.780.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090BZ-8-06 FN2090BZ-8-06 807.780.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-10-06 FN2090B-10-06 1008.480.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-10-07 FN2090B-10-07 1008.480.4733007 - wire07 - wire
FN2090B-1-07 FN2090B-1-07 101.8200.2268007 - wire07 - wire
FN2090BZ-10-06 FN2090BZ-10-06 1008.480.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-12-06 FN2090B-12-06 12012.14122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090BZ-12-06 FN2090BZ-12-06 12012.14122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-16-06 FN2090B-16-06 16010.74122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-16-07 FN2090B-16-07 16010.74122007 - wire07 - wire
FN2090BZ-16-06 FN2090BZ-16-06 16010.74122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-20-06 FN2090B-20-06 2008.22.7122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-20-08 FN2090B-20-08 2008.22.7122008 - M4 screw terminal08 - M4 screw terminal
FN2090BZ-20-06 FN2090BZ-20-06 2008.22.7122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090B-30-08 FN2090B-30-08 30010.11.5122008 - M4 screw terminal08 - M4 screw terminal
FN2090BZ-30-08 FN2090BZ-30-08 30010.11.5122008 - M4 screw terminal08 - M4 screw terminal
FN2090H1H1-16-06 FN2090H1H1-16-06 161.9806 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090KK-1-06 FN2090KK-1-06 13.181.8200.22222268006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090KK-1-07 FN2090KK-1-07 13.461.8200.22222268007 - wire07 - wire
FN2090LL-10-06 FN2090LL-10-06 104.778.480.47333333006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090LL-10-08 FN2090LL-10-08 104.778.480.47333333008 - M4 screw terminal08 - M4 screw terminal
FN2090LL-12-06 FN2090LL-12-06 124.7712.141333322006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090LL-12-08 FN2090LL-12-08 124.7712.141333322008 - M4 screw terminal08 - M4 screw terminal
FN2090LL-16-06 FN2090LL-16-06 164.7710.741333322006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090LL-20-06 FN2090LL-20-06 204.778.22.71333322006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090LL-20-08 FN2090LL-20-08 204.778.22.71333322008 - M4 screw terminal08 - M4 screw terminal
FN2090LL-30-08 FN2090LL-30-08 304.7710.11.51333322008 - M4 screw terminal08 - M4 screw terminal
FN2090NN-4-06 FN2090NN-4-06 114.56.4140.3310010047006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090NN-3-06 FN2090NN-3-06 314.53.7140.3310010047006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090NN-6-06 FN2090NN-6-06 614.57.180.4710010033006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090NN-8-06 FN2090NN-8-06 814.57.780.4710010033006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-1-06 FN2090Z-1-06 10.451.8200.222.22168006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-3-06 FN2090Z-3-06 30.453.7140.332.2147006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-4-06 FN2090Z-4-06 40.456.4140.332.2147006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-6-06 FN2090Z-6-06 60.617.180.473.3133006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-6-07 FN2090Z-6-07 60.617.180.473.3133007 - wire07 - wire
FN2090Z-8-06 FN2090Z-8-06 80.617.780.470.470.4733006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-10-06 FN2090Z-10-06 100.618.480.473.3133006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-10-08 FN2090Z-10-08 100.618.480.473.3133008 - M4 screw terminal08 - M4 screw terminal
FN2090Z-12-06 FN2090Z-12-06 120.8612.14110122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-12-08 FN2090Z-12-08 120.8612.14110122008 - M4 screw terminal08 - M4 screw terminal
FN2090Z-16-06 FN2090Z-16-06 160.8610.74110122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-20-06 FN2090Z-20-06 200.868.22.7110122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2090Z-20-08 FN2090Z-20-08 200.868.22.7110122008 - M4 screw terminal08 - M4 screw terminal
FN2090Z-30-08 FN2090Z-30-08 300.8610.11.5110122008 - M4 screw terminal08 - M4 screw terminal

Features and Benefits

FN 2090 two-stage filters are designed for easy and fast chassis mounting.
FN 2090 B versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1
FN 2090 A versions with low capacitance to earth for safety critical applications with a requirement for low leakage currents.
FN 2090 filters offers an optimized filter range for enhanced performance AC and DC applications , in same compact size (KK, LL, NN types)
All filters provide an exceptional conducted attenuation performance, based on chokes with high permeable core material.
FN 2090 two-stage filters are designed for noisy applications requiring excellent filter performance.
The higher inductivity offers increased attenuation performance with the same form factor as FN 2060 and FN 2080 series.
All FN 2090 filters can be delivered with optional surge pulse protection (Z type).
FN 2090 filters are also available as singlestage filters (FN 2030 series).
Various terminal options allow you to select the desired connection style.

Typical Applications

Electrical and electronic equipment
Consumer goods
Household equipment
Building automation
Industrial applications
Machinery
Medical equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiring high filter performance

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

250 VDC

Nominal operating voltage

230 VAC

Rated currents

1 to 30 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> N 1100 VDC for 2 sec

P –> PE 2000 VAC for 2 sec (equiv. cap <88 nF)

P –> PE 2550 VDC for 2 sec (equiv. cap >88 nF)

P –> PE 2500 VAC for 2 sec (B types)

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Surge pulse protection (Z type)

Helps compliance to IEC61000-4-5 (Differential Mode only)

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)**

Altitude

2000m (above derating applies)**

Flammability corresponding to

Laces for -07 version: UL 94 VW-1

Terminal plastic for -06/-08 version: UL 94 V-0

Grommet for -07 version: UL 94 V-0

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

MTBF (Mil-HB-217F)

≤10 A:>1,300,000 h @ 40°C/230 V

≥12 A:>1,100,000 h @ 40°C/230 V

* maximum RMS operating voltage at rated frequency or the maximum DC operating voltage ** for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner Sales office

Typical electrical schematic

FN2090
