FN2090Z-20-06

20 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2090Z-20-06

SAP Number

802977

Product Family

FN2090

Description

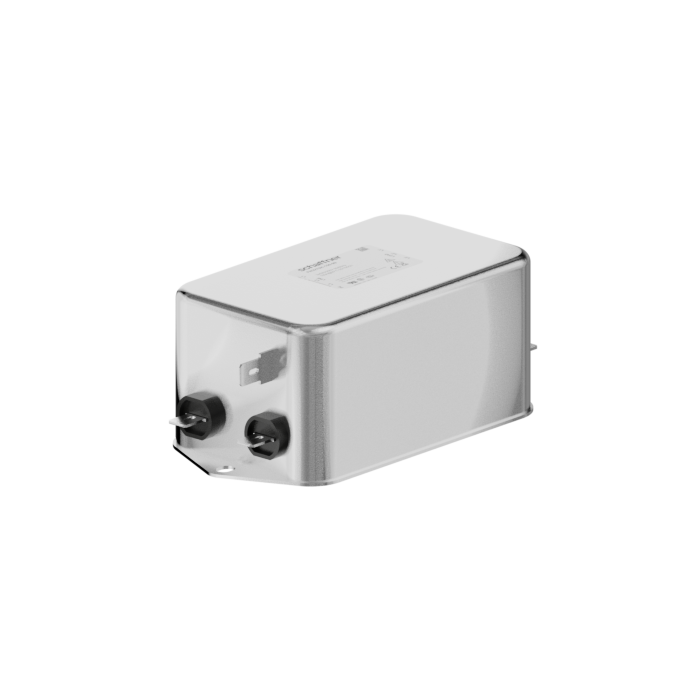

20 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 20
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.86
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss () 8.2
Resistance () 220
Attenuation
Inductance L1 () 2.7
Capacitance Cx1 () 1
Capacitance Cy1 () 10
Capacitance Cy2 () 1
CM attenuation @ 150kHz () 49
DM attenuation @ 150kHz () 57
Mechanic
Length () 94
Width () 56
Height () 45.4
Volume () 239
Weight () 520

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 113.5
B (mm) 57.5
C (mm) 45.4
D (mm) 94
E (mm) 56
F (mm) 103
G (mm) 25
H (mm) 12.4
I (mm) 32.4
J (mm) 15.5
K (mm) 4.4
L (mm) 6
M (mm) 1
M (mm) 6.3 x 0.8
