High Performance Single-Phase Filters FN2080

Multi-stage High Performance AC/DC EMI Filter

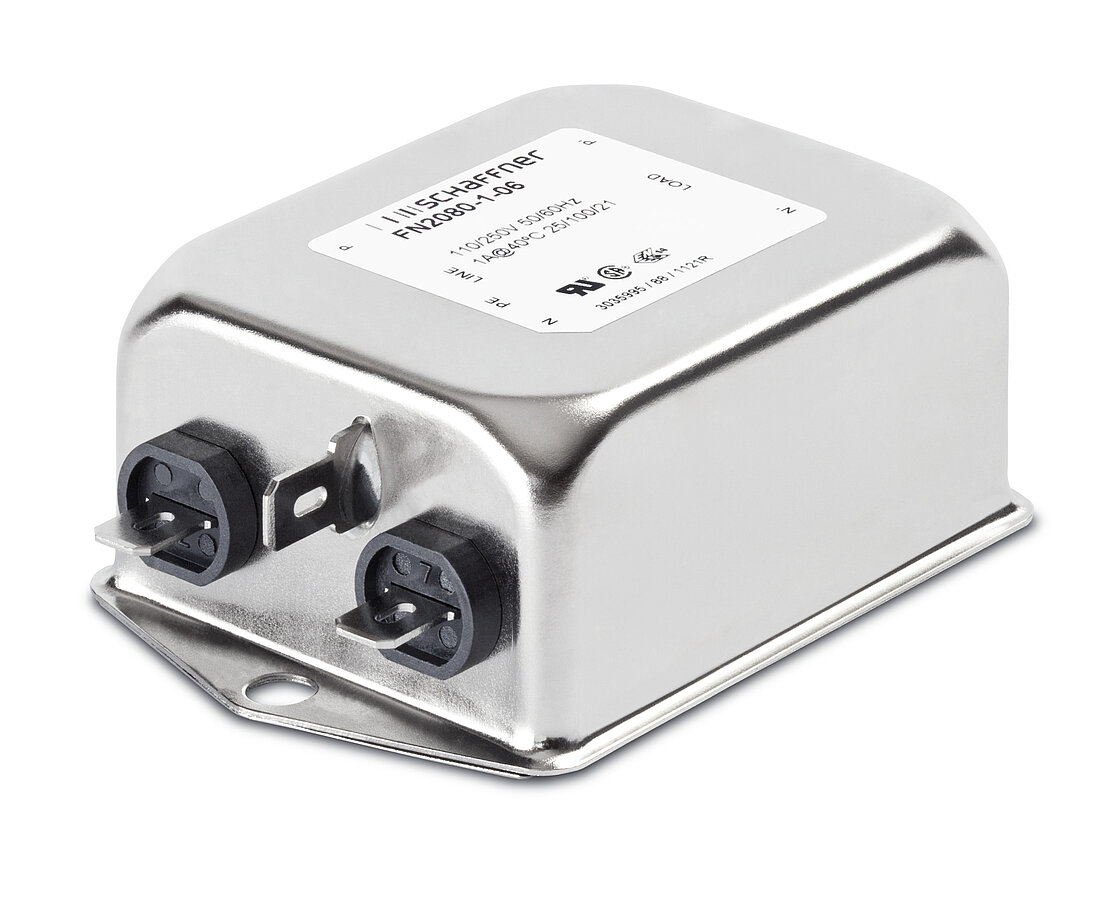

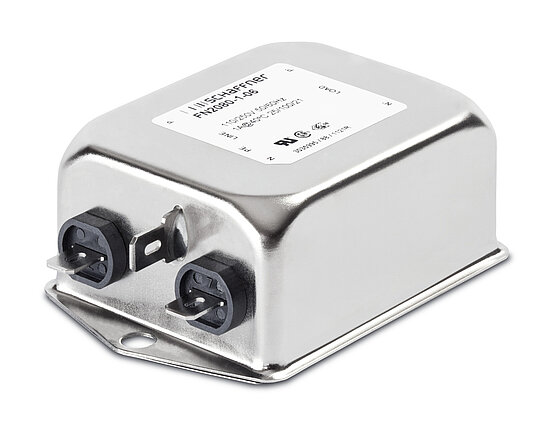

FN2080

Multi-stage High Performance AC/DC EMI Filter

  • Rated currents from 1 to 16 A
  • High differential and common-mode attenuation
  • Good low frequency attenuation
  • Optional medical versions (B type)
  • Optional safety versions (A type)

Features and Benefits

FN 2080 two-stage filters are designed for easy and fast chassis mounting
FN 2080 B versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1
FN 2808 A version with low capacitance to earth for safety critical applications with necessity for low leakage currents
All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
FN 2080 two-stage filters are designed with good low frequency attenuation
FN 2080 filters are also available as single- stage filters
FN 2080 filters are also available with two common mode choke configuration (FN 2070 series)
Various terminal options allow you to select the desired connection style

Typical Applications

Electrical and electronic equipment
Lighting applications (due to high differential mode inductance)
Consumer goods
Household equipment
Building automation
Industrial applications
Machinery
Medical equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiering good filter performance

Technical Specifications

Rated voltage*

250 VAC, 50/60 Hz; 250 VDC

Operating frequency

DC to 400 Hz

Rated currents

1 to 16 A @ 40°C max

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1100 VDC for 2 sec

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)**

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

Flammability corresponding to

Laces for -07 version: UL 94 VW-1

Terminal plastic for -06/-08 version: UL 94 V-0

Grommet for -07 version: UL 94 V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Altitude

2000m (above derating applies)**

MTBF @ 40°C/230 V (Mil-HB-217F)

1,650,000 hours

1,700,000 hours (B types)

* maximum RMS operating voltage at rated frequency or the maximum DC operating voltage ** for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner Sales office

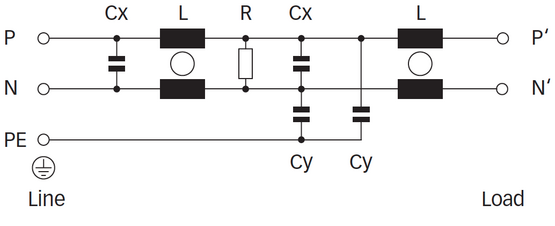

Typical electrical schematic

FN2080
