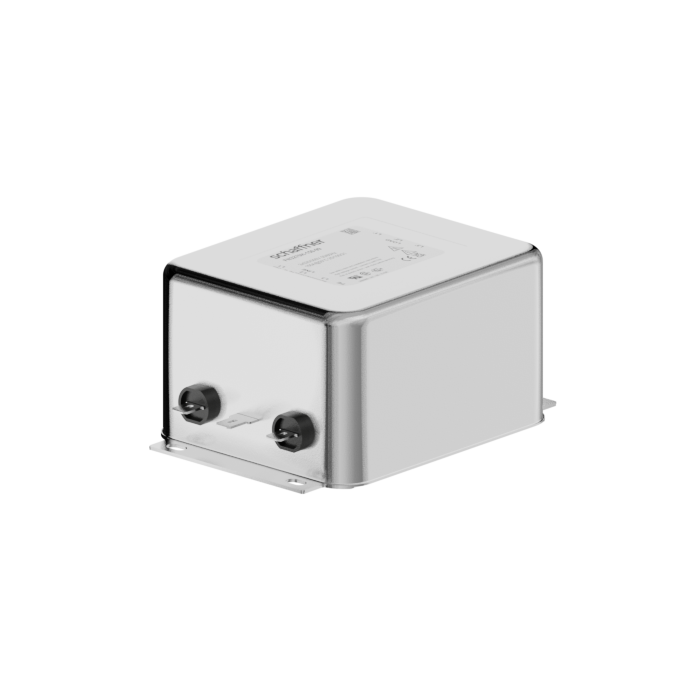

FN2080A-16-06

16 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2080A-16-06

SAP Number

800889

Product Family

FN2080

Description

16 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 16
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.07
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss () 9
Resistance () 220
Attenuation
Inductance L1 () 2.8
Inductance L2 () 43
Capacitance Cx1 () 1
Capacitance Cy1 () 4.7
CM attenuation @ 150kHz () 9
DM attenuation @ 150kHz () 29
Mechanic
Length () 98.5
Width () 84.5
Height () 57.6
Volume () 479
Weight () 1020

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 119
B (mm) 85.5
C (mm) 57.6
D (mm) 98.5
E (mm) 84.5
F (mm) 109
G (mm) 40
H (mm) 15.6
J (mm) 42.25
K (mm) 4.4
L (mm) 7.4
M (mm) 1.2
M (mm) 6.3 x 0.8
O (mm) 8.6
P (mm) 42.25
