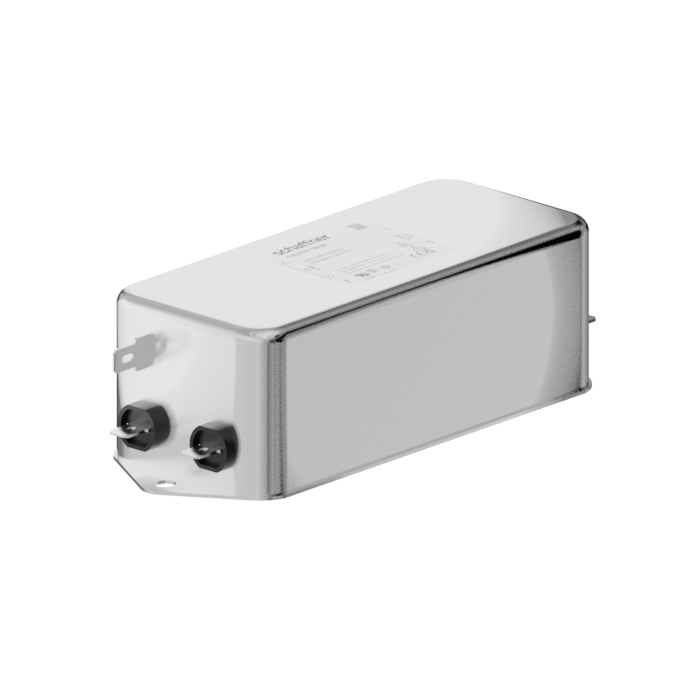

FN2080-10-06

10 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2080-10-06

SAP Number

800583

Product Family

FN2080

Description

10 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 10
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.66
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss () 8.6
Resistance () 220
Attenuation
Inductance L1 () 4.5
Inductance L2 () 60
Capacitance Cx1 () 1
Capacitance Cy1 () 4.7
CM attenuation @ 150kHz () 33
DM attenuation @ 150kHz () 33
Mechanic
Length () 130.5
Width () 56
Height () 45.4
Volume () 332
Weight () 628

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 156
B (mm) 57.5
C (mm) 45.4
D (mm) 130.5
E (mm) 56
F (mm) 143
G (mm) 25
H (mm) 12.4
I (mm) 32.5
J (mm) 15.5
K (mm) 5.3
L (mm) 6
M (mm) 1
M (mm) 6.3 x 0.8
O (mm) 8.4
P (mm) 18
