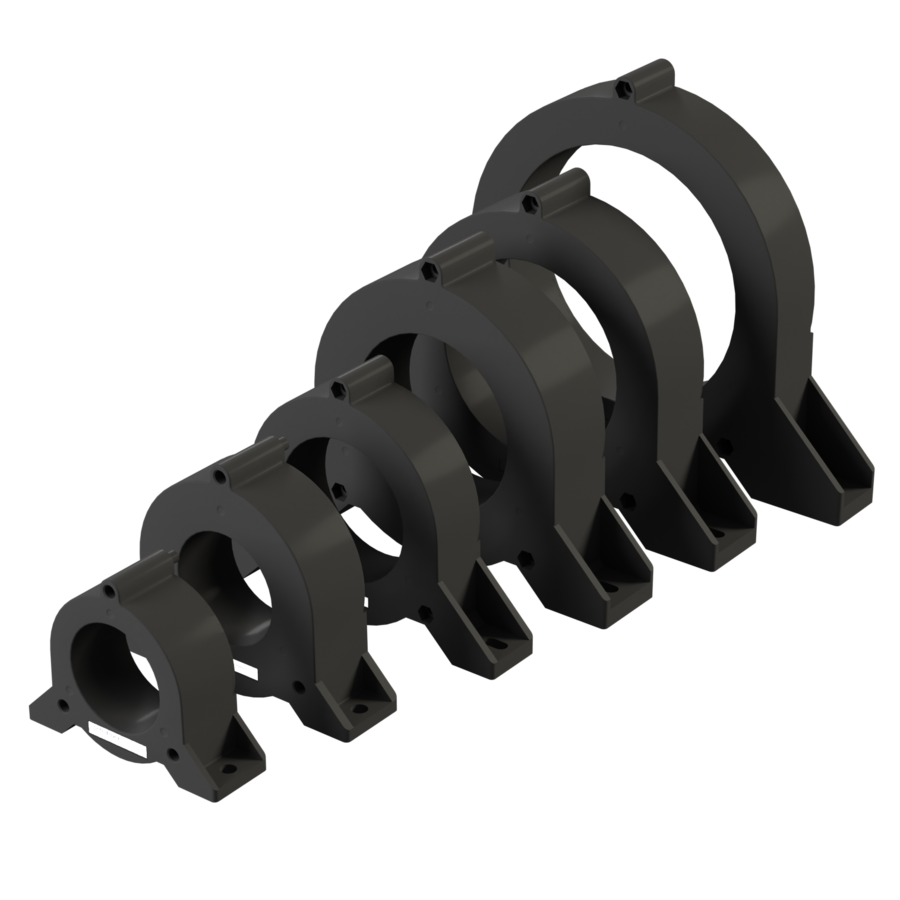

RR1000 | Schaffner Holding AG

Product Overview

Downloads

Safety and Installation Guidelines

Common mode EMI mitigation
Nanocrystalline core material
Efficient installation
Stackable
Flat or vertical mounting

Features and Benefits

High performance nanocrystalline core material

EMI mitigation without leakage currents

Reduction of bearing currents in motors

Easy installation with no electrical connections

Chokes can be stacked for higher performance

EMI mitigation without leakage current

Typical Applications

Motor protection

Common mode EMI mitigation for large cable diameters

2 line AC or DC

3 or four lines AC

Technical Specifications

Operating frequency

DC to 400 Hz

Rated inductance

64 - 111 µH

Temperature range (operation and storage)

-40°C to +100°C

Climatic category

40/100/21 (acc. IEC 60068-1)

Cooling

Design corresponding to

IEC 60938-3

Typical electrical schematic

Approvals & Compliances

Back

EMC / EMI Chokes RR1000
