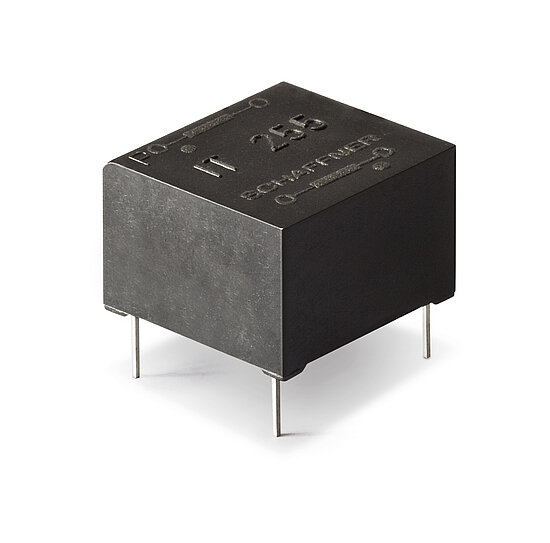

Pulse Transformers IT series with single secondary winding

Pulse Transformer with Single Secondary Winding

Most important files and data about the product you can take over here.

IT series with single secondary winding

Pulse Transformer with Single Secondary Winding

  • Galvanic separation of drive and power circuit
  • Voltage resistance up to 8 kV
  • Ignition current up to 3 A
  • Turns ratio up to 3:1

Features and Benefits

Galvanic separation
Voltage resistance up to 8 kV
Allows high potential difference voltage scaling
Optional grounded shields
Vacuum potting
Very low partial discharge effects
PCB through hole mounting or faston types
Custom-specific versions on request

Typical applications

Gate drive circuit
Power supplies
Power converters
Frequency converters
Switching applications
DC/DC converters
Line coupling transformers in high-speed data transmission

Technical specifications

Nominal operating voltage

Up to 3000 V

Operating frequency

40 kHz max.

500 kHz max. for data transmission

DC to 40000 Hz

Ignition currents

0.1 to 3 A @ 40°C

Rise time

0.3 to 2.3 µs

Test voltage

Up/50 Hz/2 s max. according to VDE 110b

Max. partial discharge voltage

1.5 x Unom

Temperature range (operation and storage)

-25°C to +70°C (25/70/21)

Flammability corresponding to

UL 94 V-0 listed materials

Typical electrical schematic

IT series with single secondary winding

Approvals & Compliances

RoHS Label
UKCA Label
