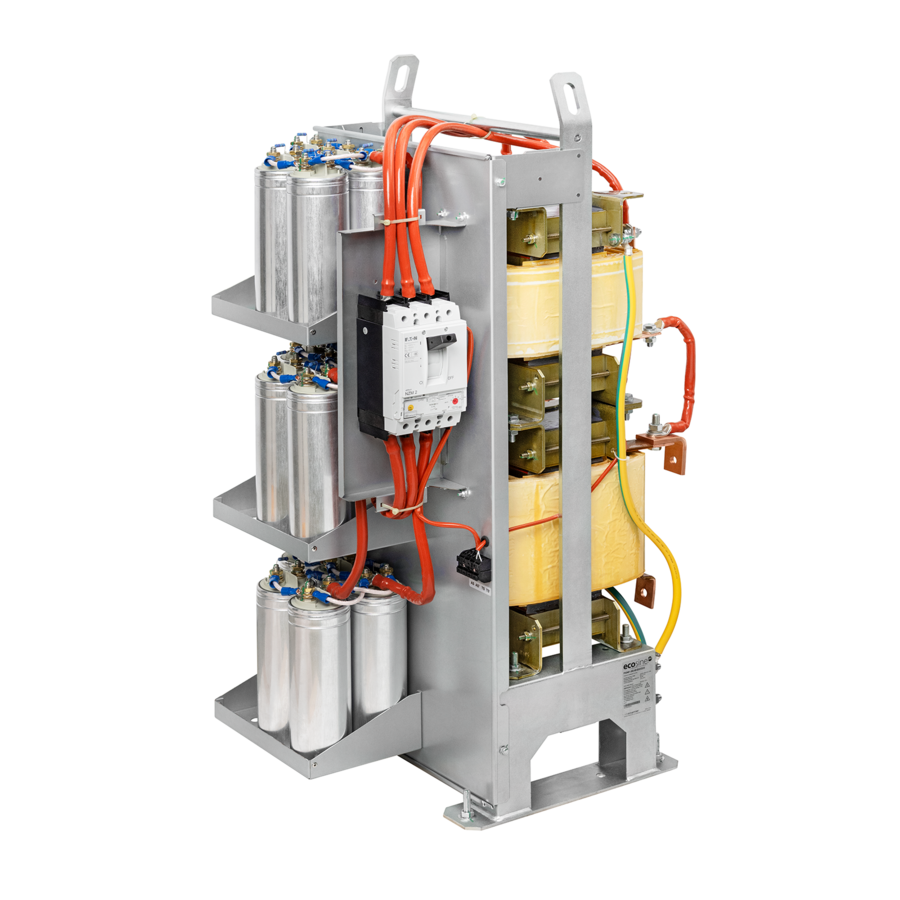

Ecosine Max, 400 VAC 50 Hz Economy Passive Harmonic Filters
- Demonstrate best cost-performance ratio
- Achieve 8% THDi for diode rectifier without Ldc, and 5% THDi for diode rectifier with 4% Ldc
- Best-in-class partial load performance
- Most compact open panel design for cabinet integration
- Reliable and robust
- Plug and play, ready to use
Features and Benefits
Schaffner ecosine harmonic filters represent an economical solution to the challenge of load-applied harmonics mitigation in three-phase power systems. With a plug-and-play approach and more compact dimensions than comparable products, they can be quickly installed and easily commissioned. They increase the reliability and service life of electric installations, help utilize electric sytem capacity better, and are the key to meet Power Quality standards such as IEEE 519. Ecosine filters reshape your distorted current back to the desired sinusoidal waveform. Schaffner ecosine filters can be applied to virtually any kind of power electronics with front-end six-pulse rectifiers, 3-phase diode or thyristor bridges, where harmonic current distortion needs to be reduced to defined limits.
Typical Applications
Technical Specifications
Nominal operating voltage
3x380 VAC to 415 VAC ±10%
Overload capability
1.6x rated current for 1 minute, once per hour
Operating frequency
50 Hz ±1 Hz
Total harmonic current distortion THDi*
<8% @ rated power for drives without Ldc
<5% @ rated power for drives equipped with 4% Ldc
Total demand distortion TDD
According to IEEE 519
Nominal motor drive input power rating
250 to 500kW
High potential test voltage
P -> E 2520 VAC (1s)
Earthing system
TN, TT, IT
Efficiency
>99% for rated voltage and power
Overvoltage category
OV III (IEC 60664-1)
Temperature range (operation and storage)
–25°C to +40°C fully operational
+40°C to +70°C derated operation****
–25°C to +85°C transport and storage
Cooling
External cooling***
Protection category
IP 00
Flammability corresponding to
UL 94 V-2
Design corresponding to
Filter: UL 61800-5-1, EN 61800-5-1
Chokes: EN 60076-6
SCCR**
100 kA (UL approved)
MTBF (Mil-HB-217F)
>200,000 h @ 40°C/400 V

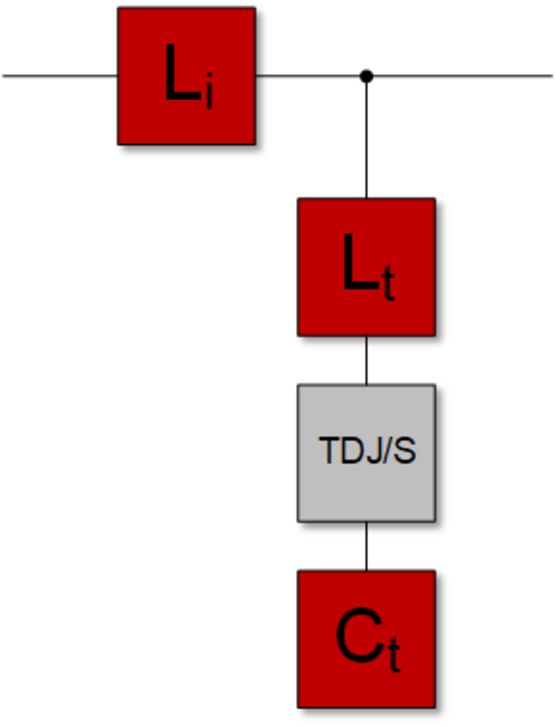

Typical electrical schematic
Approvals & Compliances
