IEC Inlet Filters FN2660

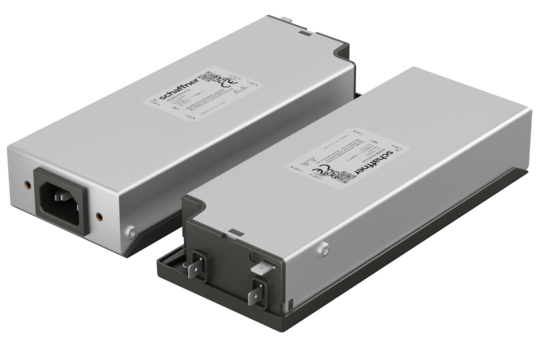

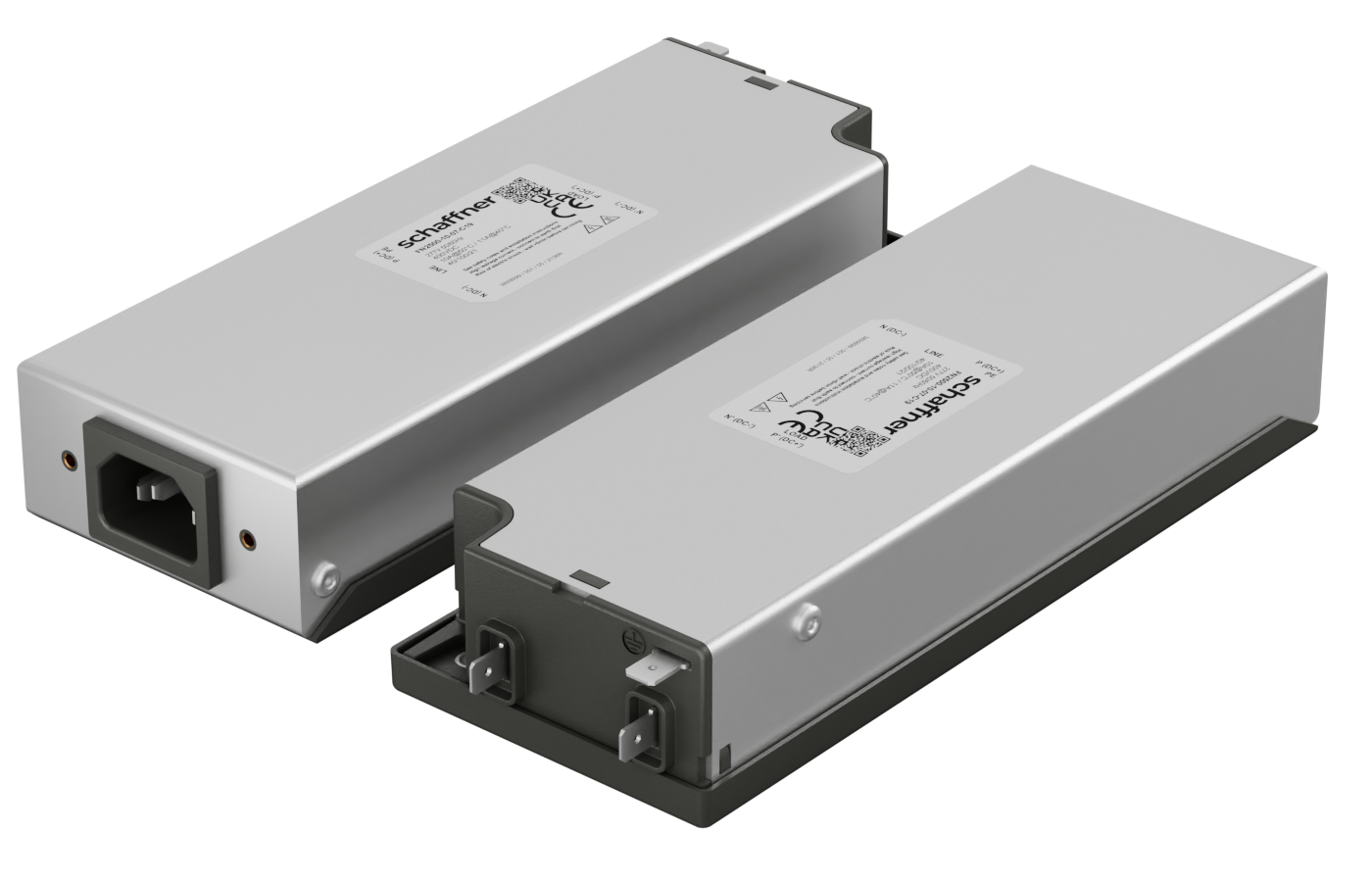

Low Profile - High performance, EMC/EMI IEC inlet filter

Product Overview

Downloads

Technical Data Sheet
CAD-Files
RoHS
UKCA FN25XX / FN26XX
CE FN25XX / FN26XX
CE 3-phase filters
RoHS-China
REACH
Safety and Installation Guidelines
Contact Us
FN2660

Low Profile - High performance, EMC/EMI IEC inlet filter

  • Excellent IEC inlet for robotics, datacenters and other applications
  • Terminals available on load side: Fast-on, wire leads, bolt, and clamps
  • Voltage rating up to 250 VAC
  • Fits within 1 height unit (HU) of a 19" rack application
  • 40 °C operating temperature
  • 2-stage filter performance

Articles

Article Rated Current @ambient Leakage current IEC60939 Power Loss Inductance Capacitance Resistance Input/Output connections (Nm) Distribution stock Compare Read More
L1 L2 Cx1 (µF) Cx2 (µF) Cy1 (nF) Cy2 (nF) Input terminal Output terminal
FN2660-10-05-C0909 FN2660-10-05-C0909 100.358.28.38.310.472.22.268027 - IEC-plug05 - faston 6.3x0.8
FN2660-10-07-C0909 FN2660-10-07-C0909 100.358.28.38.310.472.22.268027 - IEC-plug07 - wire
FN2660-10-08-C0909 FN2660-10-08-C0909 100.358.28.38.310.472.22.268027 - IEC-plug08 - M4 screw terminal
FN2660-10-103-C0909 FN2660-10-103-C0909 100.358.28.38.310.472.22.268027 - IEC-plug103 - push-in terminal
FN2660-15-05-C0909 FN2660-15-05-C0909 150.358.24410.472.22.268027 - IEC-plug05 - faston 6.3x0.8
FN2660-15-07-C0909 FN2660-15-07-C0909 150.358.24410.472.22.268027 - IEC-plug07 - wire
FN2660-15-08-C0909 FN2660-15-08-C0909 150.358.24410.472.22.268027 - IEC-plug08 - M4 screw terminal
FN2660-15-103-C0909 FN2660-15-103-C0909 150.358.24410.472.22.268027 - IEC-plug103 - push-in terminal
FN2660-16-05-C0909 FN2660-16-05-C0909 160.359.44410.472.22.268027 - IEC-plug05 - faston 6.3x0.8
FN2660-16-07-C0909 FN2660-16-07-C0909 160.359.44410.472.22.268027 - IEC-plug07 - wire
FN2660-16-08-C0909 FN2660-16-08-C0909 160.359.44410.472.22.268027 - IEC-plug08 - M4 screw terminal
FN2660-16-103-C0909 FN2660-16-103-C0909 160.359.44410.472.22.268027 - IEC-plug103 - push-in terminal
FN2660-20-05-C0909 FN2660-20-05-C0909 200.3510.62.42.410.472.22.268027 - IEC-plug05 - faston 6.3x0.8
FN2660-20-07-C0505 FN2660-20-07-C0505 200.1310.62.42.410.472.22.268027 - IEC-plug07 - wire
FN2660-20-07-C0909 FN2660-20-07-C0909 200.3510.62.42.410.472.22.268027 - IEC-plug07 - wire
FN2660-20-08-C0909 FN2660-20-08-C0909 200.3510.62.42.410.472.22.268027 - IEC-plug08 - M4 screw terminal
FN2660-20-103-C0909 FN2660-20-103-C0909 200.3510.62.42.410.472.22.268027 - IEC-plug103 - push-in terminal
FN2661-10-05-C0909 FN2661-10-05-C0909 100.3527 - IEC-plug05 - faston 6.3x0.8
FN2661-20-103-C0909 FN2661-20-103-C0909 200.3527 - IEC-plug103 - push-in terminal
FN2662-10-05-C0909 FN2662-10-05-C0909 100.3527 - IEC-plug05 - faston 6.3x0.8
FN2663-10-05-C0909 FN2663-10-05-C0909 100.3527 - IEC-plug05 - faston 6.3x0.8
FN2664-10-05-C0909 FN2664-10-05-C0909 100.3527 - IEC-plug05 - faston 6.3x0.8
FN2664-20-08-C0909 FN2664-20-08-C0909 200.3527 - IEC-plug08 - M4 screw terminal

Features and Benefits

FN2640 / FN2660 series fits perfectly within 1HU height for rack mount applications
The filters are built to fit perfectly to datacenter and audio video equipment
The shape allows convenient and space-saving installation
Fulfills the requirements in IEC/EN 62040-1 - Uninterruptible power systems (UPS)
Fulfills the requirements in IEC 62368-1 - Audio/Video, Information and Communication Technology Equipment
Fulfills the requirements in IEC/EN 60335-1 - Household and similar appliances

Typical Applications

Robotics, collaborative robots, autonomous machines
Audio and video equipment
UPS - Uninterruptible power supplies

Technical Specifications

Maximum continuous operating voltage

250 VAC

Nominal operating voltage

230 VAC

Rated currents

10 to 20 A @ 40°C

Overload capability

1.5 x rated current for 1 minute once per hour

Operating frequency

DC to 60 Hz

High potential test voltage

P –> N 1500 VDC for 2 sec*

P/N –> PE 2500 VDC for 2 sec*

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Surge withstand

2 kV Ph-Ph / 4 kV Ph-PE (Level 4)

Temperature range (operation and storage)

-40°C to +85°C (with derating >40°C)

Climatic category

40/085/21 acc. IEC60068-1

Cooling

Natural cooling AN

Altitude

Derating above 2000 m

Protection category

IP00 / IP20 for -103 terminal

Flammability corresponding to

Plastic Material: UL 94 V0

Laces for -07 version: UL 94 VW1

Vibration and shock

3M12 acc. IEC 60721-3-3

Certified to

UL 60939-3, IEC/EN 60939, GB/T 15287

MTBF (Mil-HB-217F)

>300,000 h @ 40°C/230 V

* High potential test voltage: Repetition with max. 80% of specified values

Typical electrical schematic

FN2660
