FN2660-10-05-C0909

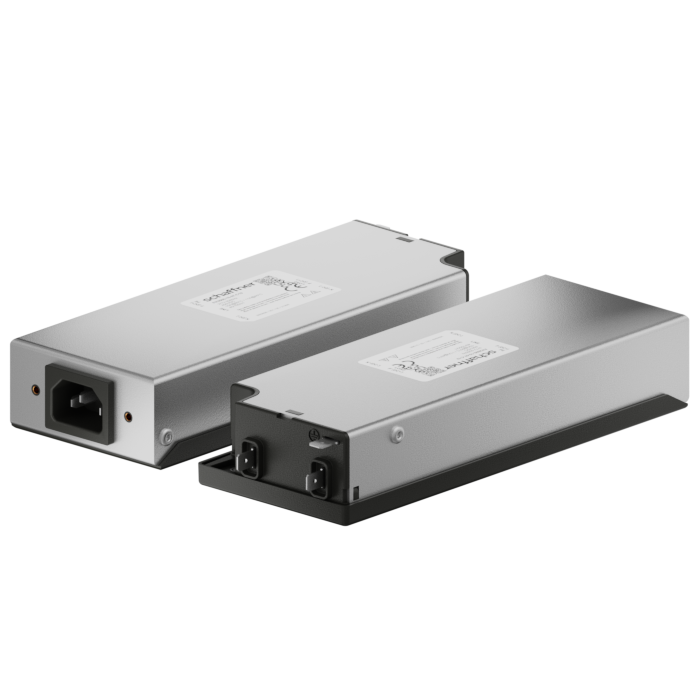

10 A IEC inlet EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2660-10-05-C0909

SAP Number

821801

Product Family

FN2660

Description

10 A IEC inlet EMC filter with fast-ons

Type

Chassis mount

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 10
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.35
Input terminal 27 - IEC-plug
Output terminal 05 - faston 6.3x0.8
Power Loss () 8.2
Resistance () 680
Attenuation
Inductance L1 () 8.3
Inductance L2 () 8.3
Capacitance Cx1 () 1
Capacitance Cx2 () 0.47
Capacitance Cy1 () 2.2
Capacitance Cy2 () 2.2
CM attenuation @ 150kHz () 63
DM attenuation @ 150kHz () 44
Mechanic
Length () 184.7
Width () 73
Height () 35
Volume () 472
Weight () 460

Schaffner schemes

Mechanical Data Image

Dimensions
