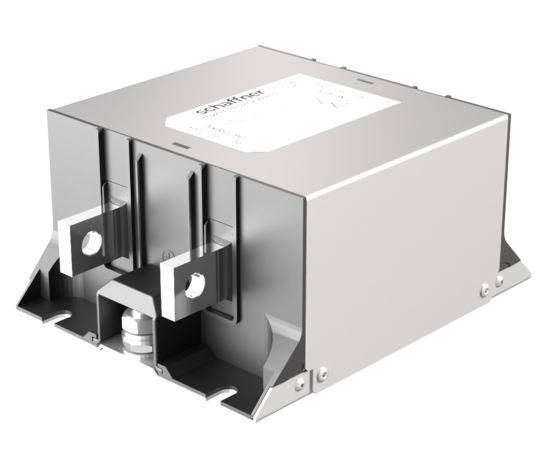

DC Filter for EV-Charging FN2220, FN2230 and FN2240

DC-Busbar EMC/RFI Filter for EV charging

FN2220, FN2230 and FN2240

DC-Busbar EMC/RFI Filter for EV charging

  • Designed for usage in EV charging applications
  • Ultra-compact filter
  • Multiple performance options
  • Design acc. to EV charging safety standards

Articles

Article Rated Current @ambient (A) Capacitance Resistance (kΩ) Input/Output connections (Nm) Distribution stock Compare Read More
Cy1 (nF) Cy2 (nF) Input terminal Output terminal
FN2240-300-99-C0000-R90 FN2240-300-99-C0000-R90 3003303301099 - special / busbar99 - special / busbar
FN2230-150-99-C2022-R99 FN2230-150-99-C2022-R99 1501503301099 - special / busbar99 - special / busbar
FN2230-300-99-C0000-R90 FN2230-300-99-C0000-R90 3001503301099 - special / busbar99 - special / busbar
FN2230-300-99-C2022-R99 FN2230-300-99-C2022-R99 3001503301099 - special / busbar99 - special / busbar
FN2230-450-99-C0000-R90 FN2230-450-99-C0000-R90 4501503301099 - special / busbar99 - special / busbar
FN2230-450-99-C2022-R99 FN2230-450-99-C2022-R99 4501503301099 - special / busbar99 - special / busbar
FN2230-600-99-C0000-R90 FN2230-600-99-C0000-R90 6001503301099 - special / busbar99 - special / busbar
FN2231-600-99-C2022-R99 FN2231-600-99-C2022-R99 6001503301099 - special / busbar99 - special / busbar
FN2232-600-99-C2022-R99 FN2232-600-99-C2022-R99 6001099 - special / busbar99 - special / busbar
FN2240-150-99-C0000-R90 FN2240-150-99-C0000-R90 1503303301099 - special / busbar99 - special / busbar
FN2240-150-99-C2222-R99 FN2240-150-99-C2222-R99 1503303301099 - special / busbar99 - special / busbar
FN2230-150-99-C0000-R90 FN2230-150-99-C0000-R90 1501503301099 - special / busbar99 - special / busbar
FN2240-300-99-C2222-R99 FN2240-300-99-C2222-R99 3003303301099 - special / busbar99 - special / busbar
FN2240-450-99-C0000-R90 FN2240-450-99-C0000-R90 4503303301099 - special / busbar99 - special / busbar
FN2240-600-99-C0000-R90 FN2240-600-99-C0000-R90 6003303301099 - special / busbar99 - special / busbar
FN2240-600-99-C2222-R99 FN2240-600-99-C2222-R99 6003303301099 - special / busbar99 - special / busbar
FN2241-450-99-C1414-R46-1 FN2241-450-99-C1414-R46-1 45099 - special / busbar99 - special / busbar
FN2241-450-99-C1414-R49-1 FN2241-450-99-C1414-R49-1 45099 - special / busbar99 - special / busbar
FN2241-450-99-C1414-R99-1 FN2241-450-99-C1414-R99-1 45099 - special / busbar99 - special / busbar
FN2241-600-99-C2222-R99 FN2241-600-99-C2222-R99 6003303301099 - special / busbar99 - special / busbar
FN2242-600-99-C2222-R99 FN2242-600-99-C2222-R99 6001099 - special / busbar99 - special / busbar
FN2220-450-99-C1616-R90 FN2220-450-99-C1616-R90 4503303301099 - special / busbar99 - special / busbar
FN2220-150-99-C1616-R90 FN2220-150-99-C1616-R90 1503303301099 - special / busbar99 - special / busbar
FN2220-150-99-C2022-R99 FN2220-150-99-C2022-R99 1503303301099 - special / busbar99 - special / busbar
FN2220-150-99-C2222-R99 FN2220-150-99-C2222-R99 1503303301099 - special / busbar99 - special / busbar
FN2220-300-99-C0000-R90 FN2220-300-99-C0000-R90 3003303301099 - special / busbar99 - special / busbar
FN2220-300-99-C1414-R46 FN2220-300-99-C1414-R46 3003303301099 - special / busbar99 - special / busbar
FN2220-300-99-C1414-R99 FN2220-300-99-C1414-R99 3003303301099 - special / busbar99 - special / busbar
FN2220-300-99-C2222-R99 FN2220-300-99-C2222-R99 3003303301099 - special / busbar99 - special / busbar
FN2220-450-99-C0000-R90 FN2220-450-99-C0000-R90 4503303301099 - special / busbar99 - special / busbar
FN2220-450-99-C1414-R99 FN2220-450-99-C1414-R99 4503303301099 - special / busbar99 - special / busbar
FN2220-150-99-C0000-R90 FN2220-150-99-C0000-R90 1503303301099 - special / busbar99 - special / busbar
FN2220-450-99-C2018-R99 FN2220-450-99-C2018-R99 4503303301099 - special / busbar99 - special / busbar
FN2220-450-99-C2222-R99 FN2220-450-99-C2222-R99 4503303301099 - special / busbar99 - special / busbar
FN2220-600-99-C0000-R90 FN2220-600-99-C0000-R90 6003303301099 - special / busbar99 - special / busbar
FN2220-600-99-C1616-R90 FN2220-600-99-C1616-R90 6003303301099 - special / busbar99 - special / busbar
FN2220-600-99-C2222-R99 FN2220-600-99-C2222-R99 6003303301099 - special / busbar99 - special / busbar
FN2221-300-99-C0000-R90 FN2221-300-99-C0000-R90 3003303301099 - special / busbar99 - special / busbar
FN2221-450-99-C1414-R99 FN2221-450-99-C1414-R99 4501099 - special / busbar99 - special / busbar
FN2221-600-99-C2222-R99 FN2221-600-99-C2222-R99 6003303301099 - special / busbar99 - special / busbar
FN2222-600-99-C2222-R99 FN2222-600-99-C2222-R99 6001099 - special / busbar99 - special / busbar

Features and Benefits

FN222X, FN223X and FN224X series of filters provides state-of-the-art EMI attenuation with a choice of three performance levels
The filters are built to fit perfectly to high power EV charging applications
The shape allows a convenient and space-saving installation
Fulfills the requirements in IEC/EN 61851-23 Electric vehicle conductive charging system
Fulfills the requirements in UL 2202 Electric Vehicle (EV) Charging System Equipment
FN224X offers voltage and performance ratings of FN222X on a smaller footprint

Typical Applications

High Power EV DC charging beyond HPC350 (500 A @ 920 V)
Two voltage levels (500 VDC and 1000 VDC) for CHAdeMO and CCS

Technical Specifications

Maximum continuous operating voltage

500 VDC (FN223X)

1000 VDC (FN222X, FN224X)

Certified to

UL 60939-3, IEC 60939-3, CSA 22.2 No. 8-13

Flammability corresponding to

Plastics: UL 94 V-0

MTBF

> 300,000 hours

Rated currents

150 to 600 A

150 to 600 A @ 55 °C

Overload capability

6x rated current for 1 sec, once per hour

1.5x rated current for 1 minute, once per hour

Cooling

Natural convection AN

Climatic class

40/100/21 acc. to IEC 60068-1

Temperature range (operation and storage)

-40 °C to +100 °C (with current derating >55 °C)

High potential test voltage

DC+/DC- -> PE 2500 VDC for 2 s (FN223X)*

DC+ -> DC- 3600 VDC for 2 s (FN222X, FN224X)*

DC+ -> DC- 2000 VDC for 2 s (FN223X)*

DC+/DC- -> PE 5000 VDC for 2 s (FN222X, FN224X)*

Output connections

Ni-plated busbars

Pollution degree

PD 3 acc. IEC 60664-1

Overvoltage category

II acc. IEC 60664-1

Surge withstand

DC+/DC- to PE: 4000 V (FN223X) / 6000 V (FN222X, FN224X)

DC+ to DC-: 2000 V

acc. to IEC 61000-4-5

Altitude

up to 2000 m no derating applies. Above 2000 m derating acc. to IEC 60664-1 applies

Operating frequency

DC

Protection category

IP00 acc. to IEC 60529

Vibration and shock

3M12 (operation) acc. to IEC 60721-3-3

Typical electrical schematic

FN2220, FN2230 and FN2240

Approvals & Compliances

ENEC 14 Label
CE Label
RoHS Label
UKCA Label
UL Recognized Label (USA)
Under preparation: UL listed label
