| General | |
|---|---|
| Voltage AC () | 300 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 2 |
| Ambient temperature () | 65 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
ED101-2-3M0
SAP Number
822548
Product Family
ED100 / ED101
Description

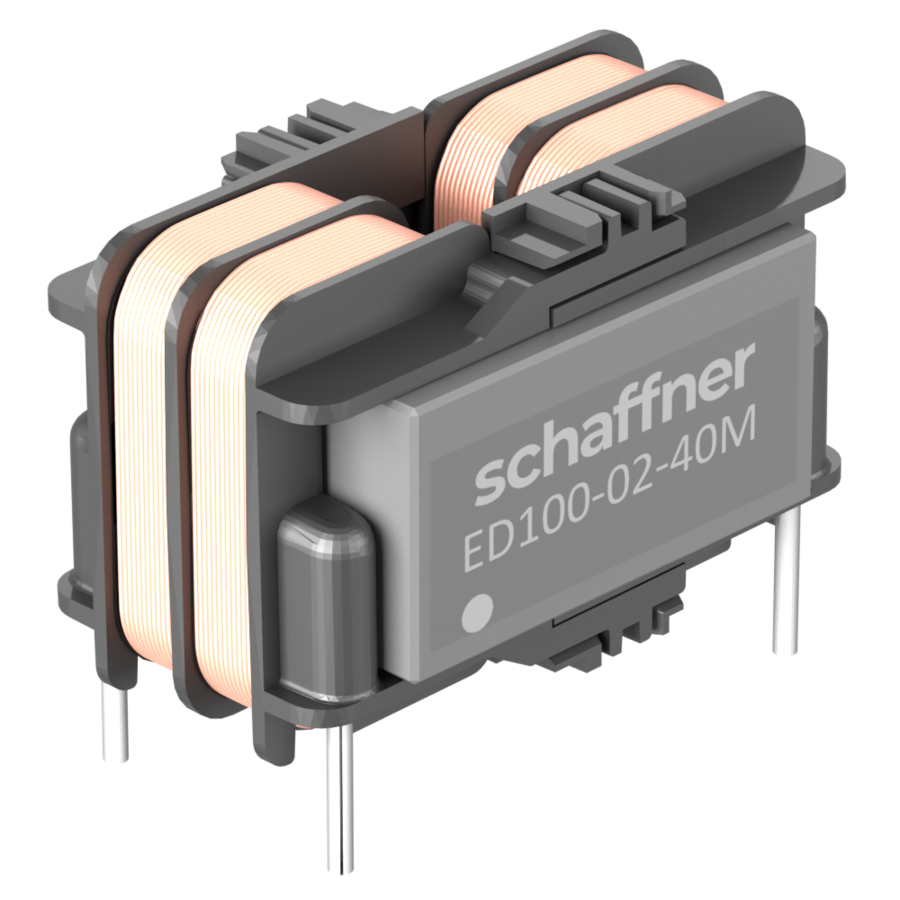

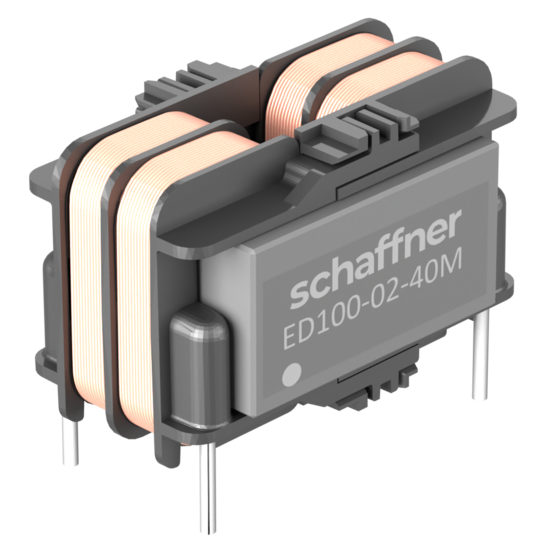

2 A PCB Common Mode Choke with 3 mH Inductance
Type
PCB Common Mode Choke
Application
General
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 3 |
| Mechanic | |
|---|---|
| Length () | 24 |
| Width () | 14.3 |
| Height () | 15.3 |
| Weight () | 14 |
| ø Pin (mm) | 0.8 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| H (mm) | 15.3 |
| L (mm) | 24 |
| W (mm) | 14.3 |
