Product Overview
Current-compensated Chokes - Ferrite Core
- Efficient ferrite core material
- AC and DC applications
- Low magnetic leakage flux
- Excellent winding insulation
- Broad range of inductance ratings

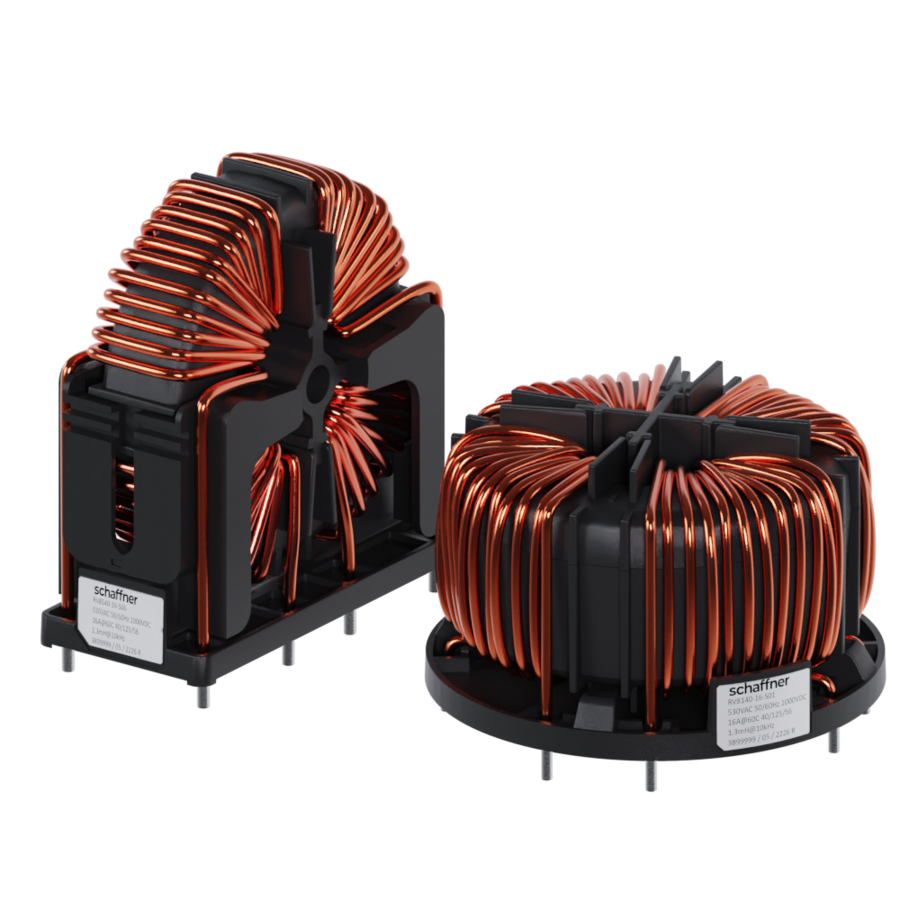

- RV8140 - horizontal orientation
- RV8540 - vertical orientation
Articles
| Article | Rated Current @ambient | Inductance | Input/Output connections (Nm) | Distribution stock | Compare | Read More | |
|---|---|---|---|---|---|---|---|
| L1 | Input terminal | ||||||
 | RV8140-16-S01 | 16 | 5 | PCB Pin | |||
 | RV8140-25-S01 | 25 | 2.8 | PCB Pin | |||
 | RV8140-32-S01 | 32 | 2 | PCB Pin | |||
 | RV8140-40-S01 | 40 | 1.3 | PCB Pin | |||
 | RV8140-50-S01 | 50 | 0.7 | PCB Pin | |||
 | RV8540-16-S02 | 16 | 5 | PCB Pin | |||
 | RV8540-25-S02 | 25 | 2.8 | PCB Pin | |||
 | RV8540-32-S02 | 32 | 2 | PCB Pin | |||
 | RV8540-40-S02 | 40 | 1.3 | PCB Pin | |||
 | RV8540-50-S02 | 50 | 0.7 | PCB Pin | |||
 | RV8140-16-S03 | 16 | 7.2 | PCB Pin | |||
 | RV8140-25-S03 | 25 | 4 | PCB Pin | |||
 | RV8140-32-S03 | 32 | 2.8 | PCB Pin | |||
 | RV8140-40-S03 | 40 | 1.6 | PCB Pin | |||
 | RV8140-50-S03 | 50 | 1 | PCB Pin | |||
 | RV8540-16-S06 | 16 | 2.4 | PCB Pin | |||
 | RV8540-25-S06 | 25 | 1.4 | PCB Pin | |||
 | RV8540-32-S06 | 32 | 1 | PCB Pin | |||
 | RV8540-40-S06 | 40 | 0.6 | PCB Pin | |||
 | RV8540-50-S06 | 50 | 0.4 | PCB Pin | |||
 | RV8140-16-S11 | 16 | 3.6 | PCB Pin | |||
 | RV8140-25-S11 | 25 | 2 | PCB Pin | |||
 | RV8140-32-S11 | 32 | 1.2 | PCB Pin | |||
 | RV8140-40-S11 | 40 | 0.7 | PCB Pin | |||
 | RV8140-50-S11 | 50 | 0.3 | PCB Pin | |||
 | RV8540-16-S12 | 16 | 3.6 | PCB Pin | |||
 | RV8540-25-S12 | 25 | 2 | PCB Pin | |||
 | RV8540-32-S12 | 32 | 1.2 | PCB Pin | |||
 | RV8540-40-S12 | 40 | 0.7 | PCB Pin | |||
 | RV8540-50-S12 | 50 | 0.3 | PCB Pin | |||
 | RV8140-16-S13 | 16 | 5.4 | PCB Pin | |||
 | RV8140-25-S13 | 25 | 2.8 | PCB Pin | |||
 | RV8140-32-S13 | 32 | 1.6 | PCB Pin | |||
 | RV8140-40-S13 | 40 | 1 | PCB Pin | |||
 | RV8140-50-S13 | 50 | 0.4 | PCB Pin | |||
| RV8540-16-S16 | 16 | 1.9 | PCB Pin | |||
 | RV8540-25-S16 | 25 | 1 | PCB Pin | |||
 | RV8540-32-S16 | 32 | 0.6 | PCB Pin | |||
 | RV8540-40-S16 | 40 | 0.4 | PCB Pin | |||
 | RV8540-50-S16 | 50 | 0.1 | PCB Pin |
Features and Benefits
EV wallbox chargers up to 35kW
Horizontal Version - Four Performance Choices
Vertical Version - Four Performance Choices
Also available with nanocrystalline cores: RV8141 (horizontal) & RV8541 (vertical)
Typical Applications
Technical Specifications
Rated currents
16 to 50 A @ 60°C
Operating frequency
50/60 Hz
DC
Creepage and clearance distances
Creepage: ≥ 7.2 mm (Coil - Coil)
Clearance: ≥ 5.6 mm (Coil - Coil)
High potential test voltage
3 kV AC 2s coil to coil
Rated inductance
0.1 to 1.8 mH (4-line or parallel connection)
0.1 to 7.2 mH (2-line, series connection)
Operating voltage
530 VAC RMS
1000 VDC
Overvoltage category
530 VAC: III (acc. IEC 60664-1)
1000 VDC: II (acc. IEC 60664-1)
Pollution degree
PD2 (acc. IEC60664-1)
Stray inductance
Max. 1% of rated inductance @ 10 kHz
Temperature range (operation and storage)
-40°C to +125°C
Climatic category
40/125/56 (acc. IEC 60068-1)
Cooling
AN
Altitude
2000 m, current and voltage derating above
Protection category
IP 00 (acc. IEC 60529-1)
Flammability corresponding to
UL 94 V0
Vibration and shock
Vibration (IEC 60068-2-6): 10 Hz to 55 Hz (24 cycles)
Shock (IEC 60068-2-27): 30 G / 18 ms (3 cycles)
Design corresponding to
IEC 60938-1/-2
UL 1446 E332676 - Insulation system SCH-155(F)-C
MTBF (Mil-HB-217F)
>2,000,000 h @ 60°C/530 V
Typical electrical schematic
Approvals & Compliances
