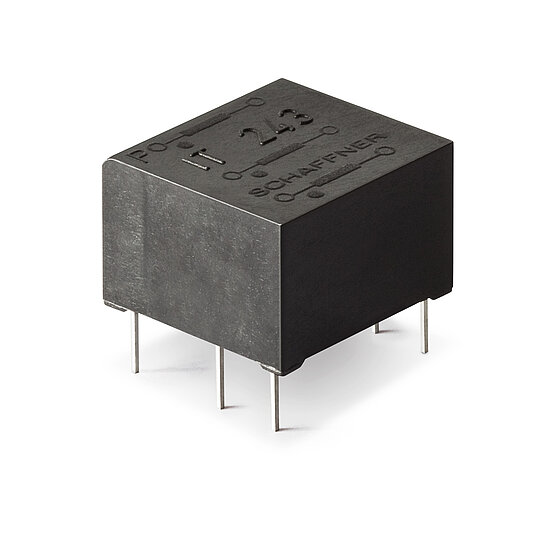

Pulse Transformers IT series with double secondary winding

Pulse Transformer with Double Secondary Winding

IT series with double secondary winding

Pulse Transformer with Double Secondary Winding

  • Galvanic separation of drive and power circuit
  • Voltage resistance up to 4 kV
  • Ignition current up to 1 A
  • Turns ratio up to 3:1:1

Features and Benefits

Galvanic separation with secondary winding
Voltage resistance up to 4 kV
Allows high potential difference voltage scaling
Vacuum potting
Very low partial discharge effects
PCB through hole mounting
Custom-specific versions on request

Typical Applications

Gate drive circuit
Power supplies
Power converters
Frequency converters
Switching applications
DC/DC converters
Line coupling transformers in high-speed data transmission

Technical Specifications

Nominal operating voltage

Up to 500 V

Ignition currents

0.025 to 1 A @ 40°C

Operating frequency

40 kHz max.

500 kHz max. for data transmission

DC to 40000 Hz

Rise time

0.4 to 4 µs

Test voltage

Up/50 Hz/2 s max. according to VDE 110b

Max. partial discharge voltage

1.5 x Unom

Temperature range (operation and storage)

-25°C to +70°C (25/70/21)

Flammability corresponding to

UL 94 V-0 listed materials

Approvals & Compliances

RoHS Label
