IL 13P Rewireable IEC C13 Locking ConnectorIL 13P Rewireable IEC C13 Locking Connector

Rewireable Connectors with Locking System IL 13P Rewireable IEC C13 Locking Connector

IL 13P IEC C13 Rewireable Connectors with Locking System

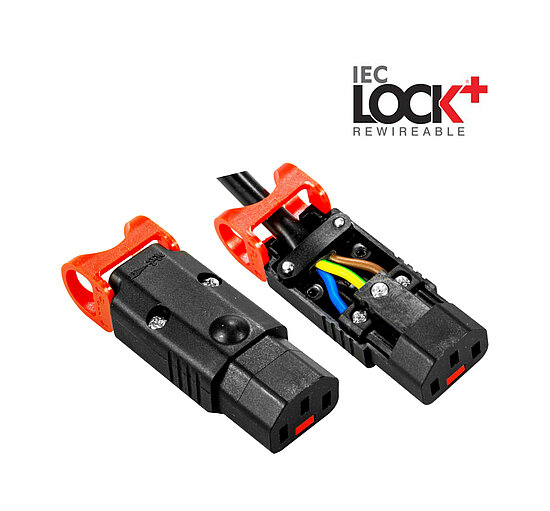

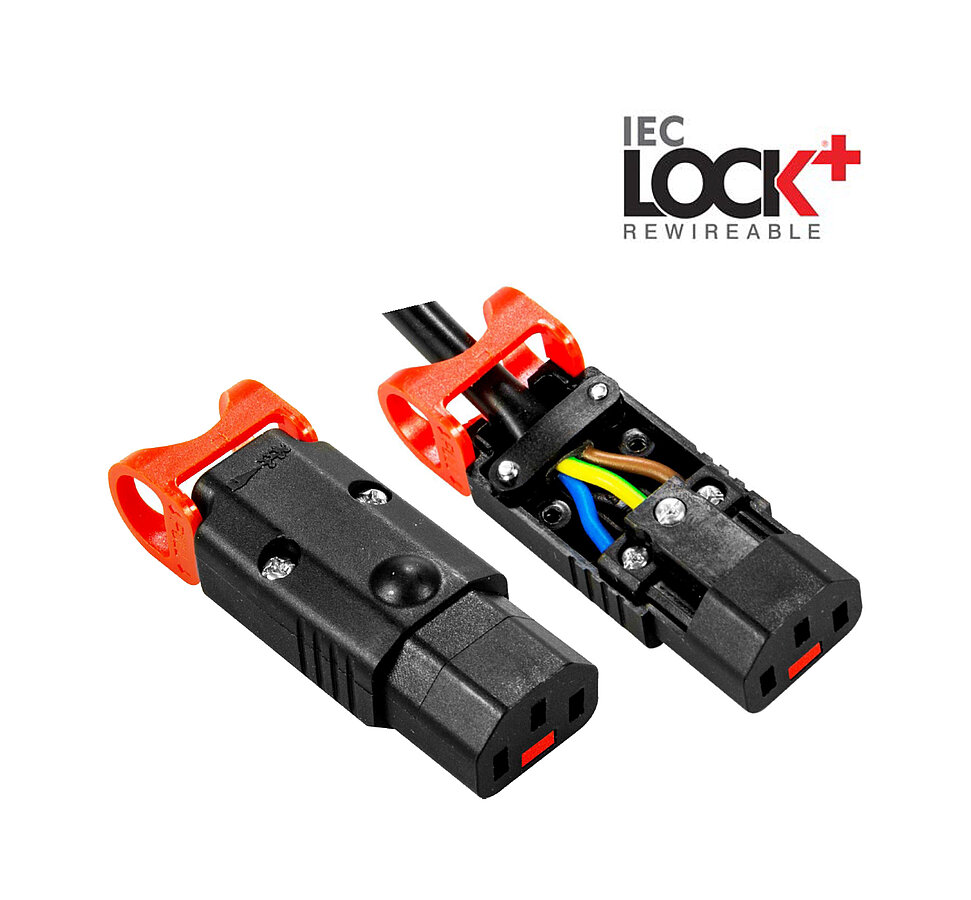

IL 13P Rewireable IEC C13 Locking Connector

IL 13P IEC C13 Rewireable Connectors with Locking System

The locking system has a tensile force of typical 300N. It is recommended to use it with flange mount filters. For details refer to our Application Note "Using IEC Lock Power Cords with IEC Inlets and Filters".


Schaffner power connector with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet. No exchange or modification of the IEC inlet or IEC inlet filter system is needed. Easy retrofit .for all electronic equipments and devices

Features and Benefits

Power cord connector with locking system for IEC inlets
Suitable for use with any C14 IEC inlet
Fits the complete Schaffner IEC inlet filter program with C14 IEC inlet
Max. pin temperature 70°C

Typical Applications

Data centers
Industrial equipment
Medical devices
In-vitro diagnostic devices
Broadcasting stations
Mobile applications

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

High potential test voltage

P–> PE 2000 VAC (1min 50 Hz)

P –> N 2000 VAC (1min 50 Hz)

Temperature range (operation and storage)

-25 °C to +70 °C

Protection category

IP20 according IEC 60529

Approvals by rated current

1 to 10 A (ENEC)

1 to 15 A (UL, CSA)

Approvals & Compliances

C CSA US Label
KEMA-KEUR Label
PSE Label
RoHS Label
UL Recognized Label

Patents: EU Patent No. EP 14594121
