Power Cords with Locking System IL 13, 13 P, 19

Power Cord with Locking System for Inlet Filters IL 13, IL 13 P, IL 19

IL 13, 13 P, 19

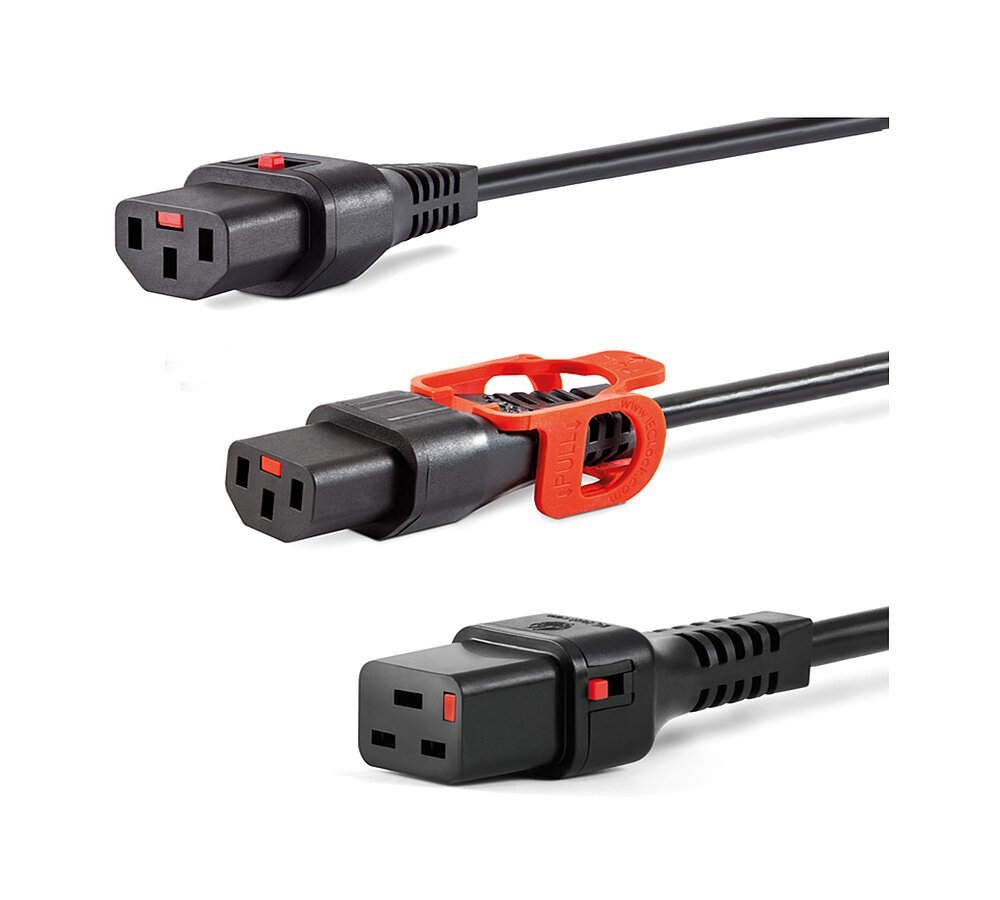

Power Cord with Locking System for Inlet Filters IL 13, IL 13 P, IL 19

  • Locking system for standardized IEC C14/C20 inlet filter
  • No accidental disconnection
  • Rated current up to 10 A (C13 plug), up to 15 A (C13P plug), and up to 20 A (C19 plug)
  • Fits any Schaffner IEC C14/C20 inlet filter
  • Retrofit for any IEC C14/C20 inlet
  • Various power line plugs for international usage

Features and Benefits

Power cord with locking system for IEC inlets
Protection class I (IL 13, IL 13 P)
Suitable for use with any C14 IEC inlet (IL 13, IL 13 P) and C20 IEC inlet (IL 19)
Fits the complete Schaffner IEC inlet filter program with C14 IEC inlet and C20 IEC inlet (IL 19)
Max. pin temperature 70°C

Typical Applications

Data centers
Industrial equipment
Medical devices
In-vitro diagnostic devices
Broadcasting stations
Mobile applications

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

10 A for C13 plug, 15 A for C13P plug

Operating frequency

DC to 60 Hz

High potential test voltage

P–> PE 2000 VAC (1 min 50 Hz)

P –> N 2000 VAC (1 min 50 Hz)

Temperature range (operation and storage)

-25°C to +70°C

Protection category

IP 20 according IEC 60529

Flammability corresponding to

Plugs: UL 94 V-2 or better

Cable: IEC 60332-1 Cat. F2

Connector (load side)

IEC C13 according to IEC/EN 60320-2-2 with IEC

Lock UL 498, CSA C22.2 no. 42 (for cold conditions)

pin temp. 70°C, up to 15 A, Protection Class I

Connector (line side) and cables

Please refer to table on page 2 and 3

Approvals & Compliances

KEMA-KEUR Label
UL Recognized Label
CSA Label
RoHS Label
