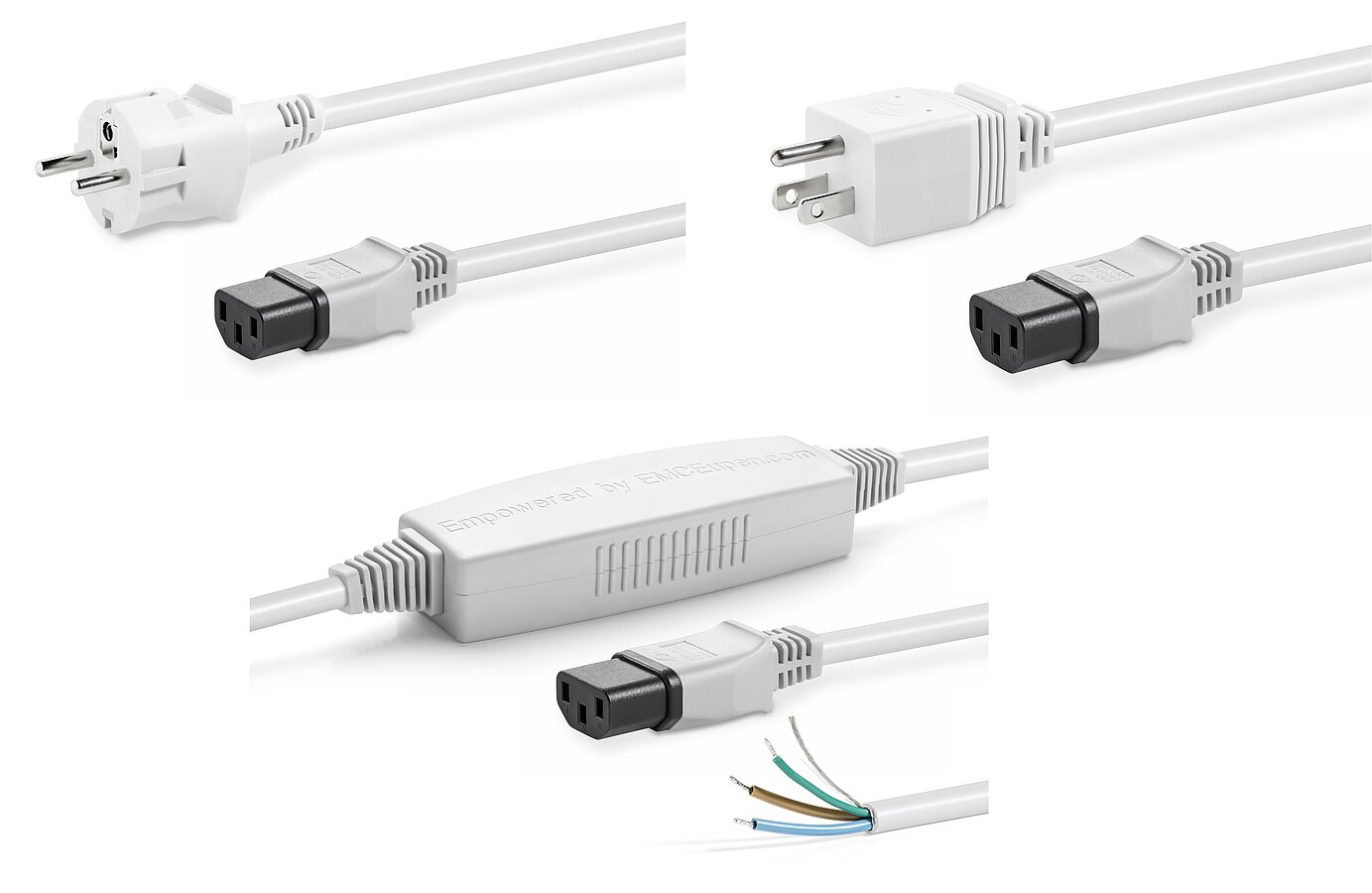

Power Cord Input EMC Filter IF 13
- High frequency attenuation
- Shielding and ferrite cable
- Easy to integrate in any design
- Retrofit for any IEC C14 inlet
- Rated current up to 10A
- Various powerline plugs for international usage
Features and Benefits
Easy to implement, no redesign required
Typical Applications
All cord connected applications
Technical Specifications
Maximum continuous operating voltage
250 VAC (120V for US plug version), 50/60 Hz
Nominal operating voltage
230 VAC
High potential test voltage
IF13-SE: P -> N 1200 VDC (1 min)
P+N -> PE 2100 VDC (1 min)
IF13-SE: P+N -> PE 2100 VAC (1 min 50Hz)
P -> N 2100 VDC (1 min)
Temperature range (operation and storage)
-25°C to +70°C
Protection category
IP 20 according IEC 60529
Flammability corresponding to
Cable: UL VW-1
Connector (load side)
IEC C13 according to IEC/EN 60320-2-2 stripped ends
Connector (line side) and cables
Schuko Plug CEE7/VII
US NEMA5-15 plug standard
stripped ends
