Power Entry Module with EMC- Filter FN9280

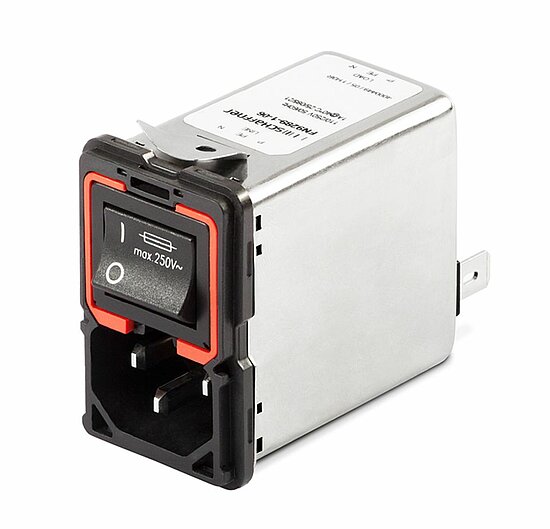

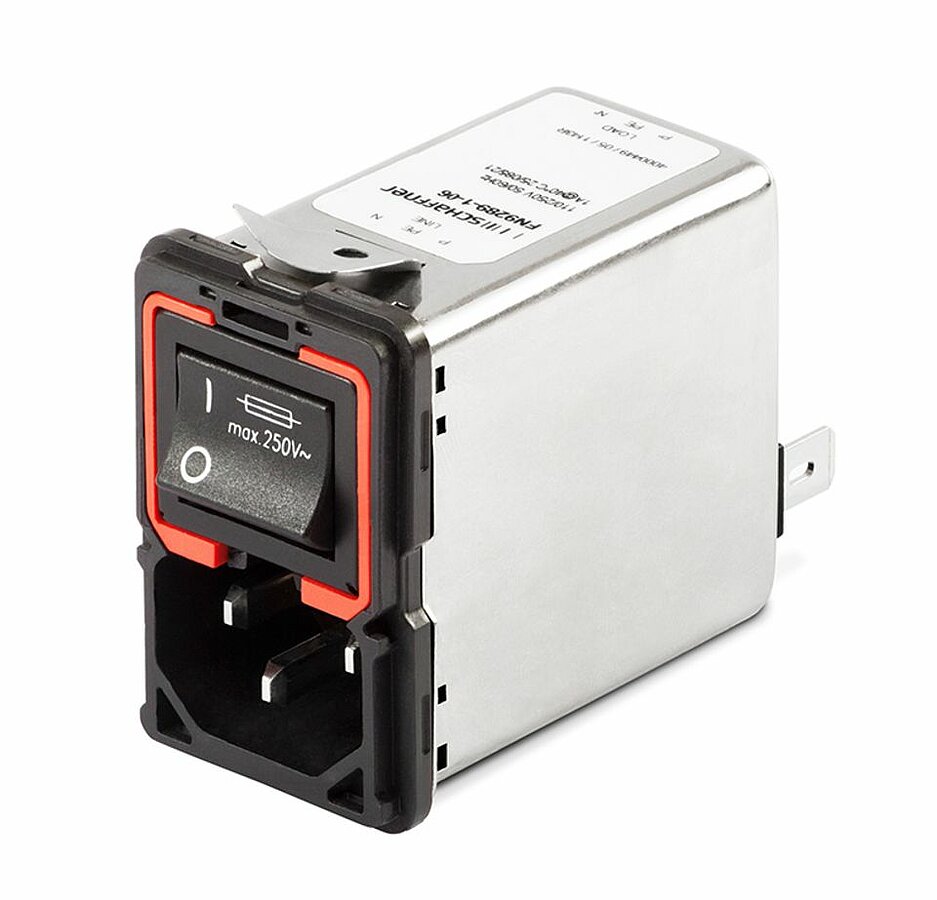

Ultra Compact and Versatile Filtered Power Entry Module

Most important files and data about the product you can take over here.


Ultra Compact and Versatile Filtered Power Entry Module

  • Single stage filter
  • Ultra compact design
  • Rated currents up to 10 A
  • dual-fuse holder
  • Fuses Ø5x20 mm
  • 2-pole rocker switch
  • Good attenuation performance
  • Faston or spring cage terminals

Features and Benefits

Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
Deep-drawn iron-sheet housing for best possible shielding against magnetic fields
Rear/front flange mounting or snap-in versions
Dual  and additional spare fuse holder
2-pole rocker switch
Faston or spring cage terminals
FN 928X B versions comply with the requirements of 1MOP acc. to  IEC/EN 60601-1
All versions according IEC/EN 62368­-1

Typical applications

Portable electrical and electronic equipment
Consumer goods
EDP and office equipment
Single-phase and switch-mode power supplies
Test and measurement equipment
Medical electrical devices (MD) and In-Vitro-Diagnostics (IVD) equipment
Audio/Video, information and communication technologies

Technical specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 760 VAC for 2 sec

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, EN 60939, EN 60950, EN 60601-1, UL 544, EN 60320

Flammability corresponding to

UL 94 V-2 or better

Temperature range (operation and storage)

– 25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529 (front side)

MTBF @ 40°C/230 V (Mil-HB-217F)

>1,000,000 hours

Switch ratings


USA (UL) and Canada (C-UL)

10 A, 125 VAC; 10 A, 250 VAC; 1/3 HP

Europe (ENEC)

10 A (4 A), 250 VAC**

Mechanical life

50,000 cycles

Electrical specifications

Inrush current 82 A

6,000 on-off operations according to UL 1054

10,000 on-off operations according to ENEC

Fuse holder

2 fuses (Ø5 x 20 mm) max. 250 V (certified to IEC 60127-6)

Rated currents

1 to 10 A

* 10 A version is 8 A UL and CSA approved ** Value in () relates to the inductive current charge: cos γ = 0.65

Typical electrical schematic


Approvals & Compliances

UL Recognized Label
CSA Label
ENEC 14 Label
CQC Label
RoHS Label
CE Label
UKCA Label

(CQC except HI-types; Patent US 20110227692/US 8766761; CN ZL201080069589.0)
