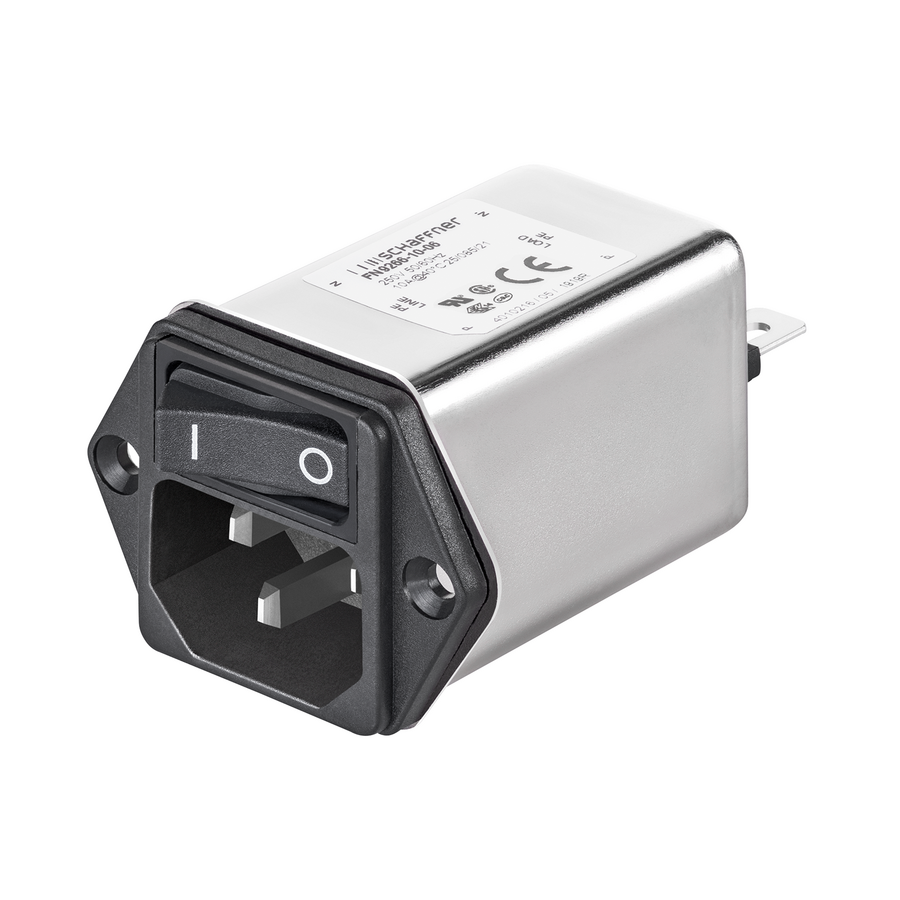

Power Entry Module with EMC- Filter FN9266

High Performance Power Entry Module with Switch

FN9266

High Performance Power Entry Module with Switch

  • Rated currents up to 10 A
  • High quality 2-pole rocker switch
  • Optional reduced leakage current versions (A/B type)
  • Complies with IEC/EN 60601-1
  • Snap-in versions (S type)
  • High attenuation performance

Articles

Article Rated Current @ambient Leakage current IEC60939 Inductance Capacitance Resistance Distribution stock Compare Read More
L1 Cx1 (µF) Cy1 (nF)
FN9266SA-1-06 FN9266SA-1-06 10.07400.150.151000
FN9266-1-06 FN9266-1-06 10.31400.152.21000
FN9266-2-06 FN9266-2-06 20.31200.152.21000
FN9266-4-06 FN9266-4-06 40.3170.152.21000
FN9266-6-06 FN9266-6-06 60.3130.152.21000
FN9266-10-06 FN9266-10-06 100.311.150.152.21000
FN9266S-1-06 FN9266S-1-06 10.31400.152.21000
FN9266S-2-06 FN9266S-2-06 20.31200.152.21000
FN9266S-4-06 FN9266S-4-06 40.3170.152.21000
FN9266S-6-06 FN9266S-6-06 60.3130.152.21000
FN9266S-10-06 FN9266S-10-06 100.311.150.152.21000
FN9266A-1-06 FN9266A-1-06 10.07400.150.151000
FN9266A-2-06 FN9266A-2-06 20.07200.150.151000
FN9266A-4-06 FN9266A-4-06 40.0770.150.151000
FN9266A-6-06 FN9266A-6-06 60.0730.150.151000
FN9266A-10-06 FN9266A-10-06 100.071.150.150.151000
FN9266S-10-06-30 FN9266S-10-06-30 100.311.150.152.21000
FN9266SA-2-06 FN9266SA-2-06 20.07200.150.151000
FN9266SA-4-06 FN9266SA-4-06 40.0770.150.151000
FN9266SA-6-06 FN9266SA-6-06 60.0730.150.151000
FN9266SA-10-06 FN9266SA-10-06 100.071.150.150.151000
FN9266B-1-06 FN9266B-1-06 10400.151000
FN9266B-2-06 FN9266B-2-06 20200.151000
FN9266B-4-06 FN9266B-4-06 4070.151000
FN9266B-6-06 FN9266B-6-06 6030.151000
FN9266B-10-06 FN9266B-10-06 1001.150.151000
FN9266SB-1-06 FN9266SB-1-06 10400.151000
FN9266SB-2-06 FN9266SB-2-06 20200.151000
FN9266SB-4-06 FN9266SB-4-06 4070.151000
FN9266SB-6-06 FN9266SB-6-06 6030.151000
FN9266SB-10-06 FN9266SB-10-06 101.150.151000

Features and Benefits

Excellent conducted attenuation performance, based on chokes with high saturation resistance and good thermal behavior
High quality 2-pole rocker switch for all-pole disconnection
Faston terminals for easy assembly
FN 9266 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
As flange mount and snap-in types available

Typical Applications

Medical electrical devices (MD) and In-Vitro Diagnostic (IVD) medical devices
Portable electrical and electronic equipment
EDP and office equipment
Single-phase power supplies
Switch-mode power supplies
Test and measurement equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 10 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (Standard)

P –> PE 2500 VAC for 2 sec (B-types)

P –> N 760 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Switch plastic: UL 94 V-0

Inlet plastic: UL 94 V-0

Design corresponding to

UL 60939-3, CSA Std C22.2 No. 8, IEC/EN 60939-3, GB/T 15287, GB/T 15288

MTBF (Mil-HB-217F)

>2,100,000 h @ 40°C/230 V

Switch ratings

&nbsp

Function

2-pole, dark not illuminated

Marking I – 0

Electrical specifications

Inrush current 100 A

50,000 on-off operations for 10 A according to EN 610581-1

Europe (ENEC)

10 A (4 A), 250 VAC* 5E4

16 A (4 A), 250 VAC* 1E4

USA (UL)

20 A, 125 VAC 1 HP

250 VAC 2 HP

* Value in () relates to the inductive current charge: cos(phi) = 0.65

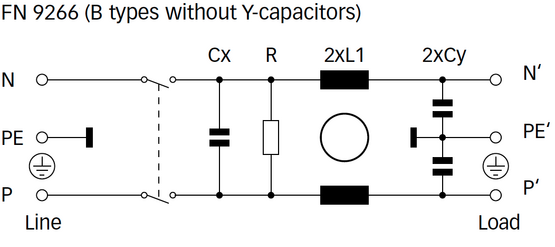

Typical electrical schematic

FN9266

Approvals & Compliances

ENEC 14 Label
UL Recognized Label
CSA Label
CQC Label
RoHS Label
CE Label
UKCA Label
