Product Overview

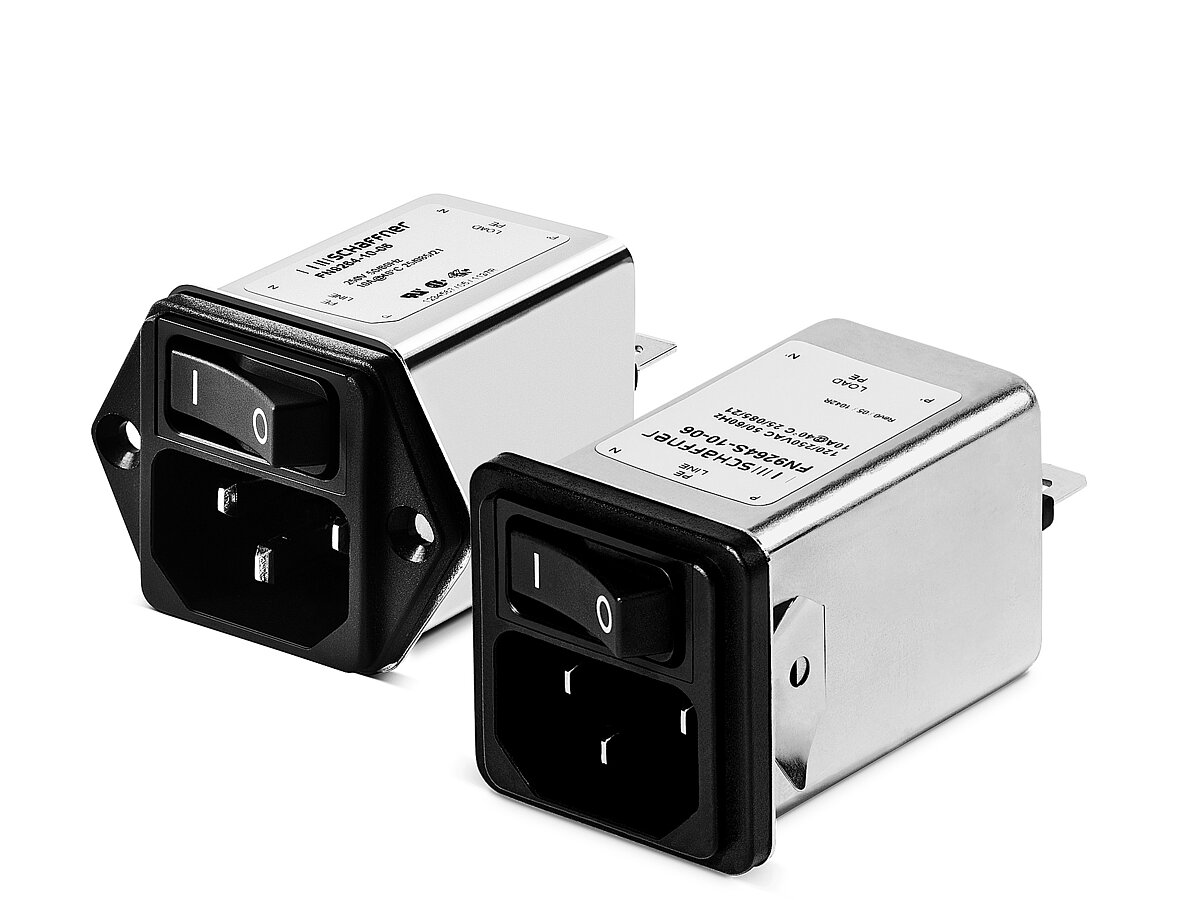

General Purpose Power Entry Module with Switch
- Rated currents up to 10 A
- High quality 2-pole rocker switch
- Optional reduced leakage current versions (A/B type)
- Complies with IEC/EN 60601-1
- Snap-in versions (S type)
- Good attenuation performance
Articles
| Article | Rated Current @ambient | Leakage current IEC60939 | Inductance | Capacitance | Resistance | Distribution stock | Compare | Read More | ||
|---|---|---|---|---|---|---|---|---|---|---|
| L1 | Cx1 (µF) | Cy1 (nF) | ||||||||
 | FN9264S1B-1-06 | 1 | 0.31 | 5.15 | 0.1 | 2.2 | 1000 | |||
| FN9264S1-4-06 | 4 | 0.31 | 1 | 0.1 | 2.2 | 1000 | |||
| FN9264S1-6-06 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264SB-1-06 | 1 | 0.31 | 5.15 | 0.1 | 2.2 | 1000 | |||
| FN9264S1-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264SB-2-06 | 2 | 0.31 | 2.7 | 0.1 | 2.2 | 1000 | |||
| FN9264SB-4-06 | 4 | 0.31 | 1 | 0.1 | 2.2 | 1000 | |||
| FN9264SB-6-06 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264SB-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264B-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264S1B-2-06 | 2 | 0.31 | 2.7 | 0.1 | 2.2 | 1000 | |||
| FN9264S1B-4-06 | 4 | 0.31 | 1 | 0.1 | 2.2 | 1000 | |||
| FN9264S1B-6-06 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264S1B-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264-3-06 | 3 | 0.31 | 2 | 2.2 | 1000 | ||||
| FN9264S-6-06-30 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264-1-06 | 1 | 0.31 | 5.15 | 0.1 | 2.2 | 1000 | |||
| FN9264S1-2-06 | 2 | 0.31 | 2.7 | 0.1 | 2.2 | 1000 | |||
| FN9264S-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264S1-1-06 | 1 | 0.31 | 5.15 | 0.1 | 2.2 | 1000 | |||
| FN9264B-6-06 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264S-6-06 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264S-4-06 | 4 | 0.31 | 2 | 0.1 | 2.2 | 1000 | |||
| FN9264B-4-06 | 4 | 0.31 | 1 | 0.1 | 2.2 | 1000 | |||
| FN9264S-2-06 | 2 | 0.31 | 2.7 | 0.1 | 2.2 | 1000 | |||
| FN9264S-1-06 | 1 | 0.31 | 5.15 | 0.1 | 2.2 | 1000 | |||
| FN9264-10-06 | 10 | 0.31 | 0.21 | 0.1 | 2.2 | 1000 | |||
| FN9264B-2-06 | 2 | 0.31 | 2.7 | 0.1 | 2.2 | 1000 | |||
| FN9264-6-06 | 6 | 0.31 | 0.3 | 0.1 | 2.2 | 1000 | |||
| FN9264-4-06 | 4 | 0.31 | 1 | 0.1 | 2.2 | 1000 | |||
| FN9264B-1-06 | 1 | 0.31 | 5.15 | 0.1 | 2.2 | 1000 | |||
| FN9264-2-06 | 2 | 0.31 | 2.7 | 0.1 | 2.2 | 1000 | |||
Features and Benefits
Excellent conducted attenuation performance, based on chokes with high saturation resistance and good thermal behavior
Typical Applications
Portable electrical and electronic equipment
Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Nominal operating voltage
230 VAC
Rated currents
1 to 10 A @ 40°C
Operating frequency
DC to 400 Hz
High potential test voltage
P –> PE 2000 VAC for 2 sec (Standard)
P –> PE 2500 VAC for 2 sec (B-types)
P –> N 760 VAC for 2 sec
Temperature range (operation and storage)
-25°C to +85°C (25/85/21)
-25°C to +85°C (25/85/21)
Protection category
IP 40 according to IEC 60529
Flammability corresponding to
UL 94 V-2 or better
Design corresponding to
UL 60939-3, CSA Std C22.2 No. 8, IEC/EN 60939-3, GB/T15287, GB/T15288
MTBF (Mil-HB-217F)
>616,000 h @ 40°C/230 V
Switch ratings

Function
2-pole, dark not illuminated
Marking I – 0
Electrical specifications
Inrush current 100 A
50,000 on-off operations for 10 A according to EN 610581-1
Europe (ENEC)
10 A (4 A), 250 VAC* 5E4
USA (UL)
20 A, 125 VAC 1 HP
250 VAC 2 HP
* Value in () relates to the inductive current charge: cos(phi) = 0.65

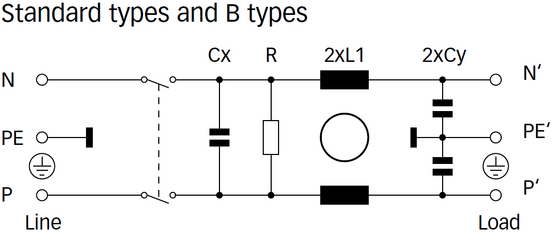

Typical electrical schematic
