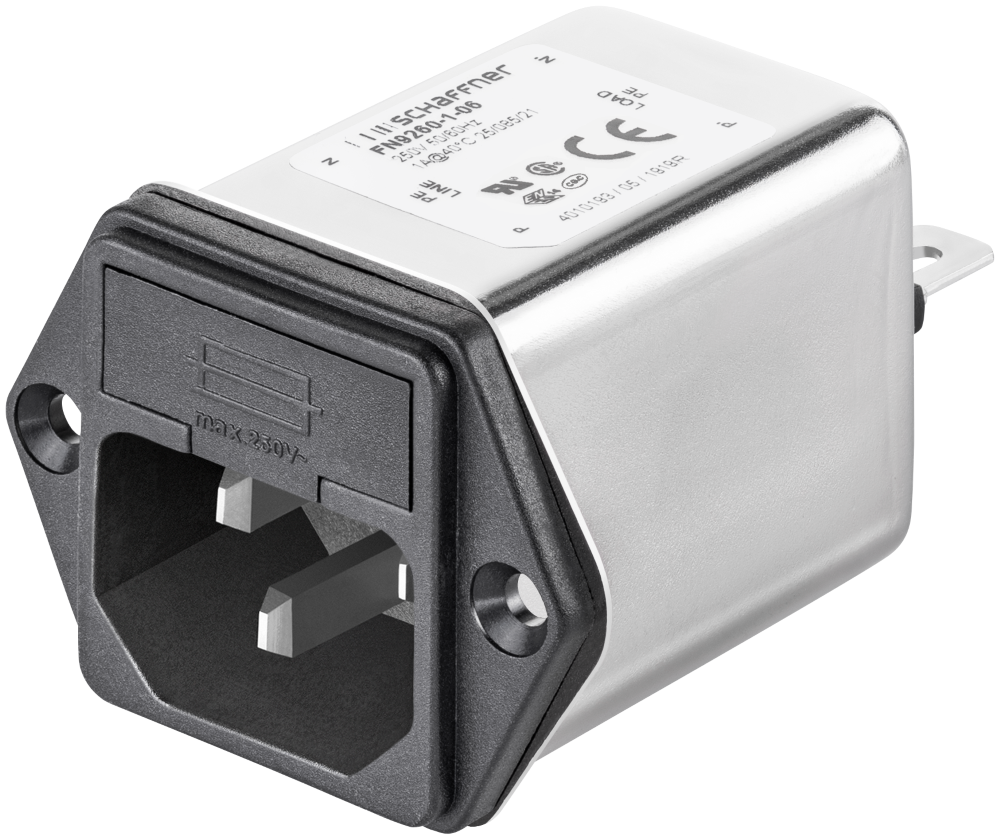

Power Entry Module with EMC- Filter FN9260/FN261

General Purpose Power Entry Module with Fuses


General Purpose Power Entry Module with Fuses

  • Rated currents up to 10 A
  • Integrated single/dual fuse holder
  • Optional reduced leakage current versions (A/B type)
  • Complies with IEC/EN 60601-1
  • Snap-in versions (S type)
  • Good attenuation performance
  • NEW: Wire leads option

Features and Benefits

Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
FN9260 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
Versions up to 10 A are available with fuse holder for one or two fuses
Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment
Medical equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 10 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 760 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Fuseholder plastic: UL 94 V-0

Inlet plastic: UL 94 V-0

Fuseholder plastic: UL 94 V-0

Design corresponding to

UL 60939-3, CSA Std C22.2 No. 8-13, IEC/EN 60939-3, GB/T15287, GB/T15288

MTBF (Mil-HB-217F)

>2,200,000 h @ 40°C/230 V

Fuse holder

1 or 2 fuses (Ø5 x 20 mm) (certified to IEC 60127-6), power acceptance 1.6W @ Ta 23°C per pole for 2 fuses. 2.5W, if only 1 pole is used.
