CE FN92XX-Inlet

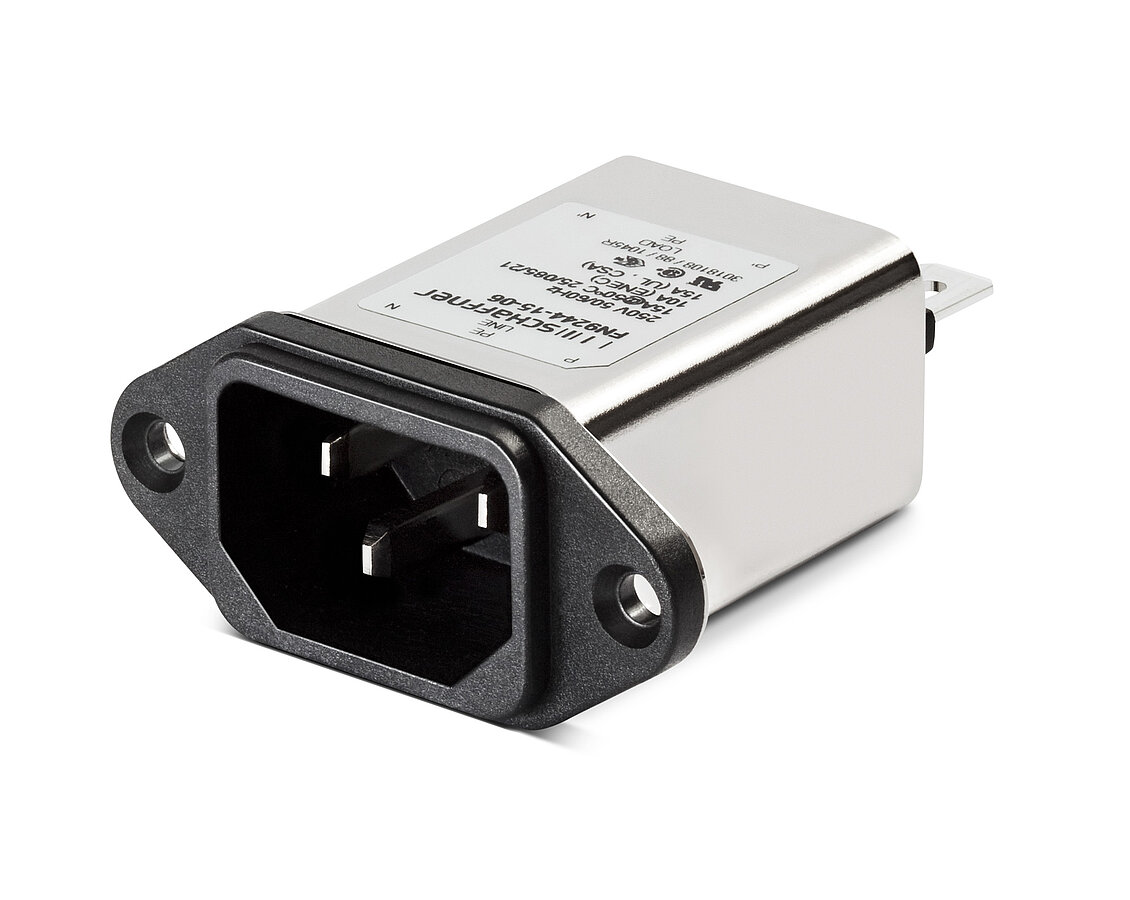

Excellent Performance EMC/RFI Filter

Superior attenuation performance
Optional earth line choke
Complies with IEC/EN 60601-1 (B type)
Snap-in versions (S and S1 type)
Hot inlet versions (HI type)

Articles

Article	Rated Current @ambient	Leakage current IEC60939	Inductance	Capacitance		Resistance	Distribution stock	Compare	Read More
Article	Rated Current @ambient	Leakage current IEC60939	L1	Cx1 (µF)	Cy1 (nF)	Resistance	Distribution stock	Compare	Read More
FN9244-3-06	3	0.31	13.45	0.1	2.2
FN9244R-12-06HI	12	0.31	0.58	0.1	2.2	1000
FN9244R-15-06HI	15	0.31	0.4	0.1	2.2	1000
FN9244U-1-06	1	0.31	59.53	0.1	2.2
FN9244U-3-06	3	0.31	13.45	0.1	2.2
FN9244U-6-06	6	0.31	4.1	0.1	2.2	-6
FN9244U-8-06	8	0.31	2.3	0.1	2.2	-6
FN9244U-10-06	10	0.31	1.02	0.1	2.2
FN9244U-12-06	12	0.31	0.58	0.1	2.2
FN9244U-15-06	15	0.31	0.4	0.1	2.2
FN9244U-12-06HI	12	0.31	0.58	0.1	2.2
FN9244U-15-06HI	15	0.31	0.4	0.1	2.2
FN9244R-15-06	15	0.31	0.4	0.1	2.2	1000
FN9244-6-06	6	0.31	4.1	0.1	2.2	-6
FN9244S-1-06	1	0.31	59.53	0.1	2.2
FN9244S-3-06	3	0.31	13.45	0.1	2.2
FN9244S-6-06	6	0.31	4.1	0.1	2.2	-6
FN9244S-8-06	8	0.31	2.3	0.1	2.2	-6
FN9244S-10-06	10	0.31	1.02	0.1	2.2
FN9244S-12-06	12	0.31	0.58	0.1	2.2
FN9244S-15-06	15	0.31	0.4	0.1	2.2
FN9244S1-1-06	1	0.31	59.53	0.1	2.2
FN9244S1-3-06	3	0.31	13.45	0.1	2.2
FN9244S1-6-06	6	0.31	4.1	0.1	2.2	-6
FN9244B-10-06	10	0	1.02	0.1		1000
FN9244-1-06	1	0.31	59.53	0.1	2.2
FN9244-8-06	8	0.31	2.3	0.1	2.2	-6
FN9244-10-06	10	0.31	1.02	0.1	2.2
FN9244-12-06	12	0.31	0.58	0.1	2.2
FN9244-15-06	15	0.31	0.4	0.1	2.2
FN9244-12-06HI	12	0.31	0.58	0.1	2.2
FN9244-15-06HI	15	0.31	0.4	0.1	2.2
FN9244B-1-06	1	0	59.53	0.1		1000
FN9244B-3-06	3	0	13.45	0.1		1000
FN9244B-6-06	6	0	4.1	0.1		1000
FN9244B-8-06	8	0	2.3	0.1		1000
FN9244S1-8-06	8	0.31	2.3	0.1	2.2	-6
FN9244B-12-06	12	0	0.58	0.1		1000
FN9244B-15-06	15	0	0.4	0.1		1000
FN9244B-12-06HI	12	0	0.58	0.1		1000
FN9244B-15-06HI	15	0	0.4	0.1		1000
FN9244R-1-06	1	0.31	59.53	0.1	2.2	1000
FN9244R-3-06	3	0.31	13.45	0.1	2.2	1000
FN9244R-6-06	6	0.31	4.1	0.1	2.2	1000
FN9244R-8-06	8	0.31	2.3	0.1	2.2	1000
FN9244R-10-06	10	0.31	1.02	0.1	2.2	1000
FN9244R-12-06	12	0.31	0.58	0.1	2.2	1000
FN9244SR-6-07-190	6	0.31
FN9244SR-15-06	15	0.31	0.4	0.1	2.2	1000
FN9244S1R-1-06	1	0.31	59.53	0.1	2.2	1000
FN9244S1R-3-06	3	0.31	13.45	0.1	2.2	1000
FN9244S1R-6-06	6	0.31	4.1	0.1	2.2	1000
FN9244S1R-8-06	8	0.31	2.3	0.1	2.2	1000
FN9244S1R-10-06	10	0.31	1.02	0.1	2.2	1000
FN9244S1R-12-06	12	0.31	0.58	0.1	2.2	1000
FN9244S1R-15-06	15	0.31	0.4	0.1	2.2	1000
FN9244S-3-06-20	3	0.31	13.45	0.1	2.2
FN9244S1R-15-06-20	15	0.31	0.4	0.1	2.2	1000
FN9244SB-10-06-20	10	0	1.02	0.1		1000
FN9244SR-12-06	12	0.31	0.58	0.1	2.2	1000
FN9244S-6-06-20	6	0.31	4.1	0.1	2.2	-6
FN9244SR-6-07-260	6	0.31
FN9244S-8-06-20	8	0.31	2.3	0.1	2.2	-6
FN9244SR-1-06-20	1	0.31	59.53	0.1	2.2	1000
FN9244SR-6-07-350	6	0.31
FN9244S-10-06-20	10	0.31	1.02	0.1	2.2
FN9244U-10-07-610	10	0.31
FN9244-6-07	6	0.31
FN9244R-3-07	3	0.31
FN9244SR-6-07	6	0.31
FN9244SR-6-07-20	6	0.31
FN9244S1B-3-06	3	0	13.45	0.1		1000
FN9244S1-10-06	10	0.31	1.02	0.1	2.2
FN9244S1-12-06	12	0.31	0.58	0.1	2.2
FN9244S1-15-06	15	0.31	0.4	0.1	2.2
FN9244SB-1-06	1	0	59.53	0.1		1000
FN9244SB-3-06	3	0	13.45	0.1		1000
FN9244SB-6-06	6	0	4.1	0.1		1000
FN9244SB-8-06	8	0	2.3	0.1		1000
FN9244SB-10-06	10	0	1.02	0.1		1000
FN9244SB-12-06	12	0	0.58	0.1		1000
FN9244SB-15-06	15	0	0.4	0.1		1000
FN9244S1B-1-06	1	0	59.53	0.1		1000
FN9244S-3-07-610	3	0.31
FN9244S1B-6-06	6	0	4.1	0.1		1000
FN9244S1B-8-06	8	0	2.3	0.1		1000
FN9244S1B-10-06	10	0	1.02	0.1		1000
FN9244S1B-12-06	12	0	0.58	0.1		1000
FN9244S1B-15-06	15	0	0.4	0.1		1000
FN9244SR-1-06	1	0.31	59.53	0.1	2.2	1000
FN9244SR-3-06	3	0.31	13.45	0.1	2.2	1000
FN9244SR-6-06	6	0.31	4.1	0.1	2.2	1000
FN9244SR-8-06	8	0.31	2.3	0.1	2.2	1000
FN9244SR-10-06	10	0.31	1.02	0.1	2.2	1000

Features and Benefits

Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior

Rear/front or snap-in mounting

Standard or wide mounting flange

FN 9244 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing

Optional earth line choke see FN 9244 E data sheet

Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment

Small to medium-sized machines and household equipment

Single-phase power supplies, switch-mode power supplies

Test and measurement equipment

Medical devices (MDD)

In-vitro diagnostic medical devices (IVDD)

Rack mounting equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 15 A @ 50°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1000 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Plastic material: UL 94 V0

Approvals by rated current

1 to 10 A (ENEC, CQC)

1 to 15 A (UL, CSA)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

≤8 A:>2,035,000 h @ 50°C/230 V

≥10 A:>1,035,000 h @ 50°C/230 V

Typical electrical schematic
