FN9233E | Schaffner Holding AG

Product Overview

Downloads

Safety and Installation Guidelines

CE FN92XX-Inlet

High Performance EMC/RFI Filter with Earth Line Choke

Rated currents up to 15 A
Excellent attenuation performance
Integrated earth line choke
Complies with IEC/EN 60601-1
Snap-in versions (S and S1 type)
Hot inlet versions (HI type)

Articles

Article	Rated Current @ambient	Leakage current IEC60939	Inductance		Capacitance		Resistance	Input/Output connections (Nm)		Distribution stock	Compare	Read More
Article	Rated Current @ambient	Leakage current IEC60939	L1	L2	Cx1 (µF)	Cy1 (nF)	Resistance	Input terminal	Output terminal	Distribution stock	Compare	Read More
FN9233ES-6-06	6	0.31	1.6	0.4	0.1	2.2		IEC	FASTON
FN9233ER-6-06	6	0.31	1.6	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ER-8-06	8	0.31	0.9	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ER-10-06	10	0.31	0.45	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ER-12-06	12	0.31	0.27	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ER-15-06	15	0.31	0.2	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ER-12-06HI	12	0.31	0.27	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ER-15-06HI	15	0.31	0.2	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ES-1-06	1	0.31	22.5	0.4	0.1	2.2		IEC	FASTON
FN9233ES-3-06	3	0.31	4.6	0.4	0.1	2.2		IEC	FASTON
FN9233ER-3-06	3	0.31	4.6	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES-8-06	8	0.31	0.9	0.4	0.1	2.2		IEC	FASTON
FN9233ES-10-06	10	0.31	0.45	0.4	0.1	2.2		IEC	FASTON
FN9233ES-12-06	12	0.31	0.27	0.1	0.1	2.2		IEC	FASTON
FN9233ES-15-06	15	0.31	0.2	0.1	0.1	2.2		IEC	FASTON
FN9233ES1-1-06	1	0.31	22.5	0.4	0.1	2.2		IEC	FASTON
FN9233ES1-3-06	3	0.31	4.6	0.4	0.1	2.2		IEC	FASTON
FN9233ES1-6-06	6	0.31	1.6	0.4	0.1	2.2		IEC	FASTON
FN9233ES1-8-06	8	0.31	0.9	0.4	0.1	2.2		IEC	FASTON
FN9233ES1-10-06	10	0.31	0.45	0.4	0.1	2.2		IEC	FASTON
FN9233EB-1-06	1	0	22.5	0.4	0.1		1000	IEC	FASTON
FN9233E-1-06	1	0.31	22.5	0.4	0.1	2.2		IEC	FASTON
FN9233E-3-06	3	0.31	4.6	0.4	0.1	2.2		IEC	FASTON
FN9233E-6-06	6	0.31	1.6	0.4	0.1	2.2		IEC	FASTON
FN9233E-8-06	8	0.31	0.9	0.4	0.1	2.2		IEC	FASTON
FN9233E-10-06	10	0.31	0.45	0.4	0.1	2.2		IEC	FASTON
FN9233E-12-06	12	0.31	0.27	0.1	0.1	2.2		IEC	FASTON
FN9233E-15-06	15	0.31	0.2	0.1	0.1	2.2		IEC	FASTON
FN9233E-12-06HI	12	0.31	0.27	0.1	0.1	2.2		IEC	FASTON
FN9233E-15-06HI	15	0.31	0.2	0.1	0.1	2.2		IEC	FASTON
FN9233ES1-12-06	12	0.31	0.27	0.1	0.1	2.2		IEC	FASTON
FN9233EB-3-06	3	0	4.6	0.4	0.1		1000	IEC	FASTON
FN9233EB-6-06	6	0	1.6	0.4	0.1		1000	IEC	FASTON
FN9233EB-8-06	8	0	0.9	0.4	0.1		1000	IEC	FASTON
FN9233EB-10-06	10	0	0.45	0.4	0.1		1000	IEC	FASTON
FN9233EB-12-06	12	0	0.27	0.1	0.1		1000	IEC	FASTON
FN9233EB-15-06	15	0	0.2	0.1	0.1		1000	IEC	FASTON
FN9233EB-12-06HI	12	0	0.27	0.1	0.1		1000	IEC	FASTON
FN9233EB-15-06HI	15	0	0.2	0.1	0.1		1000	IEC	FASTON
FN9233ER-1-06	1	0.31	22.5	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-15-06	15	0.31	0.2	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ESR-10-06	10	0.31	0.45	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ESR-12-06	12	0.31	0.27	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ESR-15-06	15	0.31	0.2	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-1-06	1	0.31	22.5	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-3-06	3	0.31	4.6	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-6-06	6	0.31	1.6	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-8-06	8	0.31	0.9	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-10-06	10	0.31	0.45	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ES1R-12-06	12	0.31	0.27	0.1	0.1	2.2	1000	IEC	FASTON
FN9233ESR-8-06	8	0.31	0.9	0.4	0.1	2.2	1000	IEC	FASTON
FN9233EU-1-06	1	0.31	22.5	0.4	0.1	2.2		IEC	FASTON
FN9233EU-3-06	3	0.31	4.6	0.4	0.1	2.2		IEC	FASTON
FN9233EU-6-06	6	0.31	1.6	0.4	0.1	2.2		IEC	FASTON
FN9233EU-8-06	8	0.31	0.9	0.4	0.1	2.2		IEC	FASTON
FN9233EU-10-06	10	0.31	0.45	0.4	0.1	2.2		IEC	FASTON
FN9233EU-12-06	12	0.31	0.27	0.1	0.1	2.2		IEC	FASTON
FN9233EU-15-06	15	0.31	0.2	0.1	0.1	2.2		IEC	FASTON
FN9233EU-12-06HI	12	0.31	0.27	0.1	0.1	2.2		IEC	FASTON
FN9233EU-15-06HI	15	0.31	0.2	0.1	0.1	2.2		IEC	FASTON
FN9233ES1B-3-06	3	0	4.6	0.4	0.1		1000	IEC	FASTON
FN9233ES1-15-06	15	0.31	0.2	0.1	0.1	2.2		IEC	FASTON
FN9233ESB-1-06	1	0	22.5	0.4	0.1		1000	IEC	FASTON
FN9233ESB-3-06	3	0	4.6	0.4	0.1		1000	IEC	FASTON
FN9233ESB-6-06	6	0	1.6	0.4	0.1		1000	IEC	FASTON
FN9233ESB-8-06	8	0	0.9	0.4	0.1		1000	IEC	FASTON
FN9233ESB-10-06	10	0	0.45	0.4	0.1		1000	IEC	FASTON
FN9233ESB-12-06	12	0	0.27	0.1	0.1		1000	IEC	FASTON
FN9233ESB-15-06	15	0	0.2	0.1	0.1		1000	IEC	FASTON
FN9233ES1B-1-06	1	0	22.5	0.4	0.1		1000	IEC	FASTON
FN9233EUB-6-06	3	0	1.6	0.4	0.1		1000	IEC	FASTON
FN9233ES1B-6-06	6	0	1.6	0.4	0.1		1000	IEC	FASTON
FN9233ES1B-8-06	8	0	0.9	0.4	0.1		1000	IEC	FASTON
FN9233ES1B-10-06	10	0	0.45	0.4	0.1		1000	IEC	FASTON
FN9233ES1B-12-06	12	0	0.27	0.1	0.1		1000	IEC	FASTON
FN9233ES1B-15-06	15	0	0.2	0.1	0.1		1000	IEC	FASTON
FN9233ESR-1-06	1	0.31	22.5	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ESR-3-06	3	0.31	4.6	0.4	0.1	2.2	1000	IEC	FASTON
FN9233ESR-6-06	6	0.31	1.6	0.4	0.1	2.2	1000	IEC	FASTON

Features and Benefits

Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior

Rear/front or snap-in mounting

Without earth line choke see FN 9233 data sheet

FN 9233 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing

Wide mounting flanges available

Different output connections offering maximum flexibility for assembly

Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment

Small to medium-sized machines and household equipment

Single-phase power supplies, switch-mode power supplies

Test and measurement equipment

Medical equipment

Rack mounting equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 15 A @ 50°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1000 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Plastic material: UL 94 V0

Approvals by rated current

1 to 10 A (ENEC, CQC)

1 to 15 A (UL, CSA)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>1,710,000 h @ 50°C/230 V

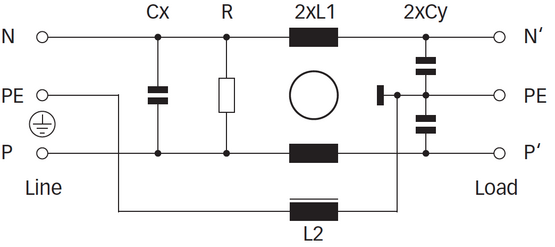

Typical electrical schematic

Approvals & Compliances

(CQC except HI-types)
