General Performance IEC Inlet Filter

Rated currents up to 20 A
Excellent performance/size ratio
Optional medical versions (B type) according to IEC/EN 60601-1
Snap-in versions (S and S1 type)
Hot inlet versions (HI type)
Optional overvoltage protection (Z type)

Articles

Article	Rated Current @ambient	Leakage current IEC60939	Inductance	Capacitance		Resistance	Distribution stock	Compare	Read More
Article	Rated Current @ambient	Leakage current IEC60939	L1	Cx1 (µF)	Cy1 (nF)	Resistance	Distribution stock	Compare	Read More
FN9222-10-06	10	0.31	0.225	0.1	2.2
FN9222-10-07	10	0.31	0.225	0.1	2.2
FN9222-1-06	1	0.31	12	0.1	2.2
FN9222-1-07	1	0.31	12	0.1	2.2
FN9222-12-06	12	0.31	0.11	0.1	2.2
FN9222-12-06HI	12	0.31	0.11	0.1	2.2
FN9222-12-07	12	0.31	0.11	0.1	2.2
FN9222-12-07HI	12	0.31	0.11	0.1	2.2
FN9222-15-06	15	0.31	0.075	0.1	2.2
FN9222-15-06HI	15	0.31	0.075	0.1	2.2
FN9222-15-07	15	0.31	0.075	0.1	2.2
FN9222-15-07HI	15	0.31	0.075	0.1	2.2
FN9222-16-06	16	0.37	0.54	0.33	2.2
FN9222-20-06	20	0.37	0.4	0.33	2.2
FN9222-3-06	3	0.31	2.5	0.1	2.2
FN9222-3-07	3	0.31	2.5	0.1	2.2
FN9222-6-06	6	0.31	0.78	0.1	2.2
FN9222-6-07	6	0.31	0.78	0.1	2.2
FN9222-8-06	8	0.31	0.5	0.1	2.2
FN9222A-8-06	8	0.07	0.5	0.1	2.2
FN9222B-10-06	10	0	0.225	0.1	2.2	1000
FN9222B-10-07	10	0	0.225	0.1	2.2	1000
FN9222B-1-06	1	0	12	0.1	2.2	1000
FN9222B-1-07	1	0	12	0.1	2.2	1000
FN9222B-12-06	12	0	0.11	0.1	2.2	1000
FN9222B-12-06HI	12	0	0.11	0.1	2.2	1000
FN9222B-12-07	12	0	0.11	0.1	2.2	1000
FN9222B-12-07HI	12	0	0.11	0.1	2.2	1000
FN9222B-15-06	15	0	0.075	0.1	2.2	1000
FN9222B-15-06HI	15	0	0.075	0.1	2.2	1000
FN9222B-15-07	15	0	0.075	0.1	2.2	1000
FN9222B-15-07HI	15	0	0.075	0.1	2.2	1000
FN9222B-3-06	3	0	2.5	0.1	2.2	1000
FN9222B-3-07	3	0	2.5	0.1	2.2	1000
FN9222B-6-06	6	0	0.78	0.1	2.2	1000
FN9222B-6-07	6	0	0.78	0.1	2.2	1000
FN9222R-10-06	10	0.31	0.225	0.1	2.2	1000
FN9222R-10-07	10	0.31	0.225	0.1	2.2	1000
FN9222R-1-06	1	0.31	12	0.1	2.2	1000
FN9222R-1-07	1	0.31	12	0.1	2.2	1000
FN9222R-12-06	12	0.31	0.11	0.1	2.2	1000
FN9222R-12-06HI	12	0.31	0.11	0.1	2.2	1000
FN9222R-12-07	12	0.31	0.11	0.1	2.2	1000
FN9222R-12-07HI	12	0.31	0.11	0.1	2.2	1000
FN9222R-15-06	15	0.31	0.075	0.1	2.2	1000
FN9222R-15-06HI	15	0.31	0.075	0.1	2.2	1000
FN9222R-15-07	15	0.31	0.075	0.1	2.2	1000
FN9222R-15-07HI	15	0.31	0.075	0.1	2.2	1000
FN9222R-16-06	1	0.31	0.54	0.33	2.2	1000
FN9222R-20-06	20	0.31	0.4	0.33	2.2	1000
FN9222R-3-06	3	0.31	2.5	0.1	2.2	1000
FN9222R-3-07	3	0.31	2.5	0.1	2.2	1000
FN9222R-6-06	6	0.31	0.78	0.1	2.2	1000
FN9222R-6-07	6	0.31	0.78	0.1	2.2	1000
FN9222R-8-06	8	0.31	0.11	0.1	2.2	1000
FN9222RA-20-06	20	0.07	0.54
FN9222RA-6-06	6	0.07	0.4
FN9222RB-16-06	16	0	0.54	0.33		1000
FN9222RB-20-06	20	0	0.4	0.33		1000
FN9222S-10-06	10	0.31	0.225	0.1	2.2
FN9222S-10-07	10	0.31	0.225	0.1	2.2
FN9222S-1-06	1	0.31	12	0.1	2.2
FN9222S-1-06-20	1	0.31	12	0.1	2.2
FN9222S-1-07	1	0.31	12	0.1	2.2
FN9222S1-10-06	1	0.31	0.225	0.1	2.2
FN9222S1-10-07	10	0.31	0.225	0.1	2.2
FN9222S1-1-06	1	0.31	12	0.1	2.2
FN9222S1-1-07	1	0.31	12	0.1	2.2
FN9222S1-12-06	12	0.31	0.11	0.1	2.2
FN9222S1-12-07	12	0.31	0.11	0.1	2.2
FN9222S1-15-06	15	0.31	0.075	0.1	2.2
FN9222S1-15-07	15	0.31	0.075	0.1	2.2
FN9222S-12-06	12	0.31	0.11	0.1	2.2
FN9222S-12-07	12	0.31	0.11	0.1	2.2
FN9222S1-3-06	3	0.31	2.5	0.1	2.2
FN9222S1-3-07	3	0.31	2.5	0.1	2.2
FN9222S-15-06	15	0.31	0.075	0.1	2.2
FN9222S-15-07	15	0.31	0.075	0.1	2.2
FN9222S1-6-06	6	0.31	0.78	0.1	2.2
FN9222S1-6-07	6	0.31	0.078	0.1	2.2
FN9222S1-8-06	8	0.31	0.5	0.1	2.2
FN9222S1B-10-06	10	0	0.225	0.1		1000
FN9222S1B-10-07	10	0	0.225	0.1		1000
FN9222S1B-1-06	1	0	12	0.1		1000
FN9222S1B-1-07	1	0	12	0.1		1000
FN9222S1B-12-06	12	0	0.11	0.1		1000
FN9222S1B-12-07	12	0	0.11	0.1		1000
FN9222S1B-15-06	15	0	0.075	0.1		1000
FN9222S1B-15-07	15	0	0.075	0.1		1000
FN9222S1B-3-06	3	0	2.5	0.1		1000
FN9222S1B-3-07	3	0	2.5	0.1		1000
FN9222S1B-6-06	6	0	0.78	0.1		1000
FN9222S1B-6-07	6	0	0.78	0.1		1000
FN9222S1B-8-06	8	0	0.5	0.1		1000
FN9222S1R-10-06	10	0.31	0.225	0.1	2.2	1000
FN9222S1R-10-07	10	0.31	0.225	0.1	2.2	1000
FN9222S1R-1-06	1	0.31	12	0.1	2.2	1000
FN9222S1R-1-07	1	0.31	12	0.1	2.2	1000
FN9222S1R-12-06	12	0.31	0.11	0.1	2.2	1000
FN9222S1R-12-07	12	0.31	0.11	0.1	2.2	1000
FN9222S1R-15-06	15	0.31	0.075	0.1	2.2	1000
FN9222S1R-15-07	15	0.31	0.075	0.1	2.2	1000
FN9222S1R-3-06	3	0.31	2.5	0.1	2.2	1000
FN9222S1R-3-07	3	0.31	2.5	0.1	2.2	1000
FN9222S1R-6-06	6	0.31	0.78	0.1	2.2	1000
FN9222S1R-6-07	6	0.31	0.78	0.1	2.2	1000
FN9222S1R-8-06	8	0.31	0.5	0.1	2.2	1000
FN9222S-3-06	3	0.31	2.5	0.1	2.2
FN9222S-3-07	3	0.31	2.5	0.1	2.2
FN9222S-6-06	6	0.31	0.78	0.1	2.2
FN9222S-6-07	6	0.31	0.78	0.1	2.2
FN9222S-8-06	8	0.31	0.5	0.1	2.2
FN9222SB-10-06	10	0	0.225	0.1		1000
FN9222SB-10-07	10	0	0.225	0.1		1000
FN9222SB-1-06	1	0	12	0.1		1000
FN9222SB-1-07	1	0	12	0.1		1000
FN9222SB-12-06	12	0	0.11	0.1		1000
FN9222SB-12-07	12	0	0.11	0.1		1000
FN9222SB-15-06	15	0	0.075	0.1		1000
FN9222SB-15-07	15	0	0.075	0.1		1000
FN9222SB-3-06	3	0	2.5	0.1		1000
FN9222SB-3-07	3	0	2.5	0.1		1000
FN9222SB-6-06	6	0	0.78	0.1		1000
FN9222SB-6-07	6	0	0.78	0.1		1000
FN9222SR-10-06	10	0.31	0.225	0.1	2.2	1000
FN9222SR-10-07	10	0.31	0.225	0.1	2.2	1000
FN9222SR-1-06	1	0.31	12	0.1	2.2	1000
FN9222SR-1-07	1	0.31	12	0.1	2.2	1000
FN9222SR-12-06	12	0.31	0.11	0.1	2.2	1000
FN9222SR-12-07	12	0.31	0.11	0.1	2.2	1000
FN9222SR-15-06	15	0.31	0.075	0.1	2.2	1000
FN9222SR-15-07	15	0.31	0.075	0.1	2.2	1000
FN9222SR-3-06	3	0.31	2.5	0.1	2.2	1000
FN9222SR-3-07	3	0.31	2.5	0.1	2.2	1000
FN9222SR-6-06	6	0.31	0.78	0.1	2.2	1000
FN9222SR-6-07	6	0.31	0.78	0.1	2.2	1000
FN9222SR-8-06	8	0.31	0.5	0.1	2.2	1000
FN9222U-10-06	10	0.31	0.225	0.1	2.2
FN9222U-1-06	1	0.31	12	0.1	2.2
FN9222U-12-06	12	0.31	0.11	0.1	2.2
FN9222U-15-06	15	0.31	0.075	0.1	2.2
FN9222U-3-06	3	0.31	2.5	0.1	2.2
FN9222U-6-06	6	0.31	0.78	0.1	2.2
FN9222U-8-06	8	0.31	0.5	0.1	2.2
FN9222UB-15-06	15	0	0.075	0.1		1000
FN9222UB-3-06	3	0	2.5	0.1		1000
FN9222UZ-10-06	10	0.31	0.225	0.1	2.2
FN9222UZ-1-06	1	0.31	12	0.1	2.2
FN9222UZ-12-06	12	0.31	0.11	0.1	2.2
FN9222UZ-15-06	15	0.31	0.075	0.1	2.2
FN9222UZ-3-06	3	0.31	2.5	0.1	2.2
FN9222UZ-6-06	6	0.31	0.78	0.1	2.2
FN9222UZ-8-06	8	0.31	0.5	0.1	2.2

Features and Benefits

Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior

Rear/front or snap-in mounting

Wide mounting flanges available

FN 9222 B versions comply with the requirements of 1MOP acc. to IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing

12 and 15 A types with hot inlet available

Optional surge pulse protection

Different output connections offering maximum flexibility for assembly

Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment

Small to medium-sized machines and household equipment

Single-phase power supplies, switch-mode power supplies

Test and measurement equipment

Medical equipment

Rack mounting equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

1 to 20 A @ 50°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> N 250 VAC for 2 sec (all Z types)

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1000 VAC for 2 sec (1 to 10 A types, not Z types)

P –> N 1100 VDC for 2 sec (16 and 20 A types, not Z types)

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Protection category

IP 40 according to IEC 60529

Flammability corresponding to

Plastic Material: UL 94 V-0

Laces for -07 version: UL 94 VW-1

Approvals by rated current

1 to 10 A (ENEC, CQC)

16 A (ENEC, CQC) for 16 and 20 A types

1 to 20 A (UL, CSA)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (X to XX A, not Z types)

MTBF (Mil-HB-217F)

≤15 A:>3,040,000 h @ 50°C/230 V

≥16 A:>2,256,000 h @ 50°C/230 V

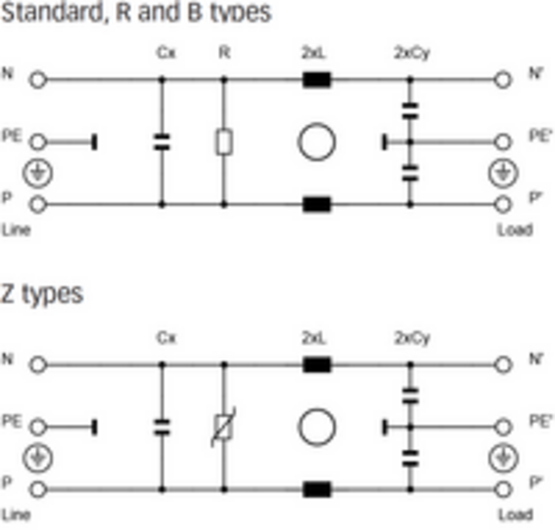

Typical electrical schematic

Approvals & Compliances

(CQC except HI-types)
