FN761X

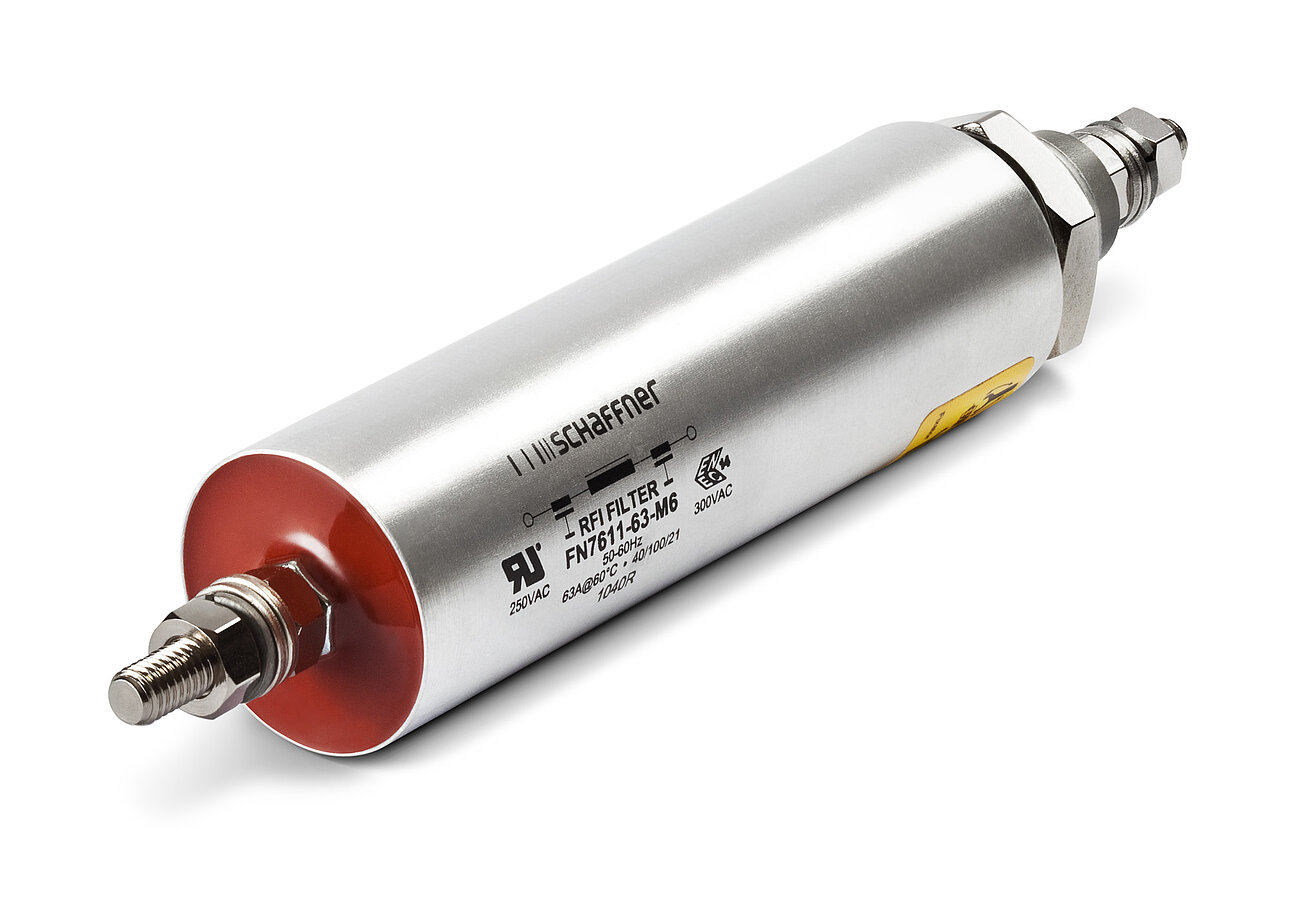

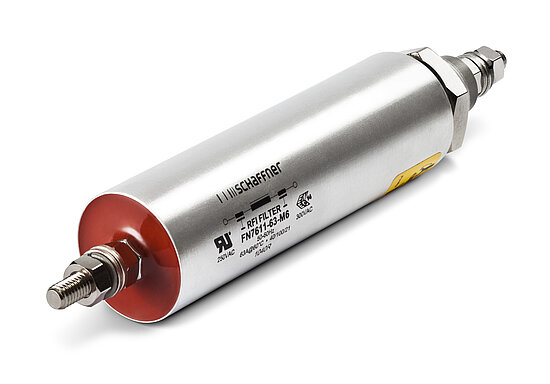

Feedthrough Filters FN761X

AC Feedthrough Filter

FN761X

AC Feedthrough Filter

  • IEC/EN 60939 approval
  • Rated currents from 10 to 63 A
  • 5 kV pulse test capability
  • Class Y2 capacitor

Features and Benefits

Very low internal series inductance
Very high self-resonant frequency
Self-healing dielectric
High quality and reliability
Through-bulkhead mounting
Anti-twist protection
Custom-specific or dual-versions on request

Typical Applications

Power line filter for 110/240 VAC power lines
Increasing system and information security
Power supplies
Switching and cellular equipment
Computer servers
UPS power supplies
Medical equipment
Shielded rooms

Technical Specifications

Maximum continuous operating voltage

300 VAC, 50/60 Hz (ENEC)

250 VAC, 50/60 Hz (UL)

1000 VDC max

Rated currents

10 to 63 A @ 60°C max

Capacitor class

Y2

High potential test voltage

3000 VDC for 2 sec

Insulation resistance (100VDC after 60 sec)

<0.33 μF, R >15,000 MΩ

>0.33 μF, τ >5000 s

Temperature range (operation and storage)

-40°C to +100°C (40/100/21)

Flammability corresponding to

UL 94 V-2 or better

MTBF @ 60°C/300 V (Mil-HB-217F)

<200 A: >675,000 hours

≥200 A: >494,000 hours

Operating frequency

DC to 60 Hz

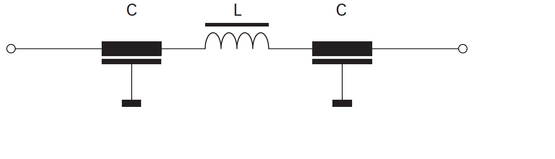

Typical electrical schematic

FN761X

Approvals & Compliances

UL Recognized Label
ENEC 14 Label
RoHS Label
