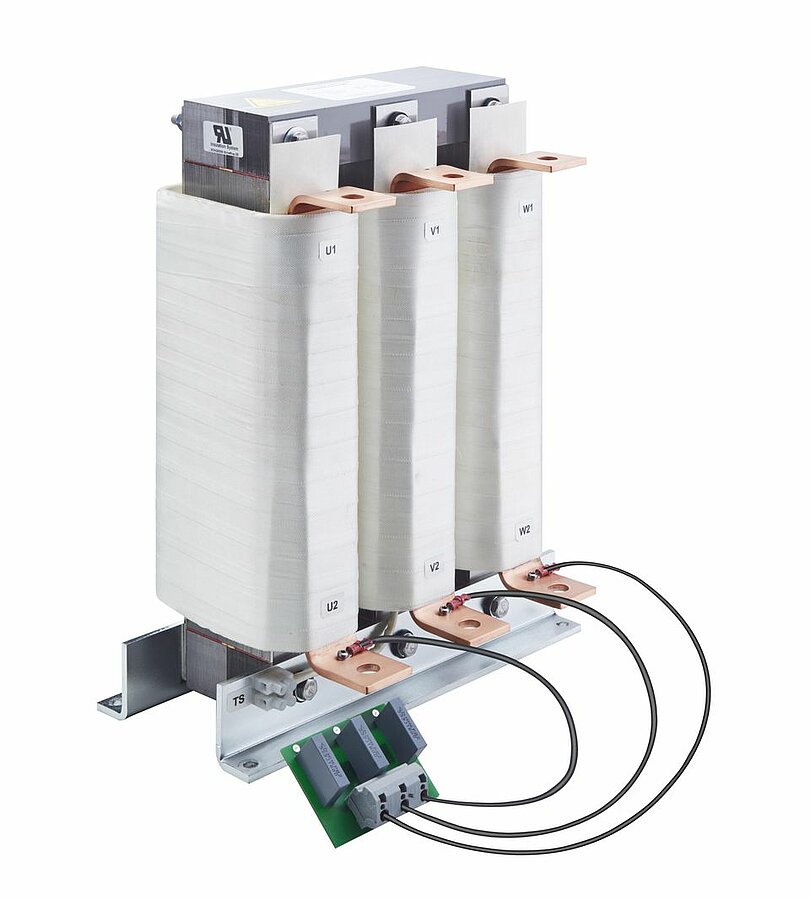

FN5060

dv/dt Filters FN5060

Output Filter for Motor Drives

FN5060

Output Filter for Motor Drives

  • Reduction of drive output voltage dv/dt
  • Reduction of voltage stress at motor windings
  • Protect AC motors from destructive effect of peak voltages
  • Increase of motor service life
  • Improvement of system reliability

Features and Benefits

Efficient reduction of high output voltage dv/dt from IGBT motor drives (as per IEC 60034-17/25)
Restriction of overvoltages caused by line reflections on motor cables (as per IEC 60034-17/25)
Protection of motor winding insulation from premature aging and destruction
Increase service life of electric motors
High reliability and production up time for mission critical applications
Less interference propagation towards neighbouring equipment or lines
Output filter with low impedance, ideal for processes requiring exceptional precision and reproducibility of movements

Typical Applications

Motor drive applications with short to medium motor cable length
Machinery comprising servo or torque motors
Conveyers
HVAC equipment, incl. pumps, fans and compressors
Elevators, hoisting and cranes
Motor drives for process lines
Applications where sine wave filters are not suited (e.g. high dynamic operation)

Technical Specifications

Nominal operating voltage

3x500 VAC

Rated operating voltage

3x550 VAC

Rated currents

12 to 1100 A @ 40°C

Motor frequency

0 to 60 Hz

0...60 Hz (with derating up to 120 Hz)

Switching frequency

2 to 16 kHz

2...16 kHz, depending on motor cable length and motor frequency -> refer graph on page 2

Typical dv/dt reduction

Factor 8 to 12

Max. peak voltage

≤1000 V

Voltage drop

<3 V @ 50 Hz

Ambient temperature range

-25°C to +40°C fully operational

+40°C to +100°C with derating*

-25°C to +100°C transport and storage

Overload capability

1.5 x rated current for 1 minute, ones per hour

Protection category

IP 00

Flammability corresponding to

UL 94V-2

Design corresponding to

UL 61800-5-1, EN 61800-5-1, EN 61558-2-20 or EN 60076-6

* Iderated = Inominal*√((Tmax-Tamb)/(Tmax-Tnominal)) = Inom*√((100°C-Tamb)/60°C)

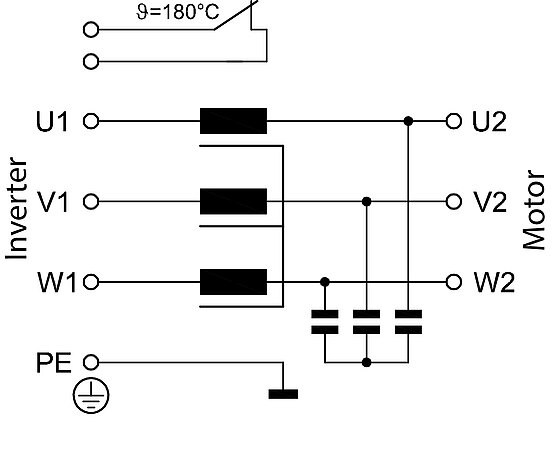

Typical electrical schematic

FN5060

Approvals & Compliances

RoHS Label
UL Recognized Label (USA)
CE Label
UKCA Label

UL recognized up to 700 A
