PCB Filters FN406

Ultra Compact EMC Filter

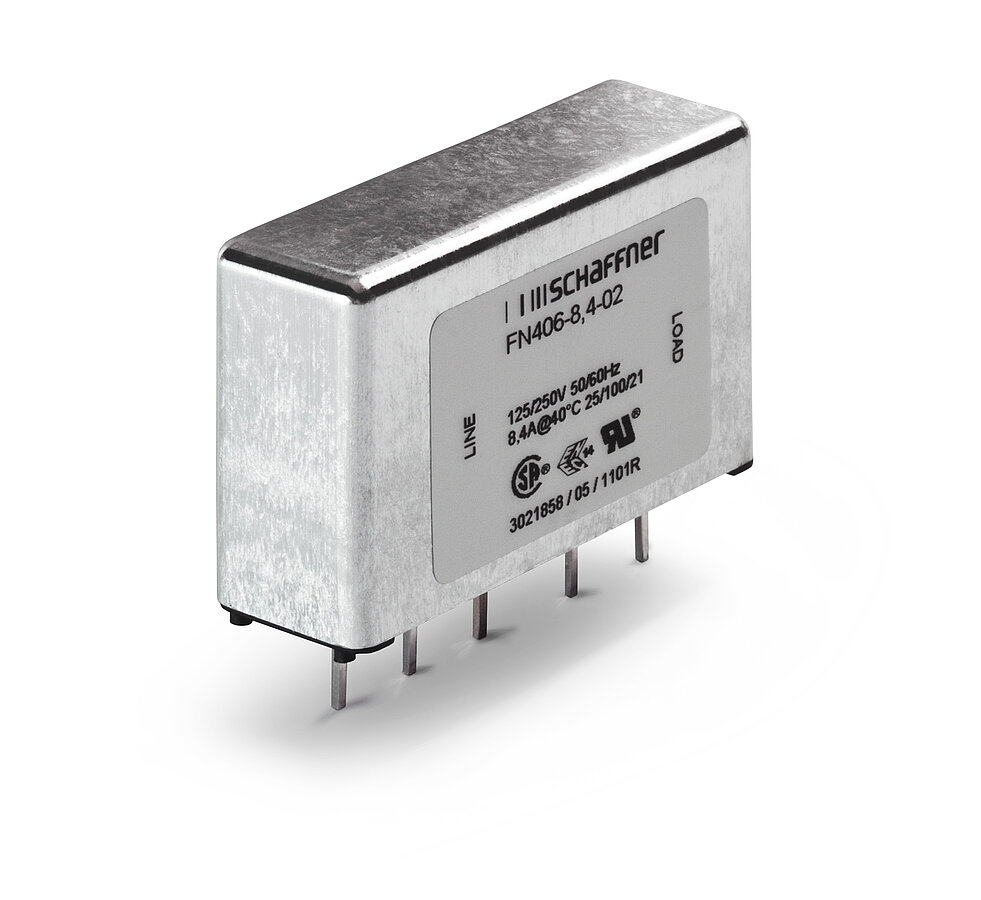

FN406

Ultra Compact EMC Filter

  • Rated currents from 0.5 to 8.4 A
  • Aluminium case
  • Very compact PCB-mountable design
  • Low profile
  • Optional medical versions (B type)

Features and Benefits

Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
PCB through hole mounting.
Low profile.
Custom specific versions on request.

Typical Applications

Electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment
Medical equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Nominal operating voltage

230 VAC

Rated currents

0.5 to 8.4 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 760 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>1,900,000 h @ 40°C/230 V

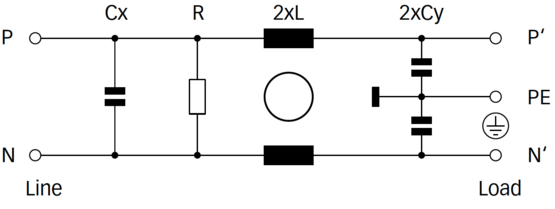

Typical electrical schematic

FN406

Approvals & Compliances

UL Recognized Label
CSA Label
ENEC 14 Label
RoHS Label
