FN405

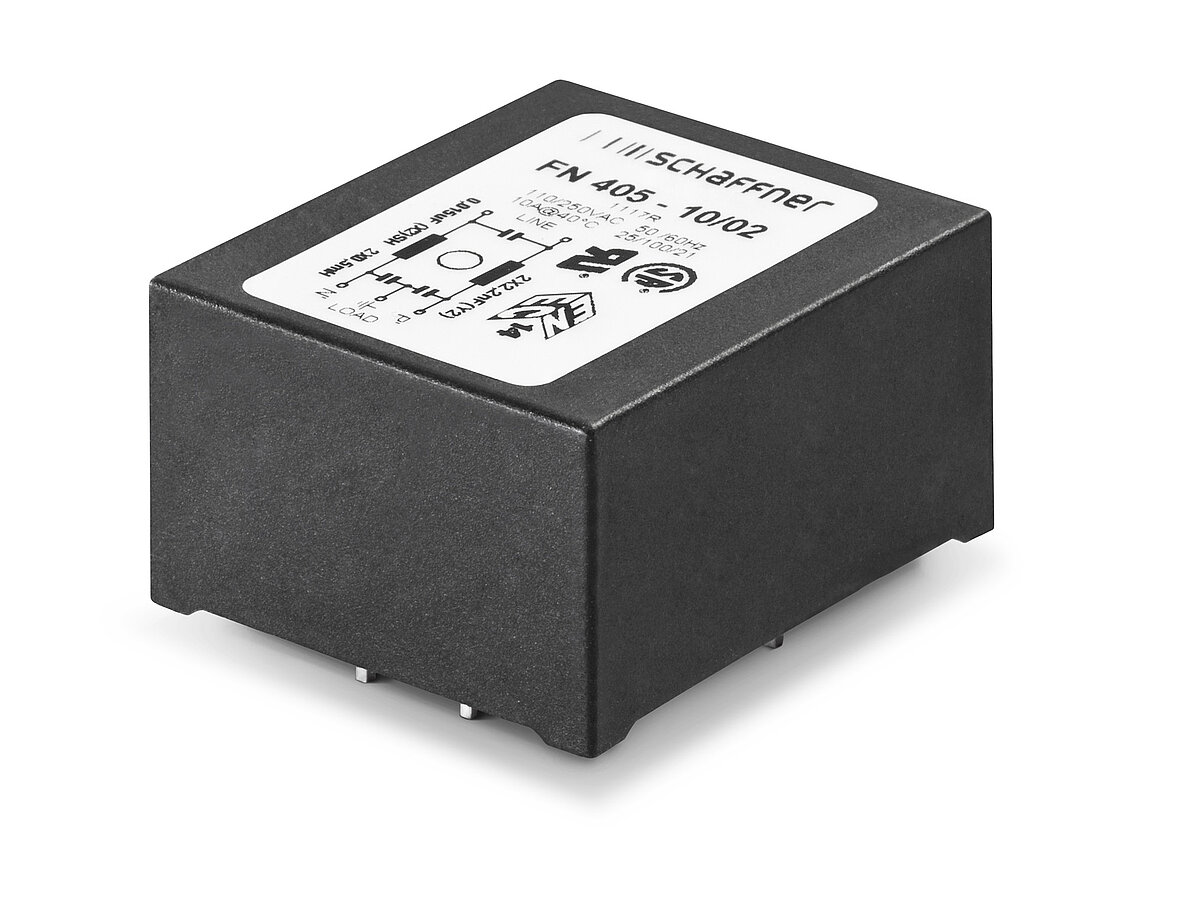

PCB-mounting filter

  • Rated currents from 0.5 to 10 A
  • Compact PCB-mountable design
  • Low profile

Features and Benefits

Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
PCB through hole mounting
Low profile
Custom specific versions on request

Typical applications

Electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment

Technical specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> N 760 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Flammability corresponding to

UL 94 V-0

MTBF @ 40°C/230 V (Mil-HB-217F)

1,600,000 hours

Rated currents

0.5 to 10 A

Typical electrical schematic

FN405
