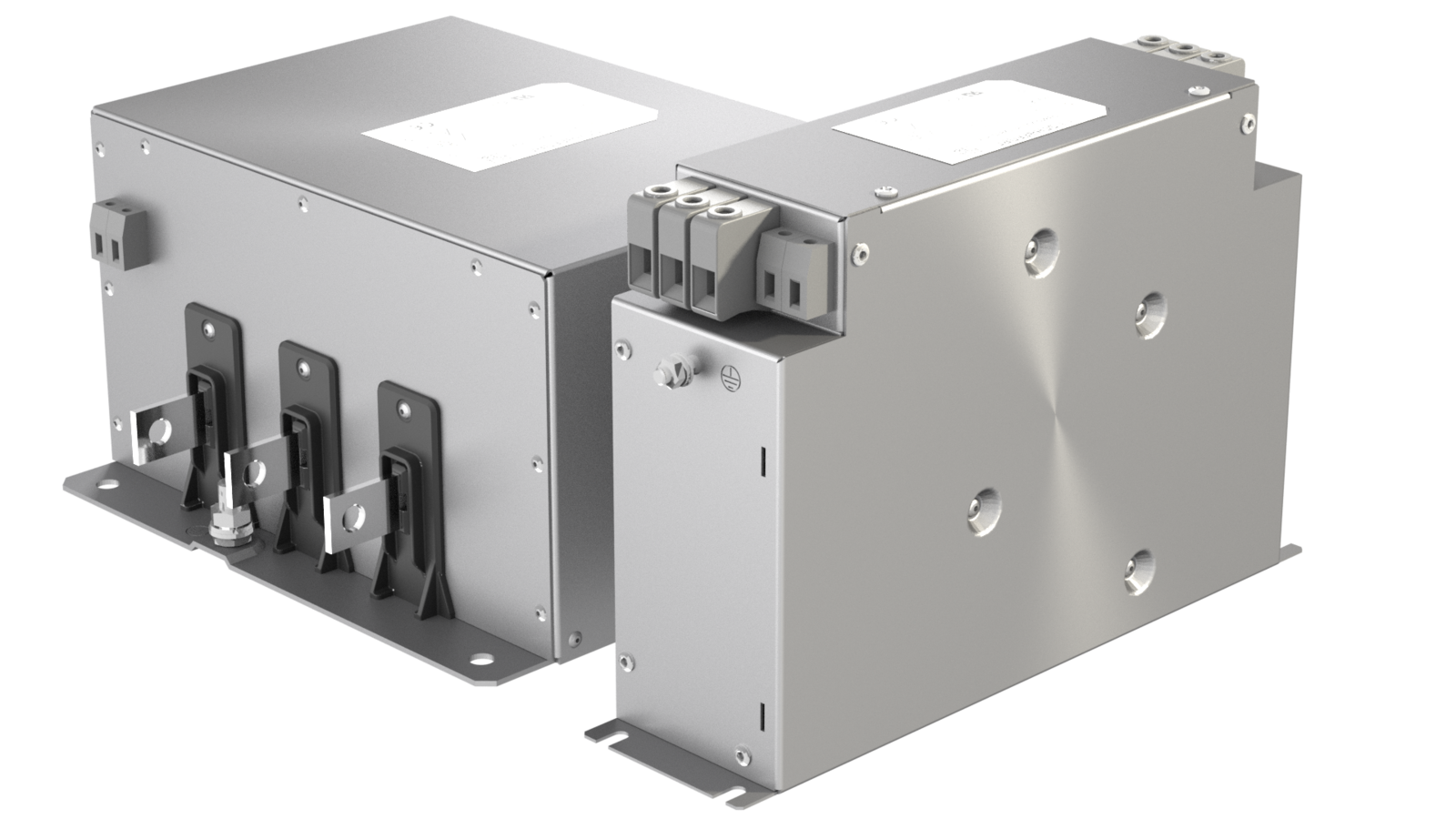

FN3840

3-Phase Filters FN3840

Book-style EMC/RFI Filter for regenerative drive application

FN3840

Book-style EMC/RFI Filter for regenerative drive application

  • Designed for usage together with LCL filter
  • Easy design in with system approach documentation
  • Footprint space-saving book-style housing
  • Thermal shutdown capability
  • Solid safety connector blocks
  • Versions with low leakage current

Features and Benefits

FN 3840 series of filters provides state-of-the-art EMI attenuation based on an innovative filter topology. They help to ensure compliance with Class C2 or even C1 limits.
The filters are built to fit perfectly to regenerative drive applications with LCL filters
Internal thermocouples ensure reliability and thermal shutdown capabilities
The slim book-style shape allows a convenient and space-saving installation next to inverters, converters or motor drives.
The filters offer very high saturation performance, bundled with best EMI performance
Fulfills the requirements in IEC/EN 61800-5-1 for electric strength, clearance and creepage
Fulfills the requirements in IEC/EN 60204-1 for insulation resistance, electric strength, clearance and creepage
Fulfills the requirements in IEC/EN 62477-1 for electric strength, clearance and creepage

Typical Applications

Regenerative drives in combination with LCL filters
Active infeed converter (AIC)
Active front end (AFE) variable frequency drives (VFD)
Three-phase variable speed drives (VSD) and power drive systems (PDS)
Renewable Energy
Machine tool and machinery equipment
Process automation equipment

Technical Specifications

Maximum continuous operating voltage

3x 530/305 VAC

Operating frequency

DC to 50/60 Hz

Rated currents

25 to 380 A @50°C

Overload capability

6x rated current for 1 sec, once per hour

1.6x rated current for 1 minute, once per hour

Climatic class

40/100/21 acc. to IEC 60068-1

Temperature range (operation and storage)

-40°C to +100°C (with current derating >50°C)

High potential test voltage

P -> E 2550 VDC for 2 s

P -> P 2550 VDC for 2 s

TS/TS' -> E 2550 VDC for 2 s

TS/TS' -> 3P 2550 VDC for 2 s

Pollution degree

2 acc. IEC 60664-1

Overvoltage category

III acc. IEC 60664-1

Surge withstand

2kV (P-P) / 4kV (3P - E) acc. to IEC 6100-4-5

Altitude

up to 2000m no derating applies. Above 2000m derating acc. to IEC 60664-1 applies

Design corresponding to

UL 60939-3, IEC 60939-3

Compliance with insulation requirement

> 1MOhm acc. to IEC 60204-1

Protection category

IP 20 (terminal block versions) and IP00 (busbar versions) acc. to IEC 60529-1

Vibration and shock

3M4 (operation) acc. to IEC 60721-3-3

Flammability corresponding to

Terminals: UL 94 V-0

MTBF

> 300,000 hours

Typical electrical schematic

FN3840

Approvals & Compliances

CE Label
ENEC 14 Label
RoHS Label
UL Recognized Label
