FN370

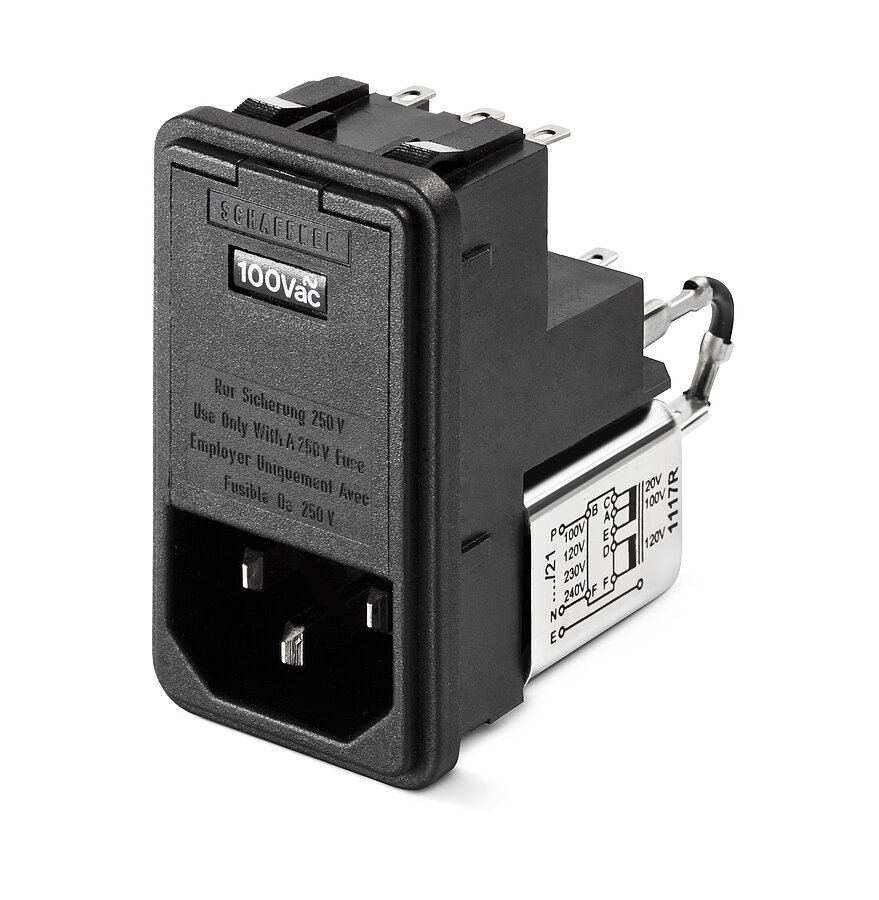

Power Entry Module with EMC- Filter FN370

Versatile Filtered Power Entry Module

FN370

Versatile Filtered Power Entry Module

  • Rated currents up to 6 A
  • Single or dual-fuse holder
  • Fuses Ø6.3 x 32 mm or Ø5 x 20 mm
  • Voltage selector 100/120/230/240 V
  • General purpose application
  • Optional medical versions (B type)

Features and Benefits

Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
Rear/front or snap-in mounting
Single or dual-fuse holder
USA Ø6.3 x 32 mm or EU Ø5 x 20 mm fuses
Two attenuation performance ranges
Voltage selector 100/120/230/240 V
Custom-specific versions are available on request

Typical Applications

Portable electrical and electronic equipment
Consumer goods
EDP and office equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment
Medical equipment

Technical Specifications

Maximum continuous operating voltage

250 VOLT, 50/60 Hz

Operating frequency

DC to 400 Hz

Rated currents

2 to 6 A @ 40°C max.

High potential test voltage

P –> PE 2000 VAC for 2 sec (standard types)

P –> PE 2500 VAC for 2 sec (B types)

P –> N 760 VAC for 2 sec

Protection category

IP 40 according to IEC 60529

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Flammability corresponding to

UL 94 V-2 or better

MTBF @ 40°C/230 V (Mil-HB-217F)

550,000 hours

Voltage selector description

VOL-SE 4SP-4

Function

Series/parallel

Voltage marking



1st

100

2nd

120

3rd

230

4st

240

Closed internal contact corresponding to



1st

a, c, e

2st

b, c, e

3st

3st a, d

4st

b, d

* Other selected voltage marking on request.

Typical electrical schematic

FN370
