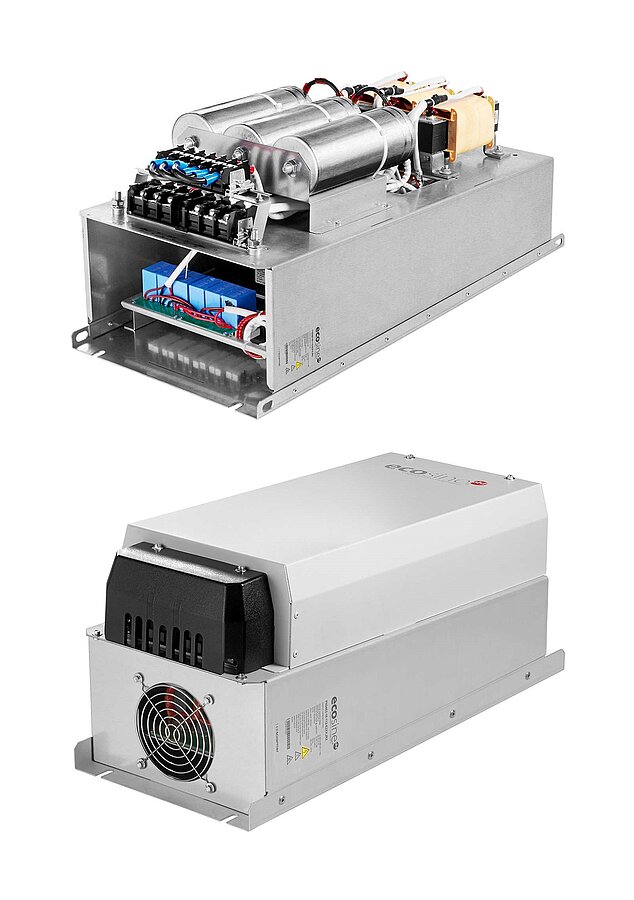

FN3442

Ecosine Evo FN3442

Ecosine evo, 400 VAC 60 Hz Full Performance Passive Harmonic Filters

Most important files and data about the product you can take over here.

FN3442

Ecosine evo, 400 VAC 60 Hz Full Performance Passive Harmonic Filters

  • The industry standard for 6-pulse rectifier and motor drives
  • Filters for diode rectifier without DC-link choke and thyristor rectifier
  • Best-in-class partial load performance
  • Most compact design
  • Plug and play, ready to use

Features and Benefits

Equipment with front-end six-pulse rectifier
Motor drives
Factory automation equipment
Water/wastewater treatment facilities
Fan and pump applications
HVAC installations
Mission-critical processes
DC fast chargers

Typical applications

Equipment with front-end six-pulse rectifier
Motor drives
Factory automation equipment
Water/wastewater treatment facilities
Fan and pump applications
HVAC installations
Mission-critical processes
DC fast chargers

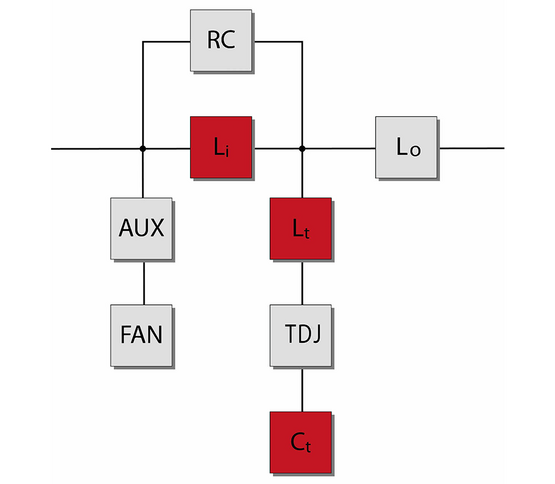

Technical specifications

Nominal operating voltage

3x380 VAC to 415 VAC +-10%

Operating frequency

60 Hz ±1 Hz

Nominal motor drive input power rating

1 to 240 HP

Total harmonic current distortion THDi*

<5% at rated power

Efficiency

>98% for rated voltage and power

Overload capability

1.6x rated current for 1 minute, once per hour

SCCR**

100 kA

High potential test voltage

P –> E 2160 VAC (1 s)

Earthing System

TN, TT, IT

Protection category

IP 00, IP 20*****

Cooling

Internal fan cooling or external cooling***

Ambient temperature range

–25°C to +45°C fully operational

+45°C to +70°C derated operation****

–25°C to +85°C transport and storage

Design corresponding to

Filter: UL 61800-5-1, EN 61800-5-1

Chokes: EN 61558-2-20 or EN 60076-6

Flammability corresponding to

UL 94 V-2

MTBF @ 45°C/400 V (Mil-HB-217F)

>200,000 hours

*****System requirements: THDv <2%, line voltage unbalance <1% *****Note: performance specifications in this brochure refer to six-pulse diode rectifiers. *****SCR rectifier front-ends will produce different results, dependent upon the firing angle of the thyristors. *****THDi ~5% at rated power for filter <6 kW/HP *****External UL-rated fuses required. Please consult the user manual. *****Please check the inlet air flow required for cooling table further in this document and the user manual. *****Iderated = Inominal*√((Tmax-Tamb)/(Tmax-Tnominal)) = Inom*√((70°C-Tamb)/25°C)

Approvals & Compliances

CE Label
UKCA Label
RoHS Label
UL Listed USA Label
UL Recognized Label (USA)

(depending on filter configuration)
