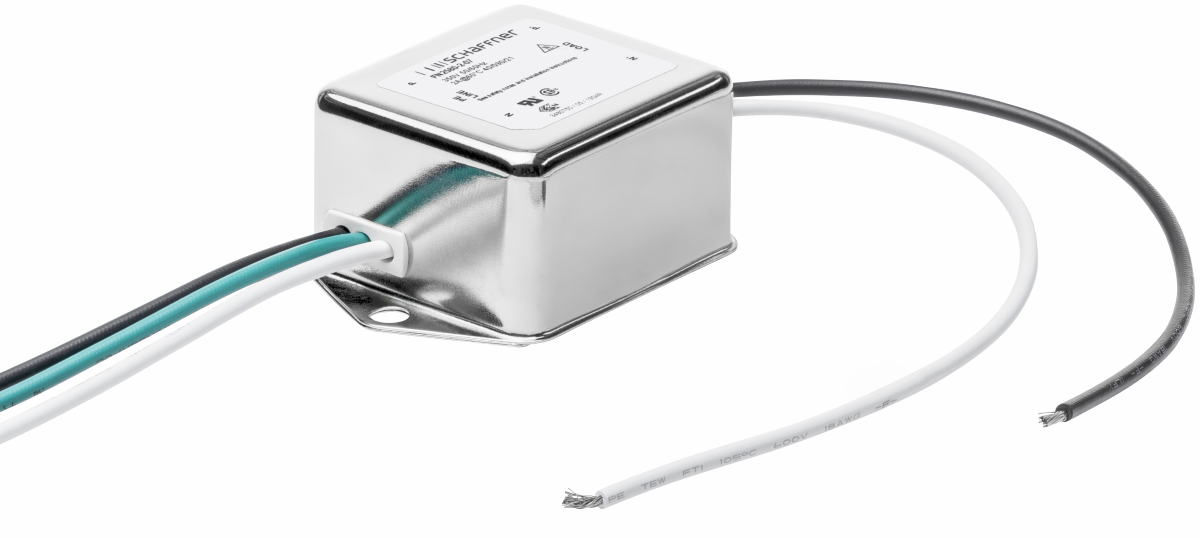

Standard Performance Single-Phase Filters FN2580

EMC/RFI line filter for lighting equipment


EMC/RFI line filter for lighting equipment

  • Voltage rating up to 350 VAC
  • Current rating 2 A, 5 A and 8 A
  • Offers attenuation fitting to lighting application
  • Compact, space-saving design
  • Cable outlets with enhanced length give freedom for flexible installation


Article Rated Current @ambient Inductance Capacitance Input/Output connections (Nm) Distribution stock Compare Read More
L1 L2 Cx1 (µF) Cy1 (nF) Input terminal Output terminal
FN2580-2-07 FN2580-2-07 21.56780.165507 - wire07 - wire
FN2580-5-07 FN2580-5-07 50.88520.165507 - wire07 - wire
FN2580-8-07 FN2580-8-07 80.49350.165507 - wire07 - wire

Features and Benefits

FN 2580 are specially developed for lighting application
Offering high differential and common mode performance in low profile housing
Cable outlets are flexible in terms of connection and make the assembly easy
Voltage rating according to high voltage LED lighting market

Typical Applications

Lighting Equipment
LED Driver and displays
Street Lamps and signage
Industrial and architectural lighting
Fluorescent ballasts
Other applications with high demand for differential mode performance

Technical Specifications

Maximum continuous operating voltage

350 VAC

Nominal operating voltage

277 VAC

Rated currents

2 A, 5 A and 8 A @ 60°C

Operating frequency

DC to 60 Hz

High potential test voltage

P –> PE 3000 VDC for 2 sec

P –> N 1500 VDC for 2 sec

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-40°C to 90°C (40/90/21)

Certified to

UL 60939-3, CSA Std C22.2 No. 8, IEC/EN 60939-3, GB/T 15287, GB/T 15288

MTBF (Mil-HB-217F)

>1,400,000 h @ 60°C/350 V

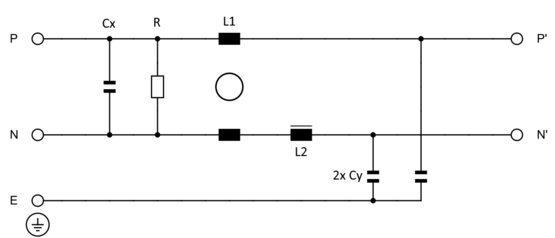

Typical electrical schematic


Approvals & Compliances

UL Recognized Label
CSA Label
ENEC 14 Label
CQC Label
CE Label
RoHS Label
