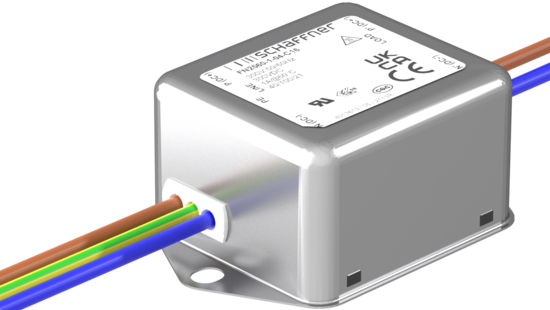

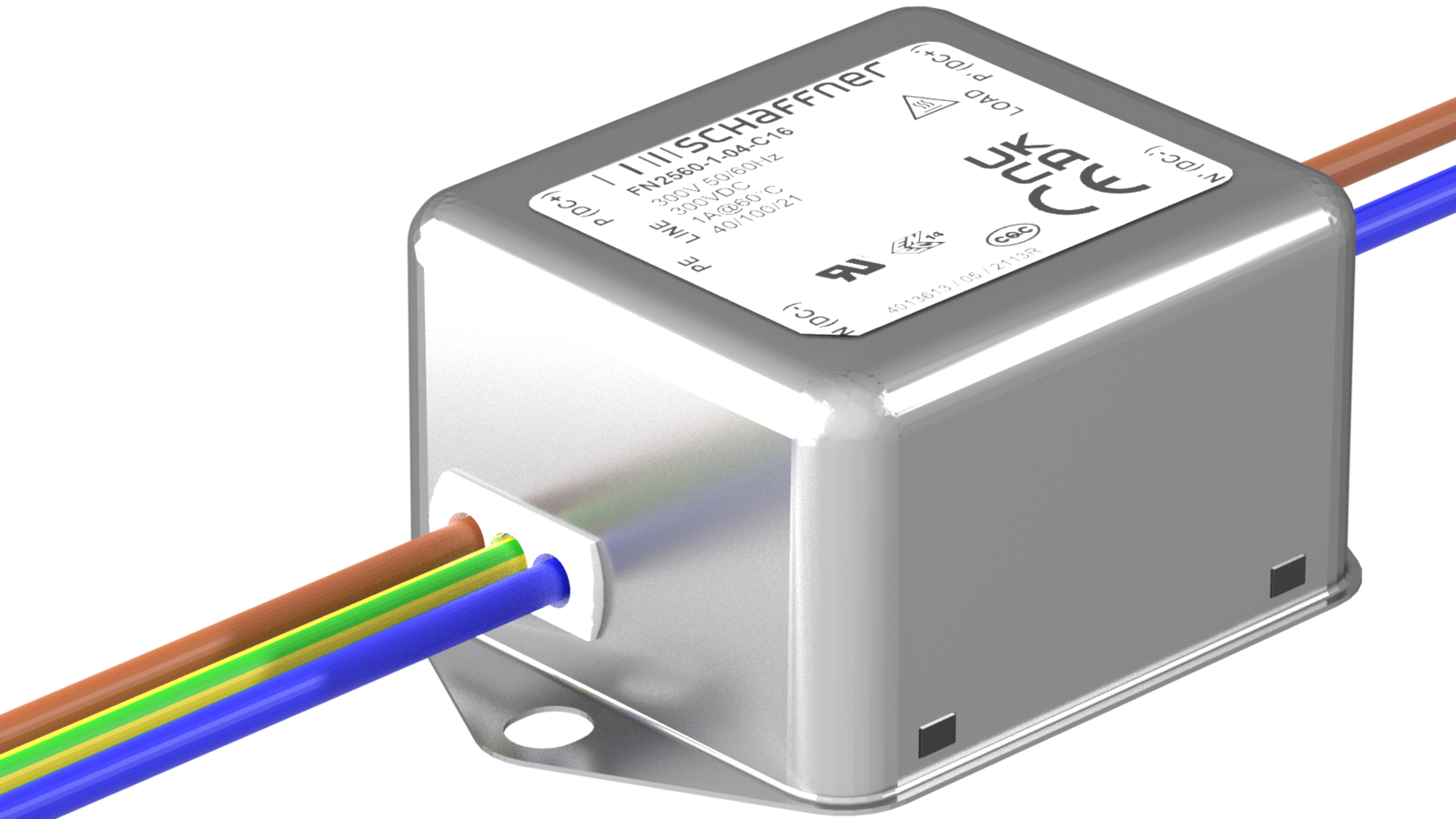

Standard Performance Single-Phase Filters FN2560

EMC/EMI line filter for lighting applications


EMC/EMI line filter for lighting applications

  • Excellent EMC filter for lighting applications
  • Choice between 3 different leakage ratings C00/C11/C16:
  • -C00: no leakage current, medical applications
  • -C11: low leakage current, safety applications
  • -C16: standard version, best filter performance
  • Voltage rating up to 300 VAC
  • Choice between 4 current ratings: 1 A, 2 A, 5 A and 8 A
  • Compact, space-saving design
  • Cable outlets with enhanced length give freedom for flexible installation
  • Versions without X-capacitor available - FN2564


Article Rated Current @ambient Leakage current IEC60939 Inductance Capacitance Input/Output connections (Nm) Distribution stock Compare Read More
L1 L2 Cx1 (µF) Cy1 (nF) Input terminal Output terminal
FN2560-1-04-C00 FN2560-1-04-C00 1041980.4704 - solid wire04 - solid wire
FN2560-1-04-C11 FN2560-1-04-C11 10.4441980.472 x 4.704 - solid wire04 - solid wire
FN2560-1-04-C16 FN2560-1-04-C16 13.1141980.472 x 3304 - solid wire04 - solid wire
FN2560-2-04-C00 FN2560-2-04-C00 202980.4704 - solid wire04 - solid wire
FN2560-2-04-C11 FN2560-2-04-C11 20.442980.472 x 4.704 - solid wire04 - solid wire
FN2560-2-04-C16 FN2560-2-04-C16 23.112980.472 x 3304 - solid wire04 - solid wire
FN2560-5-04-C00 FN2560-5-04-C00 501510.4704 - solid wire04 - solid wire
FN2560-5-04-C11 FN2560-5-04-C11 50.441510.472 x 4.704 - solid wire04 - solid wire
FN2560-5-04-C16 FN2560-5-04-C16 53.111510.472 x 3304 - solid wire04 - solid wire
FN2560-8-04-C00 FN2560-8-04-C00 800.5260.4704 - solid wire04 - solid wire
FN2560-8-04-C11 FN2560-8-04-C11 80.440.5260.472 x 4.704 - solid wire04 - solid wire
FN2560-8-04-C16 FN2560-8-04-C16 83.110.5260.472 x 3304 - solid wire04 - solid wire

Features and Benefits

Very high differential mode attenuation
Suitable for AC and DC applications
Offering a very high differential and common mode performance in low profile housing
Easy installation with single strand wires
Voltage rating according to high voltage LED lighting market

Typical Applications

Lighting equipment
LED driver and displays
Street lamps and signage
Industrial and architectural lighting
Fluorescent ballasts
Other applications with high demand for differential mode performance

Technical Specifications

Maximum continuous operating voltage

300 VAC / 300 VDC

Rated currents

1 A, 2 A, 5 A and 8 A @ 60°C

Operating frequency

DC to 60 Hz

High potential test voltage

P(DC+) –> PE 3000 VDC for 2 sec

P(DC+) –> N(DC-) 1500 VDC for 2 sec

Overvoltage category

III acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-40°C to 100°C (40/100/21)*

Climatic category





2000m (above derating applies)*

Protection category


Flammability corresponding to

Laces: UL94- VW1

Plastic material: UL-94V-0

Laces: UL94- VW1

Laces: UL94- VW1

Laces: UL94- VW1

Vibration and shock

3M4 (operation)

2M2 (transport) acc. to IEC 60721-3-3

IEC 60721-3-2

Certified to

UL 60939-3, IEC/EN 60939-3, GB/T 15287

Design corresponding to

IEC 61347-1 - Lamp controlgear

IEC 61547 - Equipment for general lighting purposes

MTBF (Mil-HB-217F)

>1,800,000 h @ 60°C/277 V


Single strand solid wires AWG16 / AWG18

* for dedicated requests exceeding this specification, please contact your local Schaffner sales office

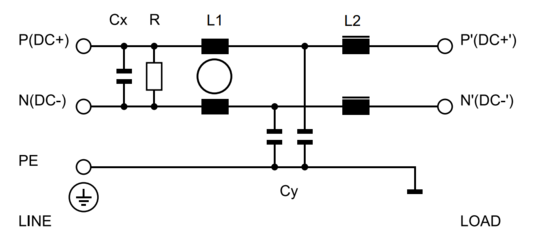

Typical electrical schematic


Approvals & Compliances

UL Recognized Label
CE Label
UKCA Label
RoHS Label
ENEC 14 Label
CQC Label
