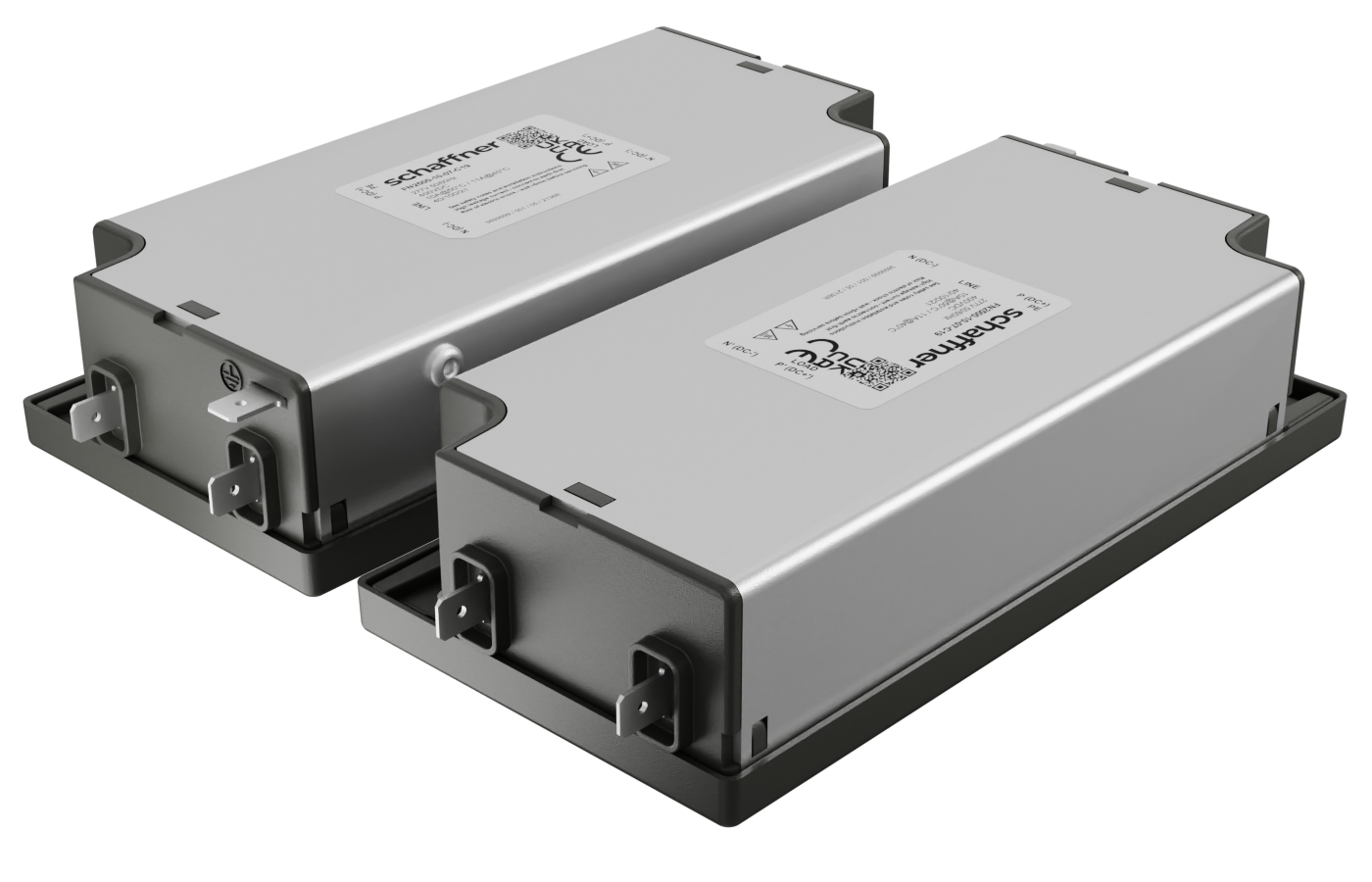

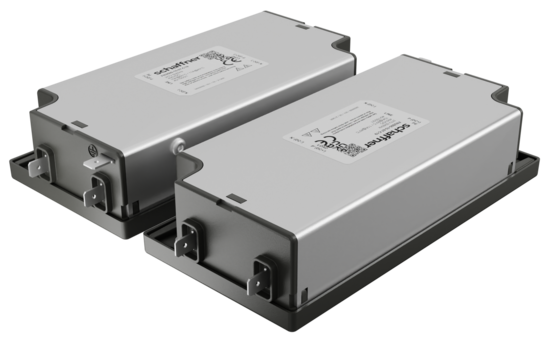

Very High Performance Single-Phase Filters FN2520

Low Profile - Very High Performance, EMC/EMI filter

FN2520

Low Profile - Very High Performance, EMC/EMI filter

  • Excellent EMC filter for robotics, datacenters and a variety of other applications
  • Available terminals: Fast-on, wire leads, bolt and clamps
  • Voltage rating up to 277 VAC / 400 VDC
  • Fits within 1 height unit (HU) of a 19" rack application
  • 50 °C operating temperature
  • 2-stage filter performance

Articles

Article Rated Current @ambient (A) Leakage current IEC60939 (A) Power Loss (W) Inductance Capacitance Resistance (kΩ) Input/Output connections (Nm) Distribution stock Compare Read More
L1 L2 Cx1 (µF) Cx2 (µF) Cy1 (nF) Cy2 (nF) Input terminal Output terminal
FN2520-25-07-C1111 FN2520-25-07-C1111 250.8292.42.410.474.74.768007 - wire07 - wire
FN2524-32-07-C1111 FN2524-32-07-C1111 320.8207 - wire07 - wire
FN2524-10-05-C1111 FN2524-10-05-C1111 100.8205 - faston 6.3x0.805 - faston 6.3x0.8
FN2523-10-05-C1111 FN2523-10-05-C1111 100.8205 - faston 6.3x0.805 - faston 6.3x0.8
FN2522-32-08-C1111 FN2522-32-08-C1111 320.8208 - M4 screw terminal08 - M4 screw terminal
FN2522-10-05-C1111 FN2522-10-05-C1111 100.8205 - faston 6.3x0.805 - faston 6.3x0.8
FN2521-10-05-C1111 FN2521-10-05-C1111 100.8205 - faston 6.3x0.805 - faston 6.3x0.8
FN2520-32-103-C1919 FN2520-32-103-C1919 3217.413.20.90.910.474.74.7680103 - PCB push-in terminal103 - push-in terminal
FN2520-32-103-C1111 FN2520-32-103-C1111 320.8213.20.90.910.474.74.7680103 - PCB push-in terminal103 - push-in terminal
FN2520-32-08-C1111 FN2520-32-08-C1111 320.8213.20.90.910.474.74.768008 - M4 screw terminal08 - M4 screw terminal
FN2520-32-07-C1111 FN2520-32-07-C1111 320.8213.20.90.910.474.74.768007 - wire07 - wire
FN2520-25-103-C1111 FN2520-25-103-C1111 250.82111.51.510.474.74.7680103 - PCB push-in terminal103 - push-in terminal
FN2520-25-08-C1111 FN2520-25-08-C1111 250.82111.51.510.474.74.768008 - M4 screw terminal08 - M4 screw terminal
FN2520-10-05-C1111 FN2520-10-05-C1111 100.8288.38.310.474.74.768005 - faston 6.3x0.805 - faston 6.3x0.8
FN2520-20-103-C1111 FN2520-20-103-C1111 200.8292.42.410.474.74.7680103 - PCB push-in terminal103 - push-in terminal
FN2520-20-08-C1111 FN2520-20-08-C1111 200.8292.42.410.474.74.768008 - M4 screw terminal08 - M4 screw terminal
FN2520-20-07-C1111 FN2520-20-07-C1111 200.8292.42.410.474.74.768007 - wire07 - wire
FN2520-20-05-C1111 FN2520-20-05-C1111 200.8292.42.410.474.74.768005 - faston 6.3x0.805 - faston 6.3x0.8
FN2520-15-103-C1111 FN2520-15-103-C1111 150.8294410.474.74.7680103 - PCB push-in terminal103 - push-in terminal
FN2520-15-08-C1111 FN2520-15-08-C1111 150.8294410.474.74.768008 - M4 screw terminal08 - M4 screw terminal
FN2520-15-07-C1111 FN2520-15-07-C1111 150.8294410.474.74.768007 - wire07 - wire
FN2520-15-05-C1111 FN2520-15-05-C1111 150.8294410.474.74.768005 - faston 6.3x0.805 - faston 6.3x0.8
FN2520-10-103-C1111 FN2520-10-103-C1111 100.8288.38.310.474.74.7680103 - PCB push-in terminal103 - push-in terminal
FN2520-10-08-C1111 FN2520-10-08-C1111 100.8288.38.310.474.74.768008 - M4 screw terminal08 - M4 screw terminal
FN2520-10-07-C1111 FN2520-10-07-C1111 100.8288.38.310.474.74.768007 - wire07 - wire

Features and Benefits

FN2520 series fits perfectly within 1HU height for rack mount applications
The filters are built to perform perfectly in datacenter and audio video equipment
The shape allows convenient and space-saving installation
Fulfills the requirements in IEC/EN 62040-1 - Uninterruptible power systems (UPS)
Fulfills the requirements in IEC 62368-1 - Audio/Video, Information and Communication Technology Equipment
Fulfills the requirements in IEC/EN 60335-1 - Household and similar appliances

Typical Applications

Datacenter (at 400 VDC)
Building technology with DC power distribution
Robotics, collaborative robots, autonomous machines
Audio and video equipment
UPS - Uninterruptible power supplies

Technical Specifications

Operating frequency

DC to 60 Hz

Climatic category

FN2500: 40/100/21 acc. IEC60068-1

Surge withstand

2 kV Ph-Ph / 4 kV Ph-PE (Level 4)

High potential test voltage

P(DC+) –> N(DC-) 1500 VDC for 2 sec*

P(DC+)/N(DC-) –> PE 2500 VDC for 2 sec*

Rated operating voltage

277 VAC / 400 VDC (CQC: 250 VAC / 250 VDC)

Altitude

Derating above 2000 m

Certified to

UL/IEC 60939-3, CSA 22.2 No. 8-13, GB/T 15287

MTBF

> 300,000 h

Rated currents

10 to 32 A @ 50°C

Protection category

IP00 / IP20 for -103 terminals

Pollution degree

2 acc. IEC 60664-1

Vibration and shock

3M12 acc. IEC 60721-3-3

Overvoltage category

II acc. IEC 60664-1

Temperature range (operation and storage)

FN2500: -40°C to +100°C (with derating >50°C)

FN2520: -40°C to +85°C (with derating >50°C)

Overload capability

1.5 x rated current for 1 minute once per hour

Cooling

Natural cooling AN

Flammability corresponding to

Plastic material: UL 94 V0

Laces for -07 version: UL 94 VW1

Typical electrical schematic

FN2520

Approvals & Compliances

CE Label
CQC Label
CSA Label
ENEC 14 Label
RoHS Label
UKCA Label
UL Recognized Label
