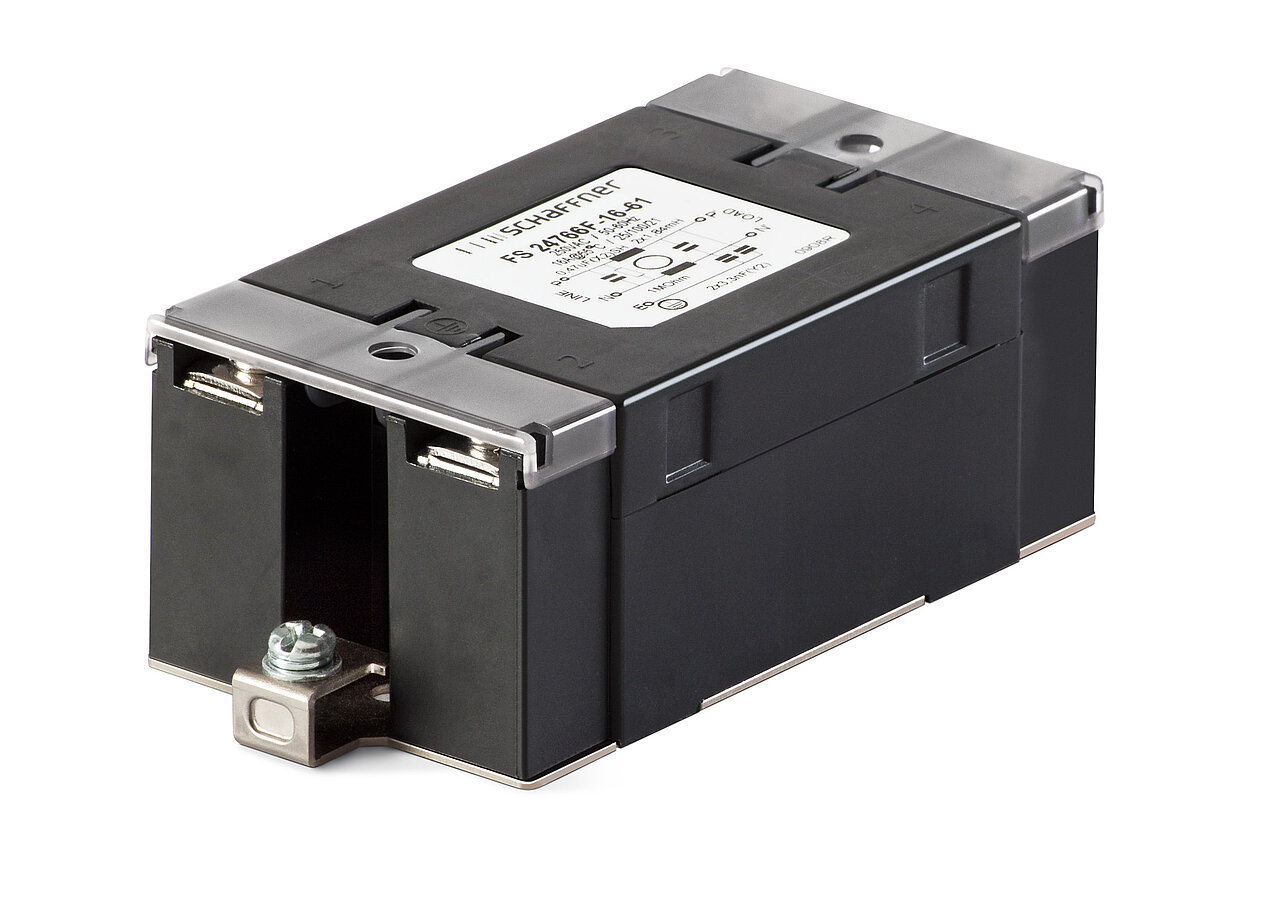

Standard Performance Single-Phase Filters FN2450

Safe and ergonomic EMC/EMI filter with very low leakage current

FN2450

Safe and ergonomic EMC/EMI filter with very low leakage current

  • Light weight plastic enclosure design
  • Very low filter leakage current
  • Hinged safety covers
  • Embedded filter terminals
  • Different performance levels
  • Environmental friendly design without potting compound

Features and Benefits

A plastic housing and a metal ground plate are cleverly combined to get the lowest possible product weight without compromising EMC behaviour
The embedded terminals from Schaffner guarantee user-friendly handling and reliable, long-lasting electrical connection
Captive hinged protective covers contribute to overall safety by offering protection against unintended contact with life conductors. They are included in the standard scope of delivery without any extra cost
Very low leakage current values make the filters suitable for grids with very tough requirements or sensitive GFCIs, and for applications which set value on safety and reliability
FN 2450 feature an ecologically conscious construction without the use of potting compound or banned substances (RoHS). Used raw materials can be easily separated at the end of the product life time for proper and environmentally safe disposal

Typical Applications

Electrical and electronic equipment
Test and measurement devices
Medical devices n Industrial automation
Small machines
Office automation equipment

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Rated currents

6 to 20 A @ 55°C

Operating frequency

DC to 400 Hz

High potential test voltage

P/N -> E 2500 VAC for 60 sec *

P -> N 1100 VDC for 2 sec

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-0 (safety covers UL 94V-1)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986,

IEC/EN 60939, EN 60601-1

MTBF @ 40°C/230 V (Mil-HB-217F)

>180,000 hours

* Type testing only

Typical electrical schematic

FN2450
