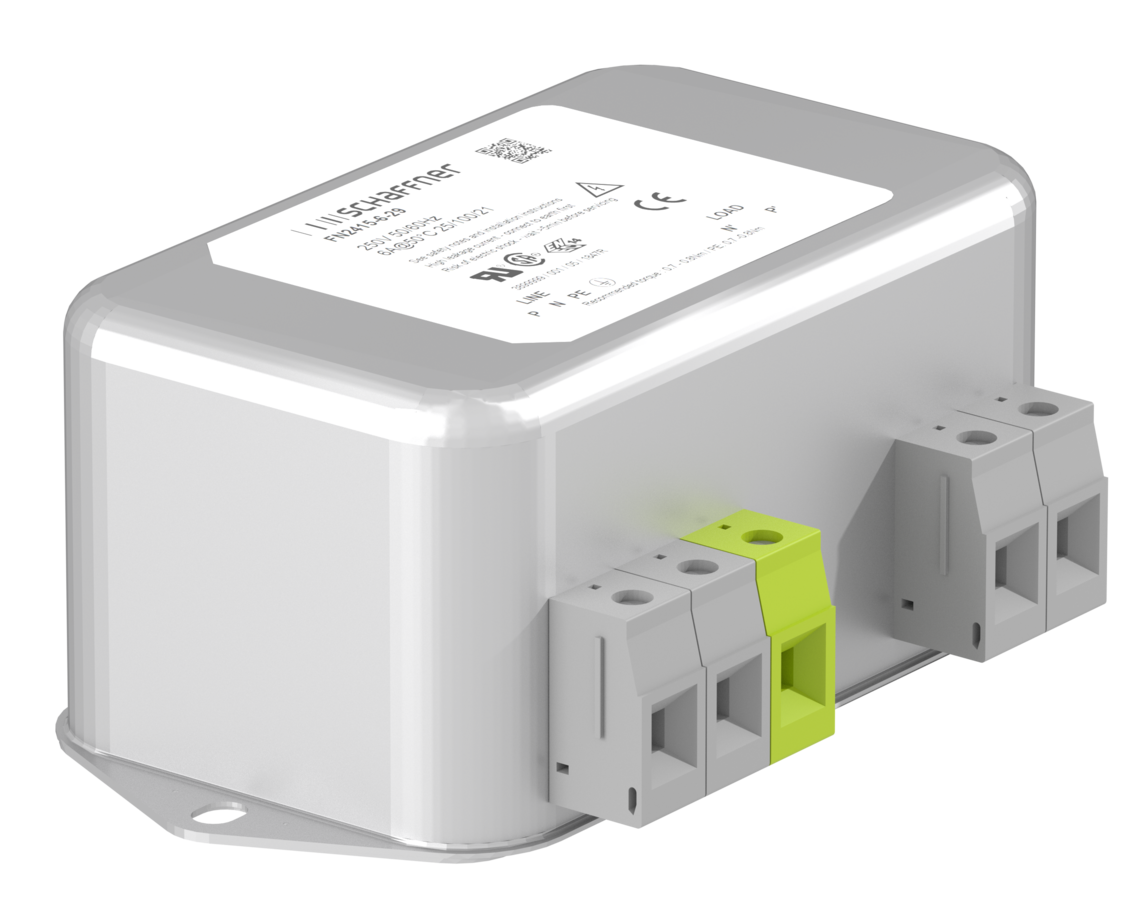

High Performance Single-Phase Filters FN2415

Single-phase EMC Filter for Control Equipment

FN2415

Single-phase EMC Filter for Control Equipment

  • Filter for the control line of complex equipment and machinery
  • To ensure interference-free operation of control equipment (PLC, Motion-, Robot Control etc.)
  • To improve operational reliability and system stability
  • Compact EMC filter design with minimum space requirement

Features and Benefits

An additional filter for the supply cables of controls of rather large and complex systems, to ensure a reliable operation of the control unit.
To achieve significant system stability improvement by reducing the risk of internal interference propagation and coupling.
FN 2415 B version without leakage current (0 mA)
FN 2415 L version with leakage current of less than 3.5 mA.
Simple and time-saving installation with good accessibility for automatic and hand tools
Solid, touch-safe terminal blocks offering sufficient contacting cross section according to the EN 60204-1 installation standard
By providing a very decent attenuation performance, FN 2415 contributes significantly to the achievement of electromagnetic compliance, e.g. EN50370-1 standards for machine tools.

Typical Applications

Ideal for industrial equipment, machinery and diverse process automation systems, which involve any kind of control units (NC, CNC, Motion- and Robot Controls).

Large and complex machine tools with multiple driving axes and very long motor cables can be subjected to major reliability problems, provoked and by internal coupling of interferences from the drive system to the control wires.

This can cause drop outs and interrupts of the control unit and consequently lead to unnecessary downtimes of the entire machine. FN 2415 can also be used for most diverse single-phase applications, e.g. motor drives and power supplies.

Technical Specifications

Maximum continuous operating voltage

250 VAC

Operating frequency

DC to 400 Hz

Rated currents

6 to 16 A @ 50°C

High potential test voltage

P/N –> E 2250VDC for 2 sec

P –> N 1100VDC for 2 sec

Protection category

IP 20

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF @ 50°C/250 V (Mil-HB-217F)

1,300,000 hours

Typical electrical schematic

FN2415

Approvals & Compliances
