FN2410 and FN2412

Standard Performance Single-Phase Filters FN2410 and FN2412

EMC/RFI Filters for Industrial Electronics

FN2410 and FN2412

EMC/RFI Filters for Industrial Electronics

  • Excellent filter performance for applications with high interference levels
  • Filters for two-phase supply up to 2x 520 VAC (P-P) available
  • Fast and comfortable snap-in installation on popular TS 35 DIN-rails up to 45 A
  • Industrial grade terminal blocks for unsurpassed electrical safety

Features and Benefits

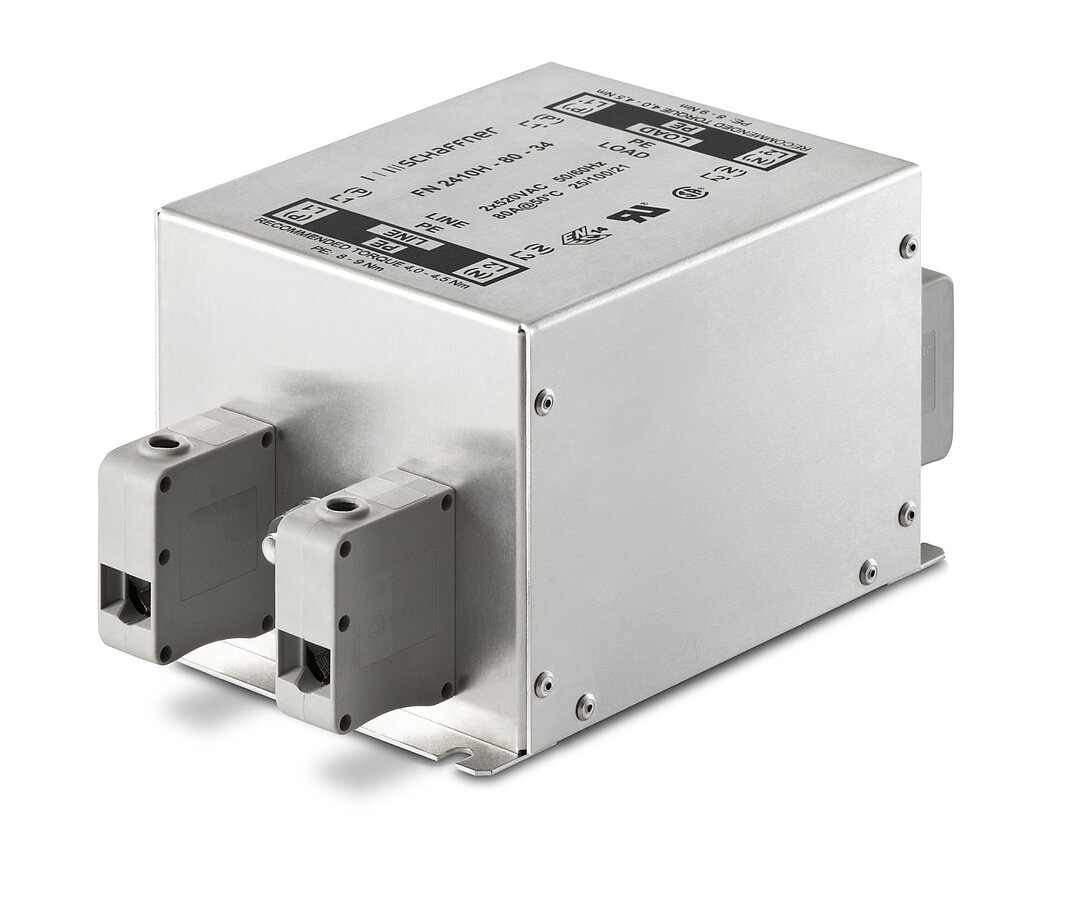

FN 2410 filters up to 100 A are designed for traditional chassis mounting
For extra fast installation, FN 2412 filters up to 45 A can comfortably be snapped-in on popular TS 35 DIN-rails which are common in most electrical cabinets
Both FN 2410 and FN 2412 are also avail- able as „H versions“. These are ideally suitable for an operation on two phases in a three-phase power network, handling voltages up to 520 VAC
All filters provide an exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior. Thus, all filters retain the expected filter performance even in very noisy applications and under full load conditions
Touch-safe industrial grade terminal blocks provide maximum electrical safety and protect humans from undeliberate contact with life conductors. They help to fulfill the most demanding installation standards

Typical Applications

Small to medium-sized machines and industrial equipment
High-end single-phase power supplies
Single-phase variable speed motor drives, inverters and converters
DIN-rail filter versions are ideal for panel building and electrical cabinets
Various noisy applications with higher power single-phase or two-phase supply

Technical Specifications

Maximum continuous operating voltage

2x 520/300 VAC (FN 2410 H/FN 2412 H)

1x 250 VAC (FN 2410/FN 2412)

Operating frequency

DC to 400 Hz

Rated currents

8 to 45 A @ 50°C (FN 2412)

8 to 100 A @ 50°C (FN 2410)

High potential test voltage

P –> P 2250 VDC for 2 sec (H types)

P –> E 2000 VAC for 2 sec

P –> N 1100 VDC for 2 sec

P –> E 2700 VDC for 2 sec (H types)

Protection category

IP 20

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF @ 50°C/250 V (Mil-HB-217F)

1,200,000 hours

250,000 hours (H types)

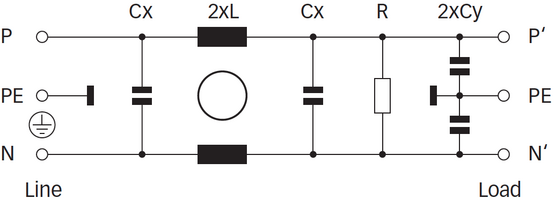

Typical electrical schematic

FN2410 and FN2412
