FN2211HV and FN2210HVFN2211HV and FN2210HV

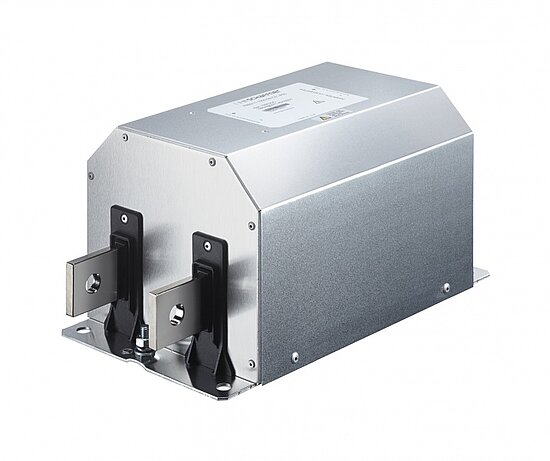

DC Filter FN2211HV and FN2210HV

Compact high current DC EMC/RFI filter

FN2211HV and FN2210HV

Compact high current DC EMC/RFI filter

  • Reduces conducted emissions towards the solar panel
  • Reduces the probability of EMI radiation off the solar panel
  • Helps to prevent premature panel aging
  • Helps to meet international EMC regulations
  • Most compact standard solution in the industry
  • FN2210HV without Cy capacitors to ground

Articles

Article Rated Current @ambient Power Loss Input/Output connections (Nm) Distribution stock Compare Read More
Input terminal Output terminal
FN2210HV-250-99-R9 FN2210HV-250-99-R9 2509Bus barThreaded stud
FN2210HV-400-99-R9 FN2210HV-400-99-R9 40014Bus barThreaded stud
FN2210HV-600-99-R9 FN2210HV-600-99-R9 60015Bus barThreaded stud
FN2210HV-1000-99-R9 FN2210HV-1000-99-R9 100031Bus barThreaded stud
FN2210HV-1500-99-R9 FN2210HV-1500-99-R9 150041Bus barThreaded stud
FN2210HV-2300-99-R9 FN2210HV-2300-99-R9 230064Bus barThreaded stud
FN2211HV-250-99-C27-R99 FN2211HV-250-99-C27-R99 2509Bus barThreaded stud
FN2211HV-400-99-C17-R90 FN2211HV-400-99-C17-R90 40014Bus barThreaded stud
FN2211HV-400-99-C27-R99 FN2211HV-400-99-C27-R99 40014Bus barThreaded stud
FN2211HV-600-99-C27-R99 FN2211HV-600-99-C27-R99 60015Bus barThreaded stud
FN2211HV-1000-99-C27-R99 FN2211HV-1000-99-C27-R99 100031Bus barThreaded stud
FN2211HV-1500-99-C17-R90 FN2211HV-1500-99-C17-R90 150041Bus barThreaded stud
FN2211HV-1500-99-C27-R99 FN2211HV-1500-99-C27-R99 150041Bus barThreaded stud
FN2211HV-2300-99-C27-R99 FN2211HV-2300-99-C27-R99 230064Bus barThreaded stud

Features and Benefits

Installed between the PV inverter and the solar panel, the FN2211HV and FN2210HV DC filters are used to influence positively the conducted emissions on the panel side of the system. Therefore the DC filters significantly reduce the potential for highfrequency (HF) interference radiation of the panel. The filter also helps to prevent premature panel aging because of HF stray and leakage currents.

Typical Applications

The FN2211HV/FN2210HV series are primarily designed for PV inverter applications between 250 and 2'300 A. However, they can potentially also be applied in other DC applications within published specifications, like UPS, DC motor drives, energy/battery storage systems, or DC charger installations.

Technical Specifications

Maximum continuous operating voltage

1'500 VDC

Rated currents

250 to 2300 A @ 50°C

Overload capability

4x rated current at switch on, max. 8 sec 1.5x rated current for 1 minute, once per hour -40°C

Operating frequency

DC

High potential test voltage

P -> E 6'800 VDC for 2 sec

P -> P 3'850 VDC for 2 sec

Temperature range (operation and storage)

to +100°C

Climatic category

40/100/21 acc. to IEC 60068-1

Protection category

IP 00

Flammability corresponding to

UL 94V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939,

EN 60721-3, EN 62109

MTBF (Mil-HB-217F)

>200,000 h @ 50°C/480 V

Terminals/Housing

Ni plated cu bars/Metal

Typical electrical schematic

FN2211HV and FN2210HV

Approvals & Compliances

RoHS Label
UL Recognized Label (USA)
CE Label
UKCA Label
