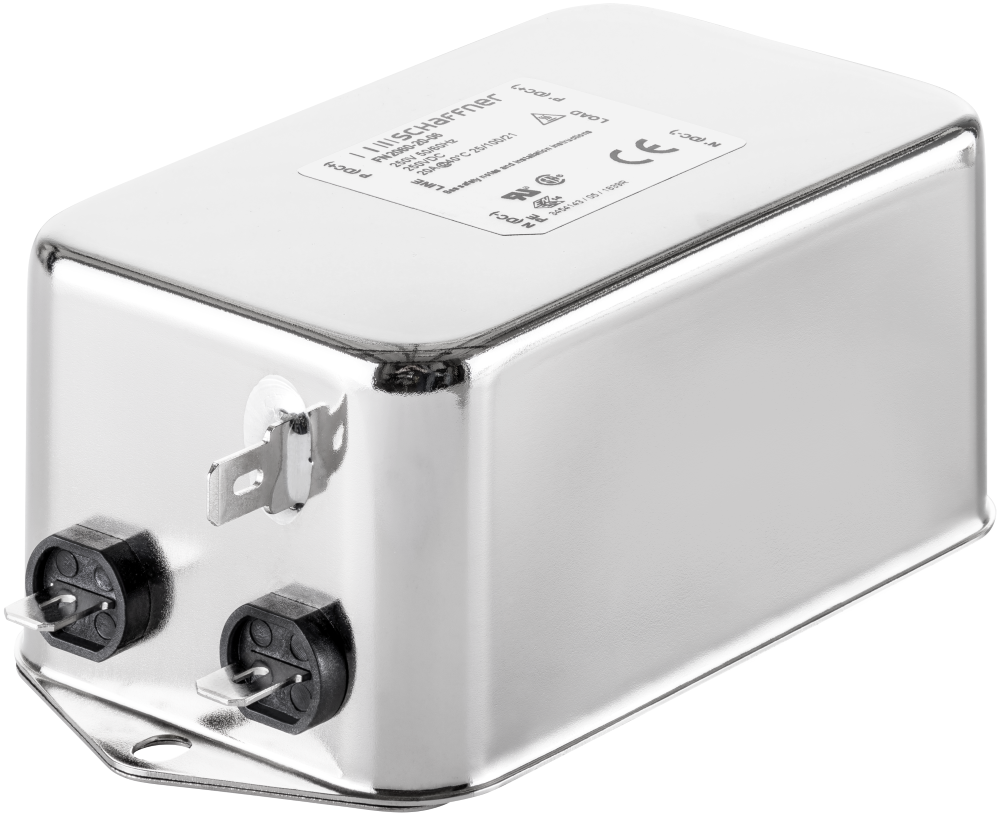

High Performance Single-Phase Filters FN2060

Multi-stage general purpose AC/DC EMI Filter

FN2060

Multi-stage general purpose AC/DC EMI Filter

  • Rated currents from 1 to 30 A
  • High differential and common-mode attenuation
  • Optional medical versions (B type)
  • Optional safety versions (A type)

Articles

Article Rated Current @ambient Leakage current IEC60939 Power Loss Inductance Capacitance Resistance Input/Output connections (Nm) Distribution stock Compare Read More
L1 Cx1 (µF) Cy1 (nF) Input terminal Output terminal
FN2060-10-08 FN2060-10-08 100.664.30.80.474.747008 - M4 screw terminal08 - M4 screw terminal
FN2060-1-06 FN2060-1-06 10.661.6120.224.7100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-1-07 FN2060-1-07 10.661.6120.224.7100007 - wire07 - wire
FN2060-3-06 FN2060-3-06 30.662.22.50.224.7100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-3-07 FN2060-3-07 30.662.22.50.224.7100007 - wire07 - wire
FN2060-6-06 FN2060-6-06 60.663.20.970.224.7100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-6-07 FN2060-6-07 60.663.20.970.224.7100007 - wire07 - wire
FN2060-10-06 FN2060-10-06 100.664.30.80.474.747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-10-07 FN2060-10-07 100.664.30.80.474.747007 - wire07 - wire
FN2060-12-06 FN2060-12-06 120.666.20.580.474.747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-12-07 FN2060-12-07 120.666.20.580.474.747007 - wire07 - wire
FN2060-12-08 FN2060-12-08 120.666.20.580.474.747008 - M4 screw terminal08 - M4 screw terminal
FN2060-16-06 FN2060-16-06 160.664.40.650.334.7100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-16-07 FN2060-16-07 160.664.40.650.334.7100007 - wire07 - wire
FN2060-16-08 FN2060-16-08 160.664.40.650.334.7100008 - M4 screw terminal08 - M4 screw terminal
FN2060-20-06 FN2060-20-06 200.665.30.614.722006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060-20-08 FN2060-20-08 200.665.30.614.722008 - M4 screw terminal08 - M4 screw terminal
FN2060-30-08 FN2060-30-08 301.419.10.611022008 - M4 screw terminal08 - M4 screw terminal
FN2060A-3-06 FN2060A-3-06 30.072.22.52.20.47100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060A-6-06 FN2060A-6-06 60.073.20.970.220.47100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060A-10-06 FN2060A-10-06 100.074.30.80.470.4747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060A-12-06 FN2060A-12-06 120.076.20.580.470.4747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060A-16-06 FN2060A-16-06 160.074.40.650.330.47100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060A-16-08 FN2060A-16-08 160.074.40.650.330.47100008 - M4 screw terminal08 - M4 screw terminal
FN2060A-20-06 FN2060A-20-06 200.075.30.610.4722006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060A-20-08 FN2060A-20-08 200.075.30.610.4722008 - M4 screw terminal08 - M4 screw terminal
FN2060A-30-08 FN2060A-30-08 300.079.10.610.4722008 - M4 screw terminal08 - M4 screw terminal
FN2060B-1-06 FN2060B-1-06 101.6120.22100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-1-07 FN2060B-1-07 101.6120.22100007 - wire07 - wire
FN2060B-3-06 FN2060B-3-06 302.22.50.22100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-6-06 FN2060B-6-06 603.20.970.22100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-10-06 FN2060B-10-06 1004.30.80.4747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-12-06 FN2060B-12-06 1206.20.580.4747006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-16-06 FN2060B-16-06 1604.40.650.33100006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-16-07 FN2060B-16-07 1604.40.650.33100007 - wire07 - wire
FN2060B-20-06 FN2060B-20-06 2005.30.6122006 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug
FN2060B-20-08 FN2060B-20-08 2005.30.6122008 - M4 screw terminal08 - M4 screw terminal
FN2060B-30-08 FN2060B-30-08 3009.10.6122008 - M4 screw terminal08 - M4 screw terminal
FN2060L-12-06 FN2060L-12-06 122.5906 - faston 6.3x0.8/sold lug06 - faston 6.3x0.8/sold lug

Features and Benefits

FN 2060 two-stage filters are designed for easy and fast chassis mounting
FN 2060 B versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1
FN 2060 A version with low capacitance to earth for safety critical applications with necessity for low leakage currents
All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
FN 2060 two-stage filters are designed for noisy applications requiering good differential and common-mode attenuation
FN 2060 filters are also available as single-stage filters (FN 2010 series)
Various terminal options allow you to select the desired connection style

Typical Applications

Electrical and electronic equipment
Consumer goods
Household equipment
Building automation
Industrial applications
Machinery
Medical equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiering good filter performance

Technical Specifications

Maximum continuous operating voltage

250 VAC, 50/60 Hz

250 VDC

Nominal operating voltage

230 VAC

Rated currents

1 to 30 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1100 VDC for 2 sec

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)**

Altitude

2000m (above derating applies)**

Flammability corresponding to

Laces for -07 version: UL 94 VW-1

Terminal plastic for -06/-08 version: UL 94 V-0

Grommet for -07 version: UL 94 V-0

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>950,000 h @ 40°C/230 V

1,650,000 h (B types) @ 40°C/230 V

* maximum RMS operating voltage at rated frequency or the maximum DC operating voltage ** for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner Sales office

Typical electrical schematic

FN2060
