Ecosine Active Sync

Active Harmonic Filter Ecosine Active Sync

Ecosine Active Sync

Active Harmonic Filter Ecosine Active Sync

  • Most effective harmonic mitigation up to the 50th order, parameter setting for even and odd harmonics
  • Compact active harmonic filter for 3-phase loads with and without neutral wire
  • <5% THDi achievable even on most complex mixed loads and changing load profiles
  • NEW - Compatible with applications starting from 200 V to 415 V (4-wire) / 480 V (3-wire)

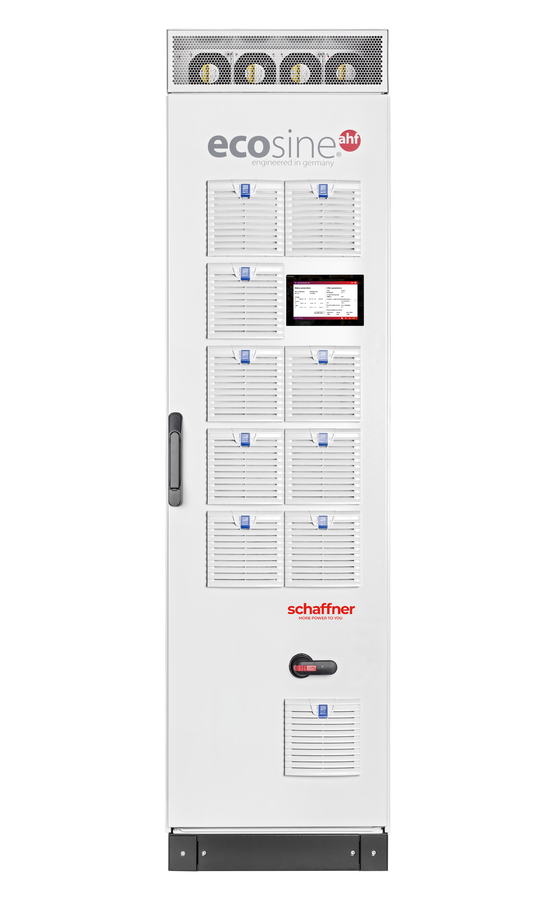

  • NEW - Monitor and control your ecosine active sync cabinet from the 7" color touchscreen HMI with a modern UI
  • Modular design with intelligent system approach offering tailored solutions for different applications and customers
  • 3-Level IGBT inverter topology for reduced power losses
  • Extended temperature range of modules up to 50°C
  • Ultra-fast and dynamic reactive power compensation (inductive and capacitive)
  • Load balancing and unloading of neutral wires
  • Flicker compensation (if caused by reactive power)
  • Compliance with IEEE 519, EN 61000-3-12 and other power quality standards
  • User-friendly, easy to install and maintain

Features and Benefits

Based on the broad knowledge and experience in terms of solutions and applications in power quality the Schaffner Group has developed active harmonic filters. The modular Ecosine Active Sync series offers fitted and economical solutions for the most demanding harmonic mitigation challenges with any kind of non-linear load involved. Ecosine Active Sync filter series provides a solution concept which is modular, compact and can be used as stand-alone modules or as system solution. The optional sync module offers a smart load Management of the filter usage and allows redundancy which guarantees a smart power quality solution in the era of Industry 4.0. The new 7" color touchscreen HMI offers a state of the art user experience when interacting with Ecosine Active Sync cabinet. Schaffner provides active harmonic filters with excellent performance in solving power quality problems focusing on customer needs and application demands for cleaner and smarter energy.

Typical Applications

Building technology
Automation industry
Data centers
Elevators
Cement industry
HVAC installations
Battery charges
Oil and gas exploration
Paper mills
Ship propulsion
Steel industry
Tunnel ventilation
UPS
Water/wastewater treatment
Welding equipment
Wind turbines
Machines and Automation

Typical electrical schematic

Ecosine Active Sync
