| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 6 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8532-6-6M0
SAP Number
816973
Product Family
RT series
Description

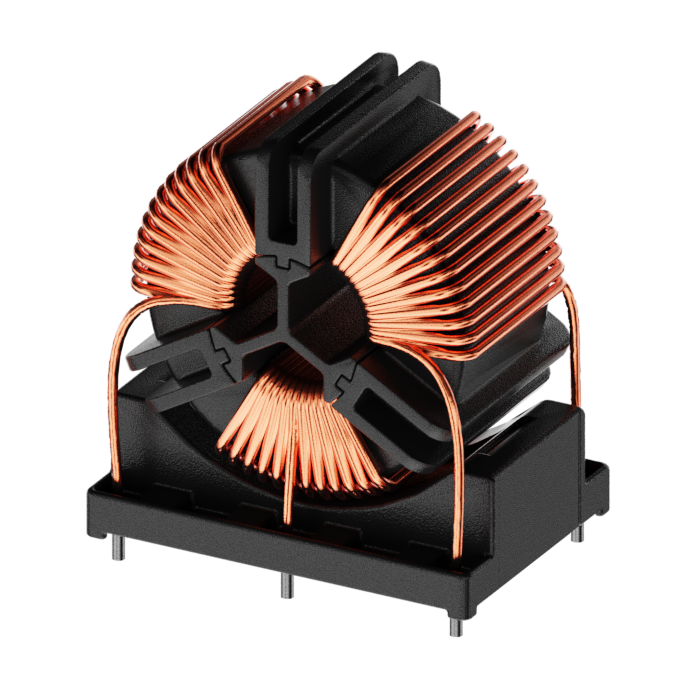

Vertical 6 A PCB three line Common Mode Choke with 6 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 6 |
| Mechanic | |
|---|---|
| Length () | 44 |
| Width () | 32 |
| Height () | 47 |
| Volume () | 66.176 |
| Frame size | 20 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | A=36 ± 0.5 A1=18 ± 0.5 |
| B (mm) | 24 ± 0.5 |
| D (mm) | ØD2= 1.4 ØD3=1.4 |
| H (mm) | 47 |
| L (mm) | L= 44 L1= 41 ± 0.5 L2= 27 ± 0.5 L3= 9 |
| W (mm) | W= 32 W1= 29 ± 0.5 |
| X (mm) | 2.5 |
| Y (mm) | 2.5 |
