| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 12 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8532-12-3M6
SAP Number
816976
Product Family
RT series
Description

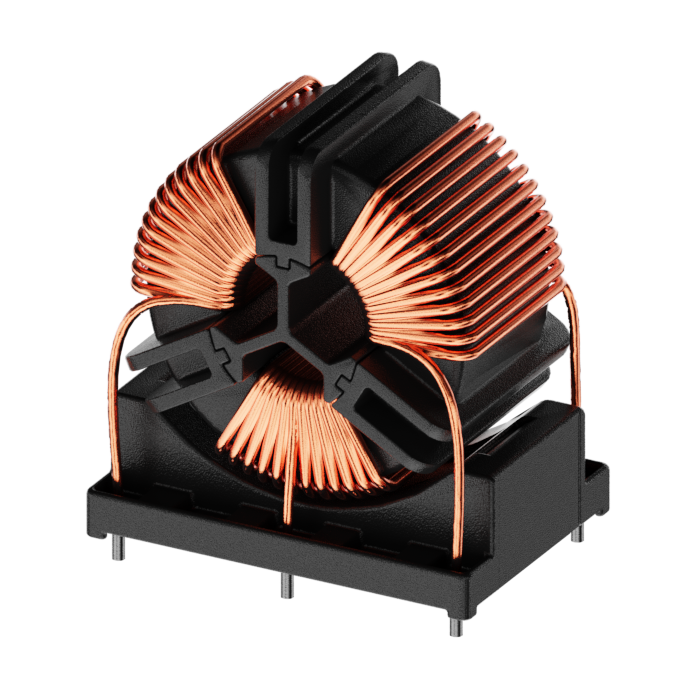

Vertical 12 A PCB three line Common Mode Choke with 3.6 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 3.6 |
| Mechanic | |
|---|---|
| Length () | 49 |
| Width () | 34 |
| Height () | 53 |
| Volume () | 88.298 |
| Frame size | 10 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | A=38 ± 0.5 A1=19 ± 0.5 |
| B (mm) | 24 ± 0.5 |
| D (mm) | ØD2= 1.7 ØD3=1.7 |
| H (mm) | 53 |
| L (mm) | L= 49 L1= 46 ± 0.5 L2= 28.5 ± 0.5 L3=9.5 |
| W (mm) | W= 34 W1= 31 ± 0.5 |
| X (mm) | 4 |
| Y (mm) | 3.5 |
