| General | |
|---|---|
| Voltage AC () | 300 |
| Voltage DC () | 425 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 6 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8522-6-10M0
SAP Number
816961
Product Family
RT series
Description

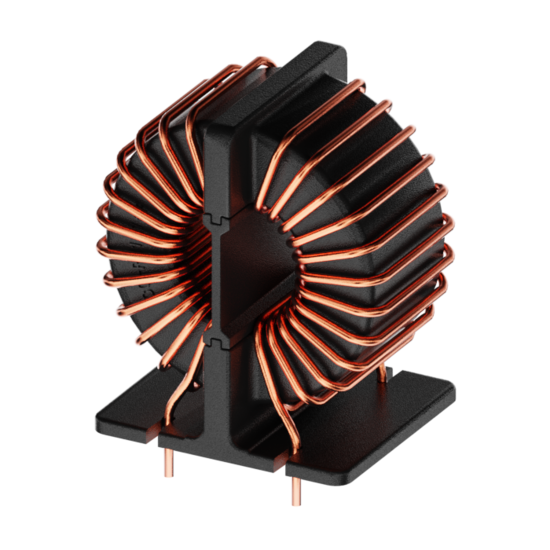

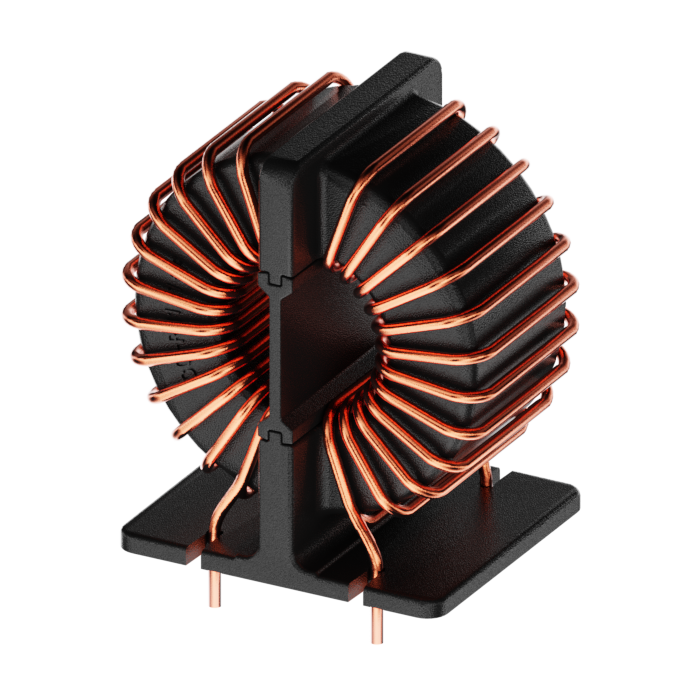

Vertical 6 A PCB two line Common Mode Choke with 10 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 10 |
| Mechanic | |
|---|---|
| Length () | 43 |
| Width () | 32 |
| Height () | 44 |
| Volume () | 60.544 |
| Frame size | 4 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 16 ± 0.5 |
| B (mm) | 20 |
| D (mm) | ØD2= 1.5 ØD3=2.5 |
| H (mm) | 44 |
| L (mm) | L= 43 L1= 32 ± 0.5 L2= 26 ± 0.5 |
| W (mm) | W= 32 W1= 27.8 ± 0.5 W2= 22 ± 0.5 |
| X (mm) | 3 |
| Y (mm) | 2.9 |
